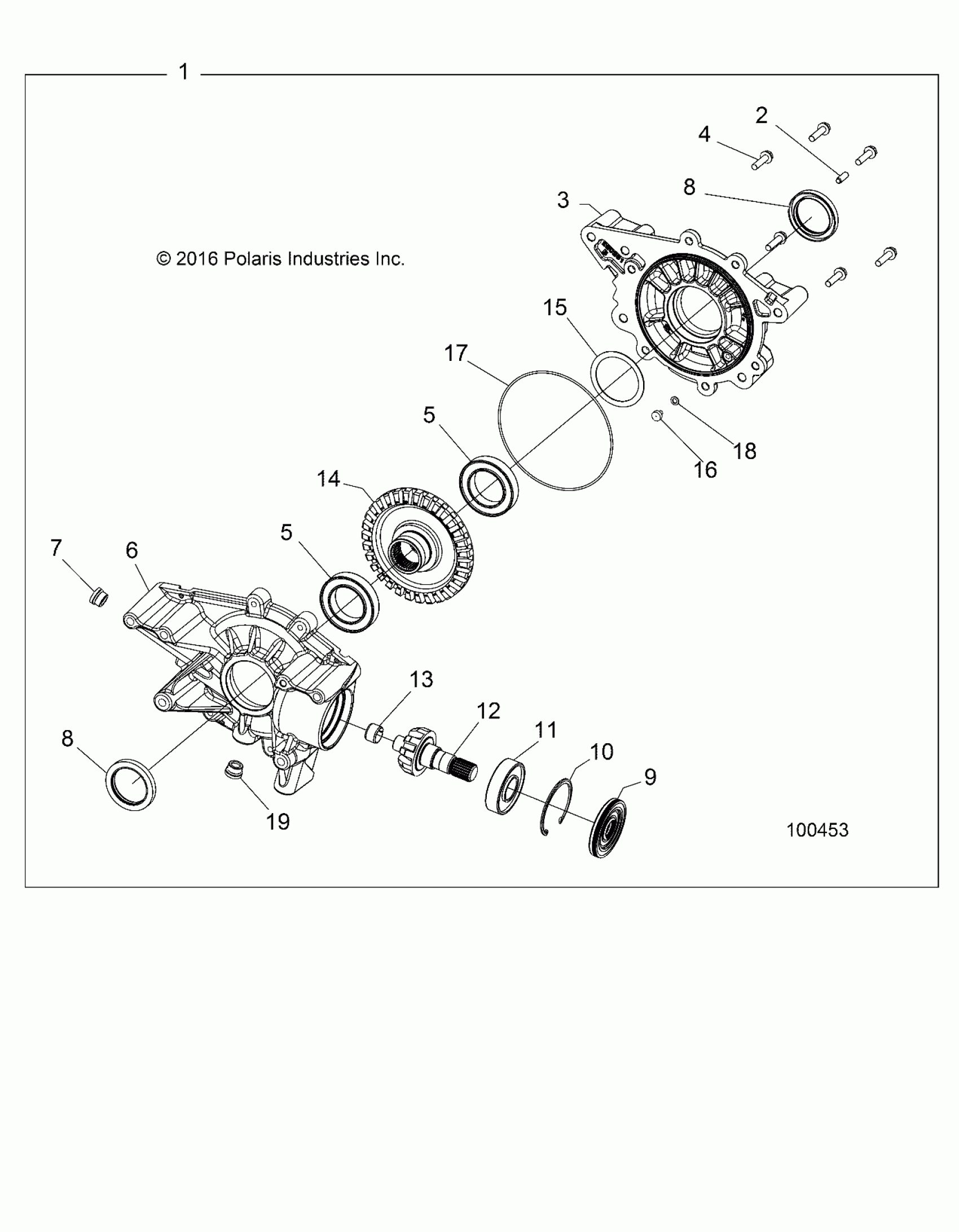

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 DRIVE TRAIN, REAR GEARCASE INTERNALS - A19S6E57B1 Diagram

#

Description
Price

1

ASM-GEARCASE,REAR [INCL. ALL]

1333620

$1,649.99

2

TUBE, VENT

3233524

$9.99

3

COVER, LH

3235952

$524.99

4

BOLT, FLANGE

3234114

$7.14

5

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

5

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

6

GEARCASE, RH

3235951

$729.99

7

PLUG

3233794

$15.37

8

SEAL, TRIPLE LIP

3233878

$32.37

8

SEAL, TRIPLE LIP

3233878

$32.37

9

SEAL, TRIPLE LIP

3235658

$66.49

10

RING, RETAINING

3234158

$23.81

11

BEARING, BALL

3233714

$31.75

12

Shaft, Pinion, 10T

3233881

$174.03

13

BEARING, PLAIN

3233577

$19.84

14

GEAR, 31T

3235966

$209.99

15

SHIM

3233581

Unavailable

16

THRUST BUTTON

3233582

$8.99

17

O-RING

3235967

$33.87

18

SHIM

3233583

Unavailable

19

PLUG, MAGNETIC

3234529

$15.37
