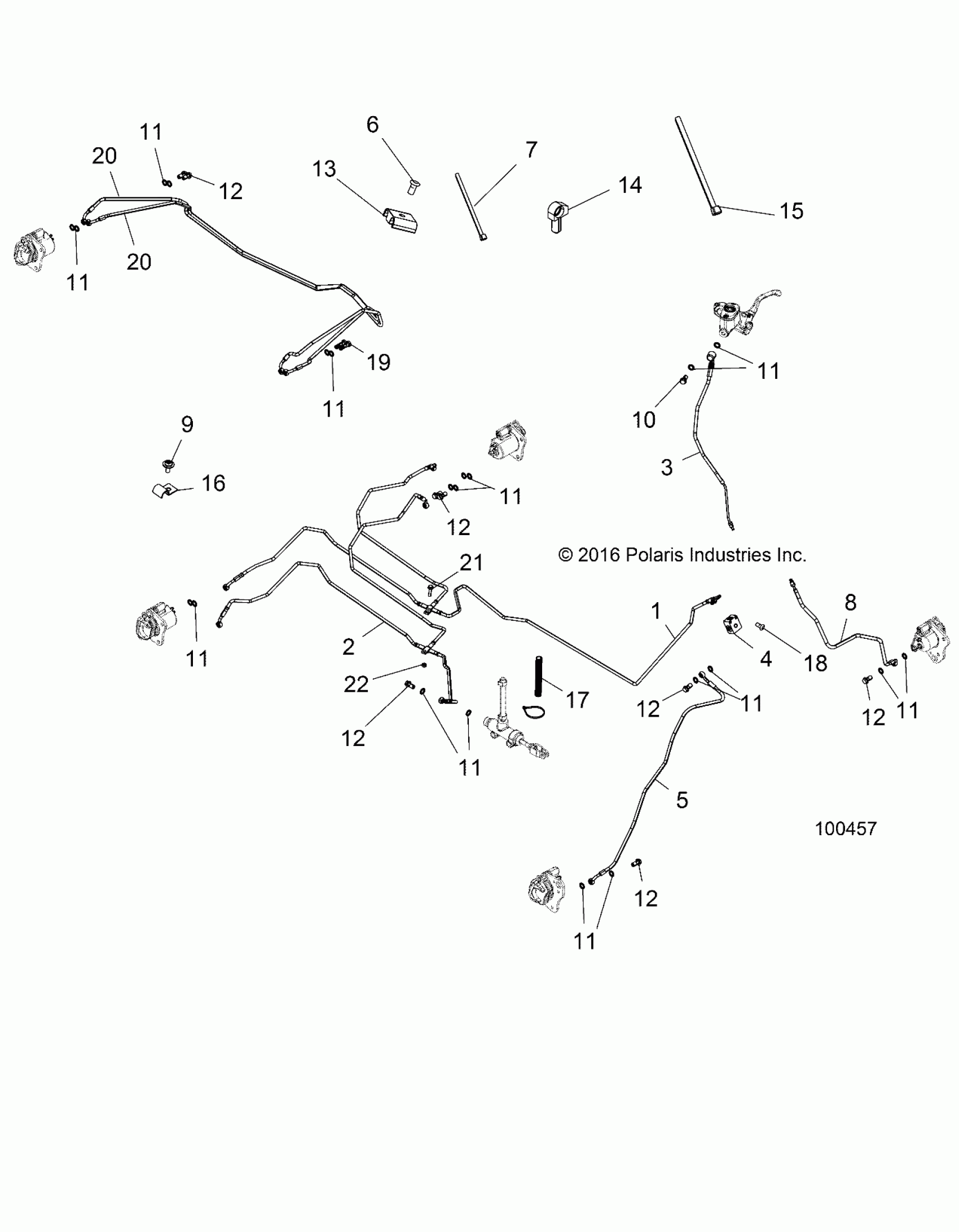

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 BRAKES, BRAKE LINES - A19S6E57B1 Diagram

#

Description
Price

1

LINE-BRK,AUX,T,90F,70B,70B,G2

1913041

$235.99

2

LINE-BRK,SV,T,20B,45B,45B,G2

1913034

$195.99

3

LINE-BRK,MCT,22,30B,CF1,0,JF

1913044

$63.99

4

FITTING-CROSS,ATV,BRAKE,BANJO

7052662

$39.99

5

LINE-BRK,FR,33,20SB,70B,190,G2

1913035

$67.99

6

Screw

7517756

$1.49

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

8

LINE-BRK,FL,26,OF,70B,G2

1913036

$75.99

9

SCREW

7512024

$4.79

10

BOLT, BANJO

1910499

$5.59

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

11

SEAL

5413212

$4.79

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

12

BOLT, BANJO [QTY 7 FROM 1/1/2019]

1910499

$5.59

12

SWITCH-BRAKE [FOR USE WITH FOOT MASTER CYLINDER 1913314 FROM 1/1/2019]

4017278

Unavailable

13

CLIP, RETAINING

7670126

$4.79

14

Clip

7670102

$2.39

15

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

16

CLIP, HALF

7081940

$3.99

17

TUBING, CONVOLUTED

8360052-25

Unavailable

18

Screw

7512084

$1.49

19

BOLT-BANJO,M10X1.0,30GRIP

1911009

$23.99

20

LINE-BRK,RR,58,70B,70B,345,G2

1913038

$75.99

20

LINE-BRK,RR,58,70B,70B,345,G2

1913038

$75.99

21

SCR-HXFL-1/4-20X1.125 GR5 ZY3

7515153

$3.99

22

NUT-1/4-20 HEX-Y

7542105

$3.99
