- SPORTSMAN 570 6X6 (R05) - A19S6E57B1
BODY, DUMP BOX - A19S6E57B1

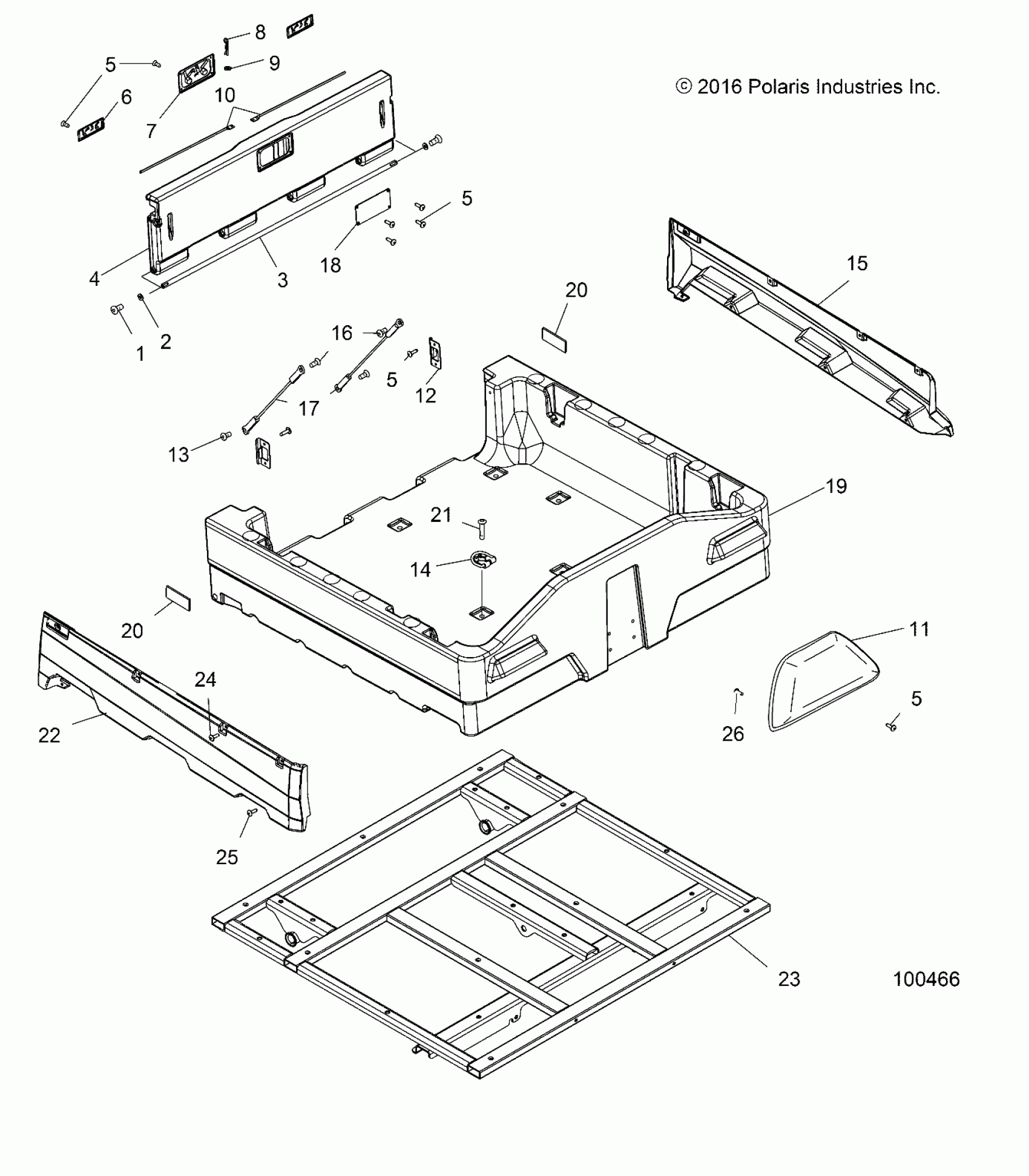

Polaris SPORTSMAN 570 6X6 (R05) - A19S6E57B1 BODY, DUMP BOX - A19S6E57B1 Diagram
#
Description
Price
1
SCREW
7515177
$3.19
2
WSHR-.275X.84X.075 BLK-M
7556386
$4.79
3
ROD, HINGE
5132358
$51.99
4
TAILGATE
5433388
$375.99
5
SCREW
7517561
$1.59
5
SCREW
7517561
$1.59
5
SCREW
7517561
$1.59
5
SCREW
7517561
$1.59
6
LATCH
5433656
$63.99
7
LATCH, PADDLE
5433655
$83.99
8
PIN, HITCH
7661644
$2.39
9
WASHER, RUBBER
7556143
$4.79
10
SHAFT, LATCH
5132373
$11.99
11
ASM-BACKREST,6X6,BLK [INCL. COVER]
2687058-070
$139.99
11
COVERING-BACKREST,6X6,BLK
2687059-070
$63.99
12
Bracket, Box Latch
5243304
$14.39
13
Screw
7517938
$1.49
14
Ring, Tie Down
7081101
$7.99
15
GUARD-MUD,BOX,LH,BLK
5452897-070
$96.79
16
SCREW
7517742
$5.59
17
Cable, Tailgate
7080881
$39.99
18
Cover, Tailgate, Black
5244068-067
$27.99
19
BOX-PLASTIC,6X6 [INCL. WARNING DECAL]
5453029
$749.75
20
DECAL-REFLECT.2.88,RED
7079925
$7.19
20
DECAL-REFLECT.2.88,RED
7079925
$7.19
21
SCREW
7517686
$1.59
22
GUARD-MUD,BOX,RH,BLK
5452898-070
$96.79
23
SUPPORT, BOX, BLACK
1016881-067
$564.99
24
SCR-1/4-20X5/8,TORX,TRUSS
7518905
$3.99
25
SCR-TX TRUSS-#14X3/4,HI/LO ZBK
7519045
$3.19
26
SCR-10-24X3/4 PH/TX/TRI-SEMS Y
7518196
$1.49
