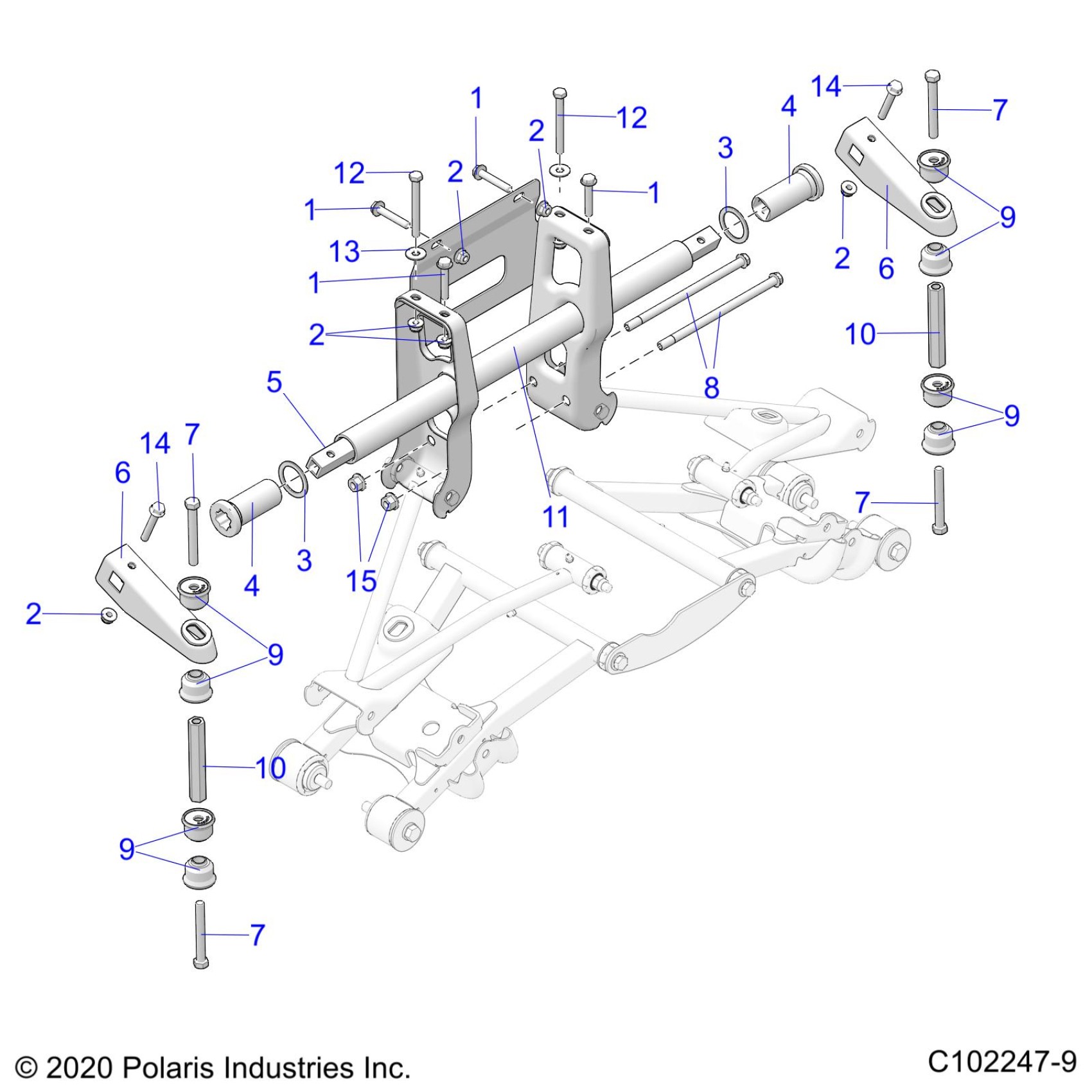

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 SUSPENSION, TORSION BAR - A21S6E57A1/3A1 (C102247-9) Diagram

#

Description
Price

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

5

BAR, STABILIZER TUBE, MATTE BLACK

5334114-329

$91.99

6

ARM, STABILIZER BAR, BLACK

1543119-067

$62.92

6

ARM, STABILIZER BAR, BLACK

1543119-067

$62.92

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

8

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

Support, Stabilizer, Black

1542677-067

$143.99

12

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

12

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

13

WASHER, FLAT, .344x.875x.063

7555734

$1.49

14

Screw, Flange

7518876

$3.99

14

Screw, Flange

7518876

$3.99

15

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39
