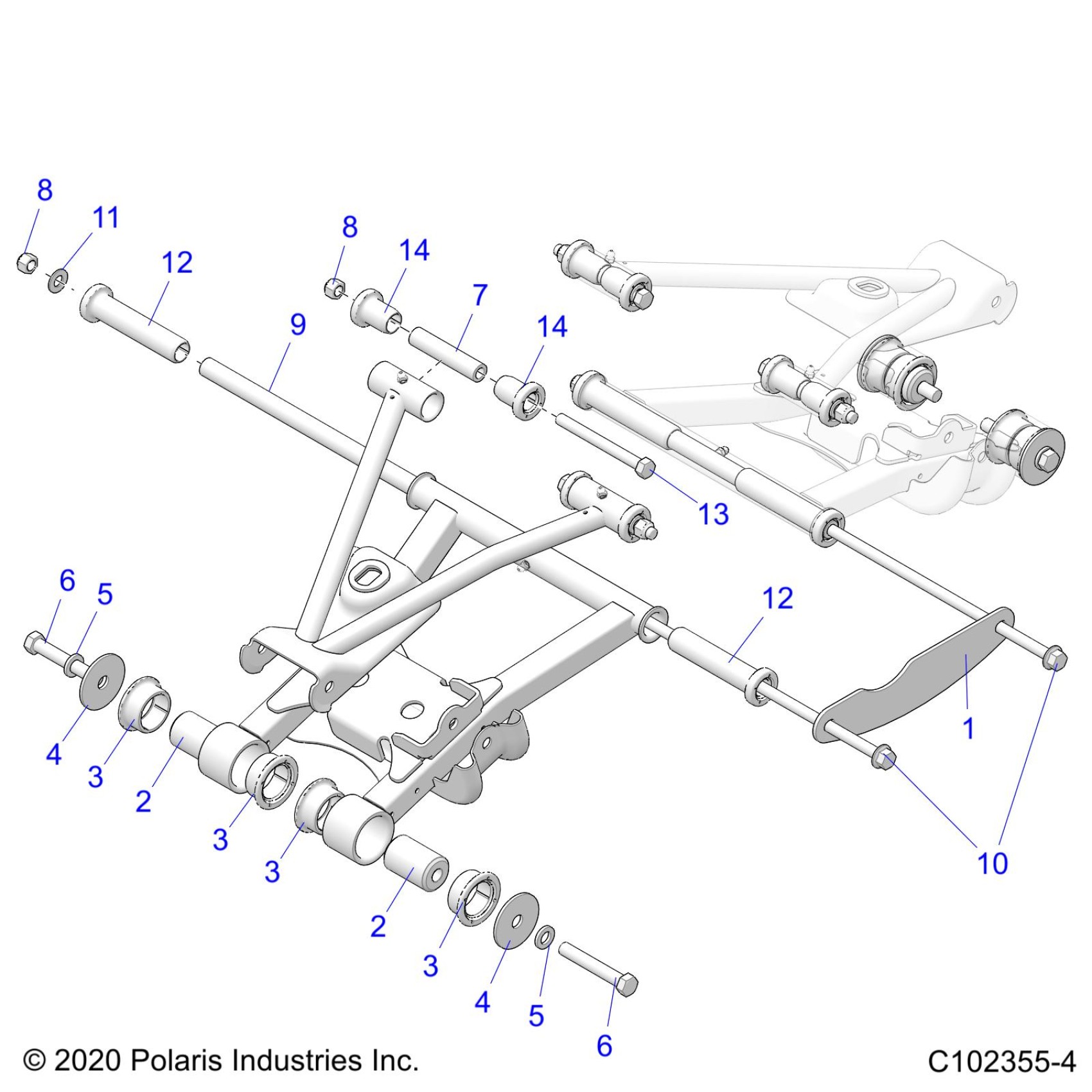

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 SUSPENSION, REAR CONTROL ARM MOUNTING - A21S6E57A1/3A1 (C102355-4) Diagram

Strap, Gearcase, Rear, Black

5252941-067

$31.99

BUSHING, BEARING CARRIER

5632291

$23.99

BUSHING, BEARING CARRIER

5632291

$23.99

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

WASHER, FLAT

7555740

$1.59

WASHER, FLAT

7555740

$1.59

WASHER-LOCK, 7/16-B

7552614

$1.59

WASHER-LOCK, 7/16-B

7552614

$1.59

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

Shaft, A-Arm., Short

5020826

$11.99

NUT-3/8-24 HEX LOC,GR8

7547344

$1.49

NUT-3/8-24 HEX LOC,GR8

7547344

$1.49

TUBE-PIVOT,.625ODX.385IDX11.12

5137562

$27.99

SCR-3/8-24X12.25 FLG HX GR8-Y

7519065

$19.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

BUSHING-A-ARM,LONG,102.36MM

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING-A-ARM,LONG,102.36MM

5436973

$5.19

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

Bushing, A-Arm., Short, Black

5438895

$2.38

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

Bushing, A-Arm., Short, Black

5438895

$2.38

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79
