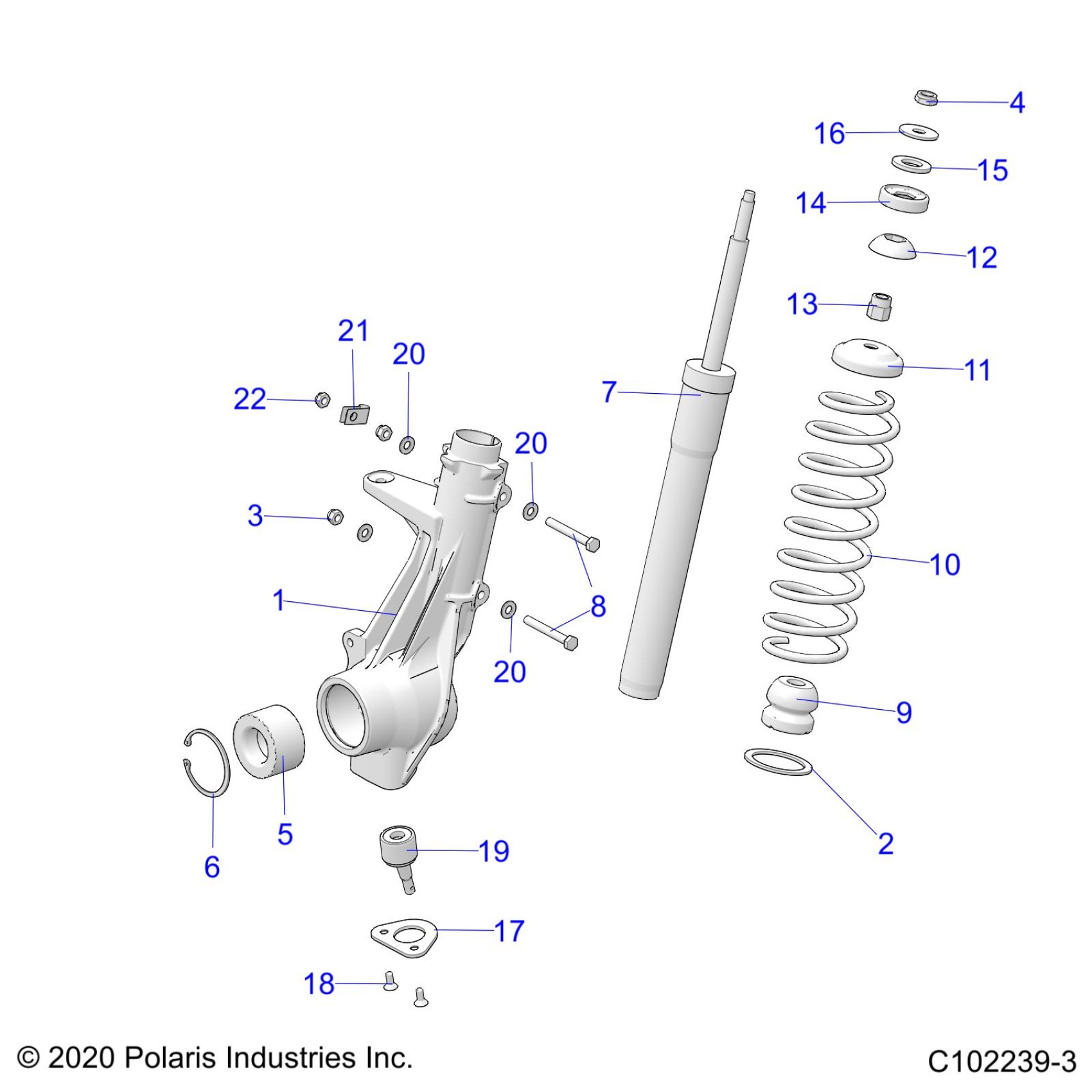

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 SUSPENSION, FRONT STRUT - A21S6E57A1/3A1 (C102239-3) Diagram

#

Description
Price

1

Asm., Hubstrut, LH

1822825

$303.99

1

Asm., Hubstrut, RH

1822826

$303.99

2

WASHER-2.06X2.62X.105-Y

5211115

$3.99

3

NUT-5/16-18 NYLOK-Y

7542324

$1.49

4

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

5

BEARING-WHEEL, 35X64X37MM

3514634

$39.99

5

BEARING-WHEEL,35X64X37MM HD [OPTIONAL]

3515088

$63.99

6

RING-RETAINING,2.500 INTERNAL

7710507

$2.39

7

STRUT-FRONT,18X30MM,184.7MM LT

7041762

$123.99

8

BOLT(10)

7512312

$1.49

9

BUMPER-MCU,17.8MM ID

5412665

$6.39

10

SPRING, COMPRESSION, BLACK

7043247-067

$91.99

11

RETAINER-SPRING,STRUT

5243364

$19.99

12

PIVOT-BALL,BOTTOM,DELRIN

5432871

$10.39

13

SPACER-1/2-20,STRUT

5132062

$19.99

14

PIVOT-BALL,TOP,DELRIN

5432872

$10.39

15

SPACER-RUBBER

5810291

$3.99

16

WSHR-.500X1.50-12GA-Y

7555749

$1.49

17

BRACKET-BALL JOINT

5211121

$31.99

18

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

19

BALL-JOINT,GREASELESS,STRUT

7061158

$75.99

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

21

CLAMP-CABLE

7080367

$2.39

22

NUT-5/16-18,NYLOC,THIN-Y

7542344

$3.99
