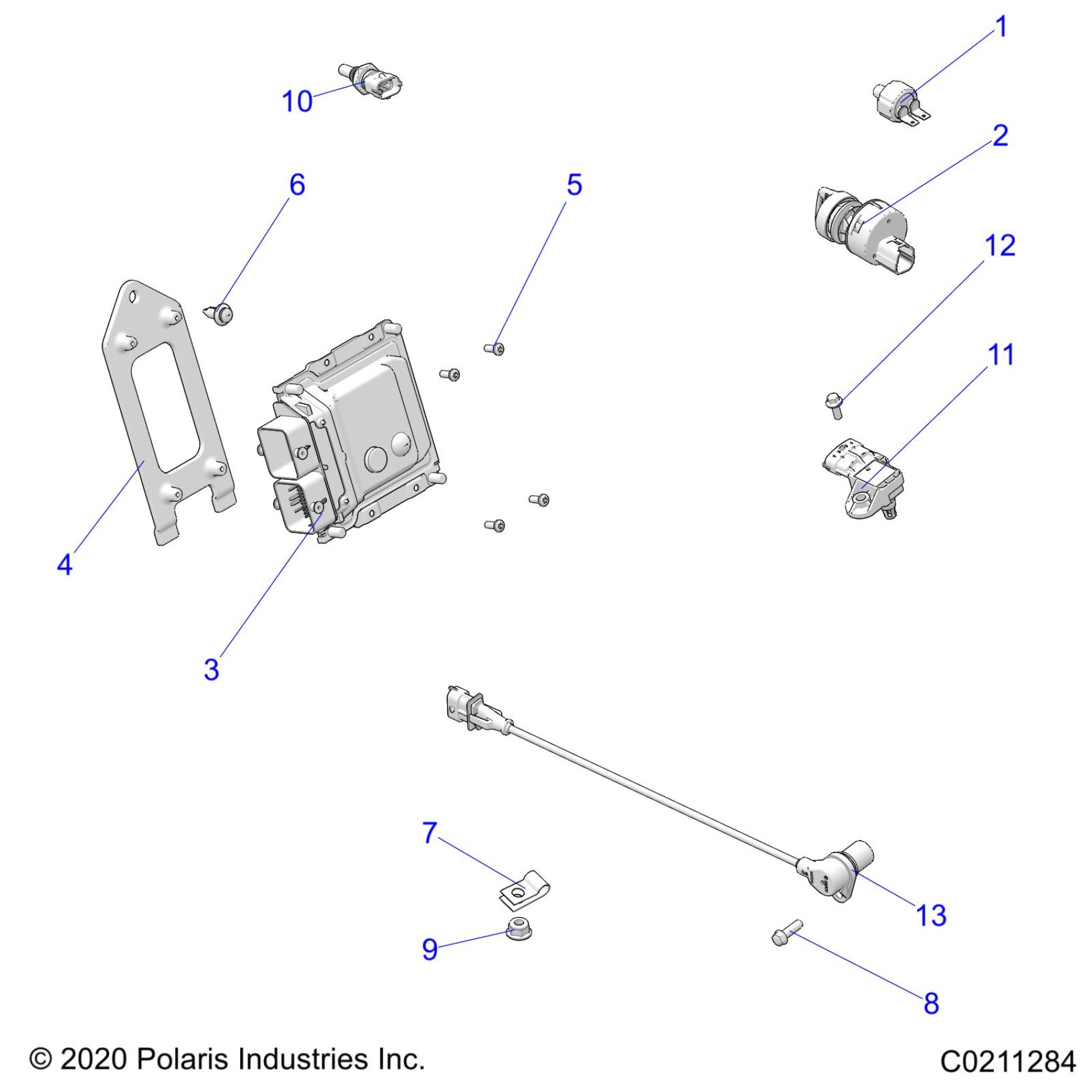

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 ELECTRICAL, SWITCHES, SENSORS and ECM - A21S6E57A1/3A1 (C0211284) Diagram

#

Description

Price

1

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE LIGHTS]

4015069

$111.10

2

SWITCH, KEY, 3 POSITION, SEALED �

4015033

Unavailable

3

ECU, BASE, M17 �

4012838

$440.69

4

MNT-ECM,REAR,BLK �

5438708-070

$10.39

5

SCR-#10X1/2-HI/LO-PN-T25, TRX-M �

7519091

$3.19

6

RIVET-TUFLOK,.315-.325X.787 �

7661855

$1.49

7

CLAMP-CABLE �

7080367

$2.39

8

SCREW-HXFL-M6X1.0X20 8.8 ZY3 �

7518576

$3.19

9

NUT-5/16-18 HX FLG NL-Y �

7542343

$4.79

10

SENSOR-THERMISTER �

4010644

$87.13

11

SENSOR-TMAP DSS3-TF �

2411528

$93.08

12

SCR-HXFL-M5X0.8X14 18-8 �

7516603

$10.39

13

SENSOR, CRANK POSITION �

2411719

$101.17
