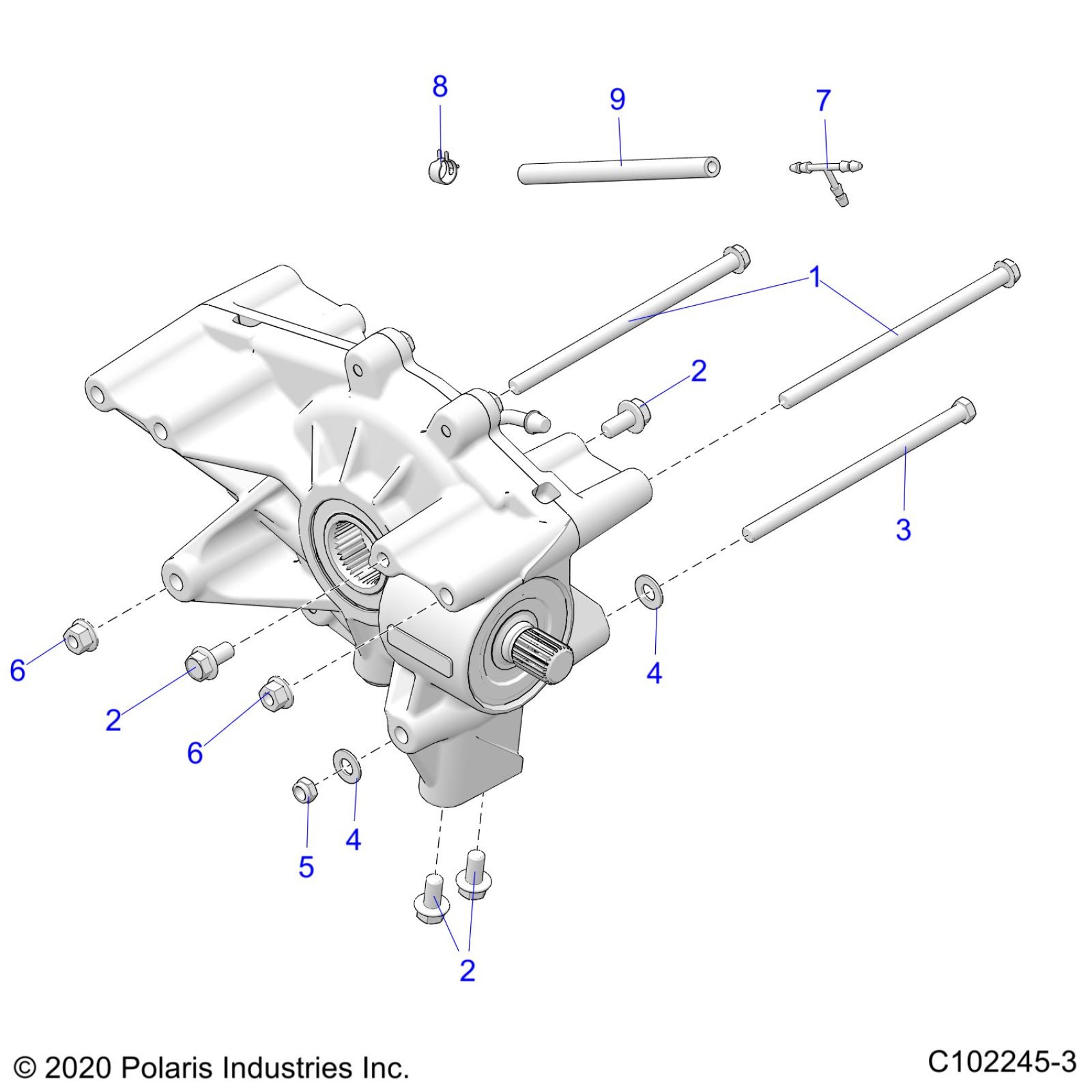

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 DRIVE TRAIN, REAR GEARCASE MOUNTING - A21S6E57A1/3A1 (C102245-3) Diagram

#

Description

Price

1

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

3

Screw

7517878

$10.39

4

WSHR-FL .406X.812X.065-Y

7555806

$1.49

4

WSHR-FL .406X.812X.065-Y

7555806

$1.49

5

NUT-3/8-16,FLEXLOCK,THIN-Y

7547008

$6.39

6

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

6

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

7

FITTING-TEE, 1/4-1/4-BRB-NY

7052075

$9.59

8

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

9

FUEL LINE 1/4" SAE #30R7, 100CM

8450040-100

Unavailable
