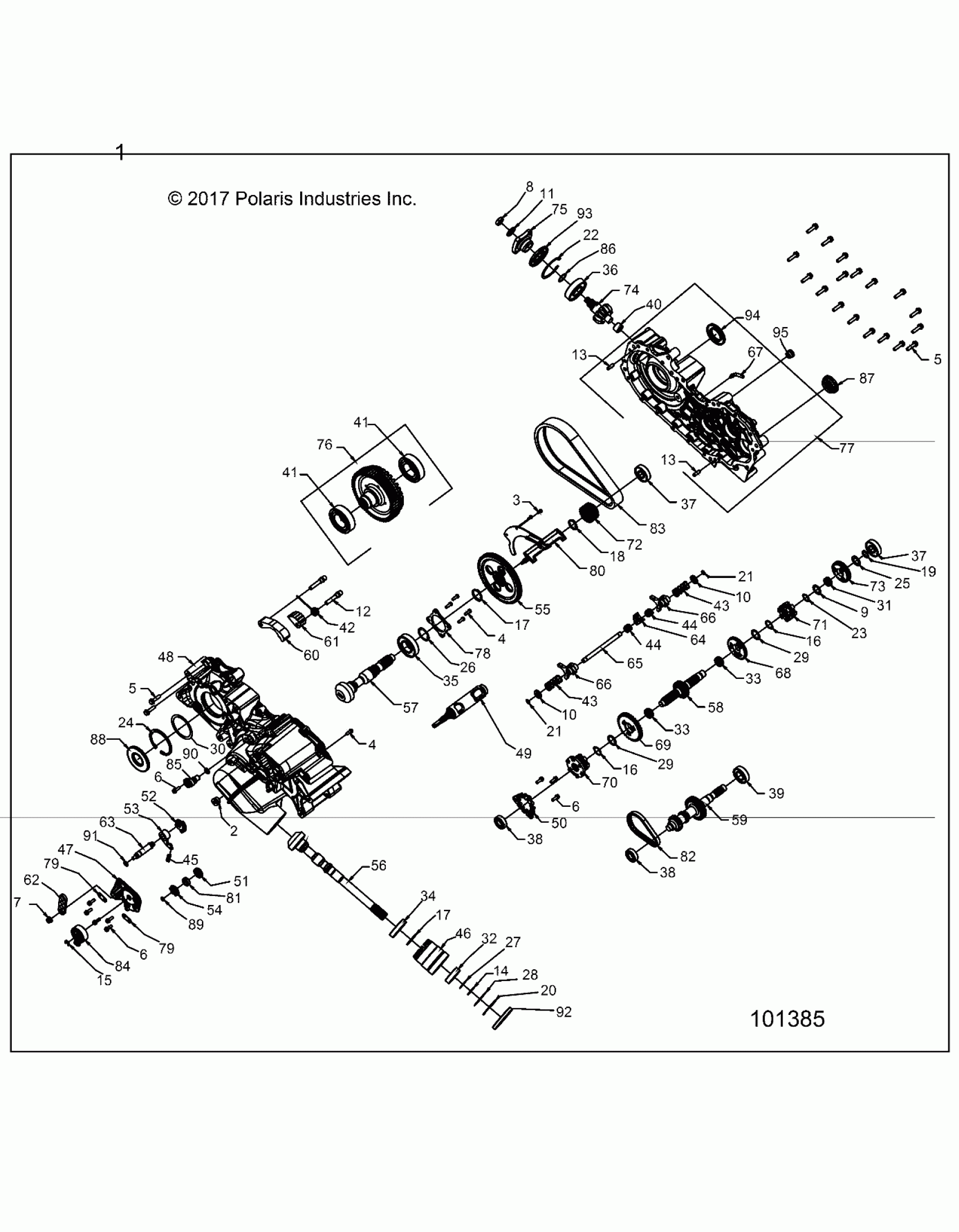

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 DRIVE TRAIN, MAIN GEARCASE - A21S6E57A1/3A1 (101385) Diagram

#

Description
Price

1

ASM-TRANSMISSION,PDS,6X6 [INCL. ALL]

1333989

$4,899.99

2

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

$15.37

3

SCREW, TAPPING TORX, PH 11902 X.50

3233749

$5.65

4

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

4

SCREW, TORX TRUSS HD 43834 X 0.75

3234086

$5.56

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.14

5

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.14

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

6

SCREW, TAPPING HEX, WASHER HD 1/4-20 X 0.75

3234247

$5.56

7

NUT, LOCK, HEX FLANGE NYLON 5/16-24

3233961

$3.32

8

NUT, HEX M16 X 2.0

3234776

$10.32

9

WASHER, 1.250 X 0.876 X 0.05

3233855

$10.32

10

WASHER-CUP

3234091

$9.52

10

WASHER-CUP

3234091

$9.52

11

CUP WASHER, LOCKING 17 X 30

3234777

$43.65

12

PIN, TENSIONER

3233432

$7.14

13

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

13

PIN, DOWEL 5/16 X 1.0

3234244

$7.27

14

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

15

RING, RETAINING BASIC EXTERNAL

3233834

$10.32

16

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

16

RING, RETAINING BASIC EXT 0.938

3233306

$4.76

17

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

17

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

18

RING RETAINING, IRR 7200-118

3233699

$7.27

19

RING, RETAINING BASIC, EXTERNAL, .787 SHAFT

3234067

$7.94

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

22

RING, RETAINING BEVELED INTERNAL 2.835

3234158

$23.81

23

RING, RETAINING, BASIC EXTERNAL DIA 0.84

3234336

$5.56

24

RING, RETAINING INTERNAL DHO-85 STZD

3235849

$38.71

25

WASHER THRUST, 1.270 X 0.793 X 0.065

3233176

$9.52

26

SHIM, 1.700 X 1.385

3234271

$24.27

27

SHIM, 1.180 OD X 0.995 ID

3234272

$36.41

28

SHIM, 2.040 OD X 1.63 ID

3234273

$13.75

29

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

29

WASHER, THRUST 1.300 X 0.995 X 0.065

3234248

$9.52

30

SHIM 2.750 X 3.3125 X .050

3235850

$134.99

31

BEARING, NEEDLE SPLIT CAGE 22 X 26 X 10

3233009

$39.68

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

33

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

33

BEARING, NEEDLE 25 X 29 X 10

3233103

$31.75

34

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING, BALL 6306 STD 30X72X19

3233714

$31.75

37

BEARING BALL,6304STD 20X52X15

3234651

$15.87

37

BEARING BALL,6304STD 20X52X15

3234651

$15.87

38

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

38

BEARING, BALL 6203 17 X 40 X 12

3234274

$27.78

39

BEARING,BALL,6205R SH2 C3 25X52X15

3235585

$38.08

40

BEARING, NEEDLE, DRAWN SHELL .75 X 1.0 X 0.625

3234799

$15.87

41

BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3

3235851

$119.99

41

BEARING, BALL DOUBLE ROW 45 X 85 X 23 4209 C3

3235851

$119.99

42

SPRING, TORSION

3233431

$24.27

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

44

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

44

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$28.32

45

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$13.75

46

TUBE, SNORKEL MACHINED

3234278

$101.17

47

COVER, SECTOR GEARS, MACHINED

3234188

$113.32

48

CASE, RH MACH

3235852

$724.99

49

DRUM, SHIFT MACH

3234360

$182.13

50

Plate, Park, 12 Face

3233915

$40.46

51

GEAR, SECTOR, 16T

3233839

$36.41

52

GEAR-SECTOR,31T

3233832

$36.41

53

Pawl, Detent

3233829

$36.41

54

Star, Detent

3233909

$28.32

55

GEAR OUTPUT 91T, HRC

3234062

$267.13

56

GEAR, 13T SNORKEL,

3234262

$409.99

57

PINION, CENTER DRIVE, 13T

3234263

$532.52

58

SHAFT, REVERSE, 26T

3234280

$263.08

59

SHAFT, 39T INPUT HELICAL

3235526

$299.99

60

SHOE, CHAIN TENSIONER

3233433

$32.37

61

CAM, CHAIN, TENSIONER

3233434

$13.75

62

BELLCRANK, .510 HOLE, 92 ~

3234584

$28.32

63

SHAFT, SHIFT

3233831

$60.70

64

COLLAR-SHIFT

3234073

$31.75

65

RAIL, SHIFT SHAFT

3234079

$28.32

66

FORK, SHIFT

3234077

$182.13

66

FORK, SHIFT

3234077

$182.13

67

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$10.51

68

SPROCKET, 38T, 6 FACE

3234290

$153.79

69

GEAR, 33T, 6 FACE

3234291

$174.03

70

ENGAGEMENT DOG, 6-FACE L/P

3234257

$153.79

71

DOG, ENGAGEMENT, 6 FACE

3234258

$97.13

72

SPROCKET, 19T, 1.25"

3234441

$137.60

73

GEAR, HELICAL-35T

3236032

$155.54

74

SHAFT-PINION,10T,STRAIGHTBEVEL

3235855

$479.98

75

COUPLER

3235925

$109.27

76

SUBASSEMBLY, SHAFT - 59T SPROCKET 31T BEVEL

3235858

$669.99

77

SUBASSEMBLY, LH COVER 6X6

3236110

$774.99

78

COVER, BEARING, CENTER DRIVE

3234063

$32.37

79

BRACKET, WIRE HARNESS

3235350

$8.89

79

BRACKET, WIRE HARNESS

3235350

$8.89

80

DEFLECTOR, OIL

3234061

$28.32

81

Disc, Lockout

3235243

$9.52

82

SILENT CHAIN, .25P X 0.4 W X 50L

3234264

$118.74

83

CHAIN SILENT 3/8" X 1.25" X 86P

3234442

$348.08

84

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$117.37

85

SENSOR-SPEED,TRANS

4013908

$109.27

86

O-RING 2-023 NITRILE

3234785

$9.70

87

SEAL, TRIPLE LIP VITON HELIX 30 X 47

3234851

$42.74

88

SEAL, TRIPLE LIP 40 X 85 X 7

3235856

$48.40

89

O-RING, 2-012

3233076

$6.46

90

O-RING

3234302

$7.27

91

O-RING, -014

3233869

$5.65

92

SEAL, TRIPLE LIP VITON 25 X 80 X 10

3234113

$36.41

93

SEAL, TRIPLE LIP, 40 X 72 X 7

3235924

$48.40

94

SEAL, TRIPLE LIP, NITRILE 1.969 X 2.750 X .315

3234300

$32.37

95

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.37
