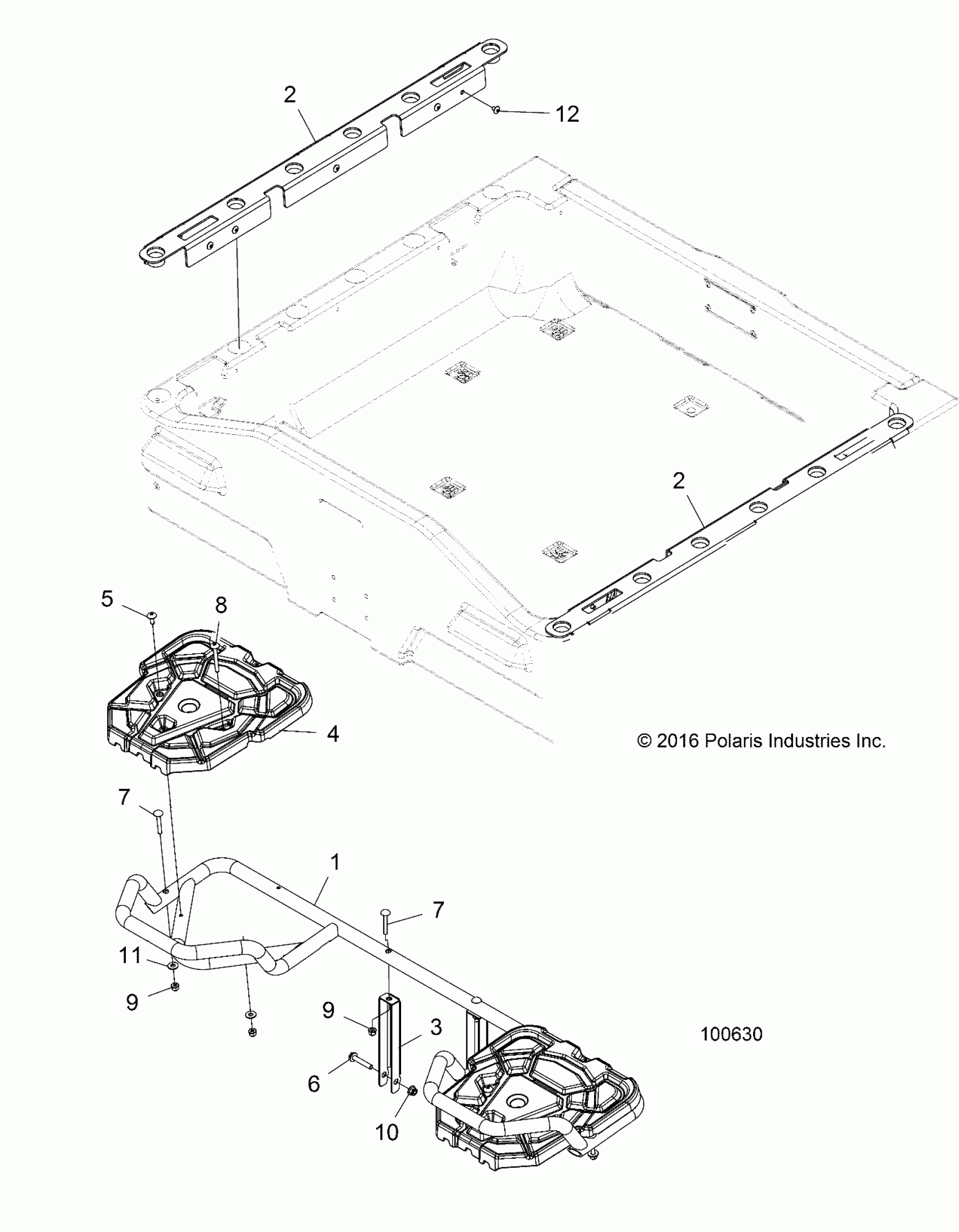

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 BODY, REAR RACK and BOX SIDE RAILS - A21S6E57A1/3A1 (100630) Diagram

#

Description

Price

1

WELD-RACK,REAR,6X6,M.BLK

1021842-458

$229.99

2

WELD-BOX SIDE RAIL,L&R,6X6,BLK

1022329-458

$111.33

2

WELD-BOX SIDE RAIL,L&R,6X6,BLK

1022329-458

$111.33

3

BRKT-SUPPORT,REAR RACK,BLK

5259548-067

$40.46

4

COVER-RACK,REAR,6X6,BLK

5452618-070

$48.40

5

SCR-1/4-20X.75,TR/TX-M

7518280

$1.19

6

SCREW, HXFL-5/16-18X0.75 GR5 ZY3

7518341

$4.76

7

SCR-1/4-20X1.75 TRTX GR5-B

7518632

$3.97

7

SCR-1/4-20X1.75 TRTX GR5-B

7518632

$3.97

8

SCR-1/4-20 X 2.375,TR/TX-M

7520042

$2.38

9

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

9

NUT-1/4-20 NYLOC FLANGED-Y

7542153

$1.59

10

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

11

WASHER-.312 X .734 X .065-Z

7558302

$1.59

12

SCR-1/4-20X5/8,TORX,TRUSS

7518905

$3.97
