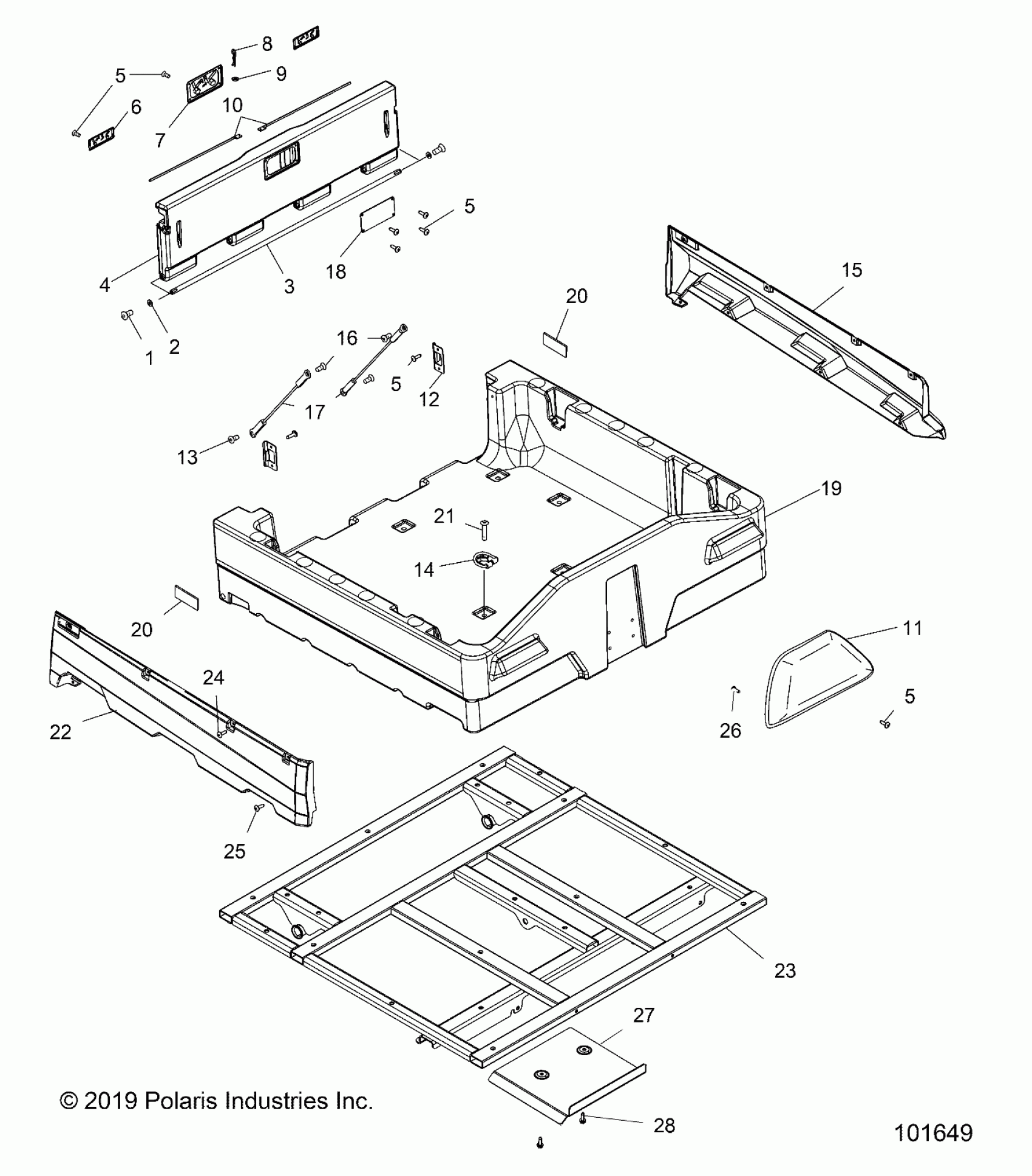

Polaris SPORTSMAN 570 6X6 (R02) - A21S6E57A1/3A1 BODY, DUMP BOX - A21S6E57A1/3A1 (101649) Diagram

#

Description
Price

1

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.17

2

WASHER-.270X.84X.075 BLK-M

7556386

$4.76

3

ROD,HINGE,TAILGATE 6X6

5132358

$52.60

4

TAILGATE,PLASTIC,6X6

5433388

$404.75

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

6

LATCH,FLSHBLT,TLGATE,BLK

5433656

$64.75

7

Latch, Paddle, Tailgate

5433655

$83.33

8

PIN-HITCH, 3/32-Y

7661644

$2.38

9

Washer, Rubber w/Metal Back

7556143

$4.76

10

SHFT,TLGATELTCH,5/16,ZINC

5132373

$12.13

11

ASM-BACKREST,6X6,BLK [INCL. COVER]

2688363-070

$161.89

11

COVERING-BACKREST,6X6,BLK

2688364-070

$64.99

12

Bracket, Box Latch

5243304

$14.56

13

Screw

7517938

$1.19

14

Ring, Tie Down

7081101

$7.94

15

GUARD-MUD,BOX,LH,BLK

5452897-070

$109.99

16

SCREW1/4-20X3/4PA PN,LK,G2-Y

7517742

$5.56

17

Cable, Tailgate

7080881

$40.46

18

Cover, Tailgate, Black

5244068-067

$39.99

19

BOX-PLASTIC,6X6 [INCL. WARNING DECAL]

5453029

$1,049.99

20

DECAL-REFLECT.2.88,RED

7079925

$8.08

20

DECAL-REFLECT.2.88,RED

7079925

$8.08

21

Screw (If built before 7/23/01)

7517686

$1.59

22

GUARD-MUD,BOX,RH,BLK

5452898-070

$109.99

23

WELD-BOX SUPPORT,BLK

1026148-067

$594.99

24

SCR-1/4-20X5/8,TORX,TRUSS

7518905

$3.97

25

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

27

SHIELD-EXHAUST,BOX,6X6 NRMM

5268794

$59.99

28

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$1.19
