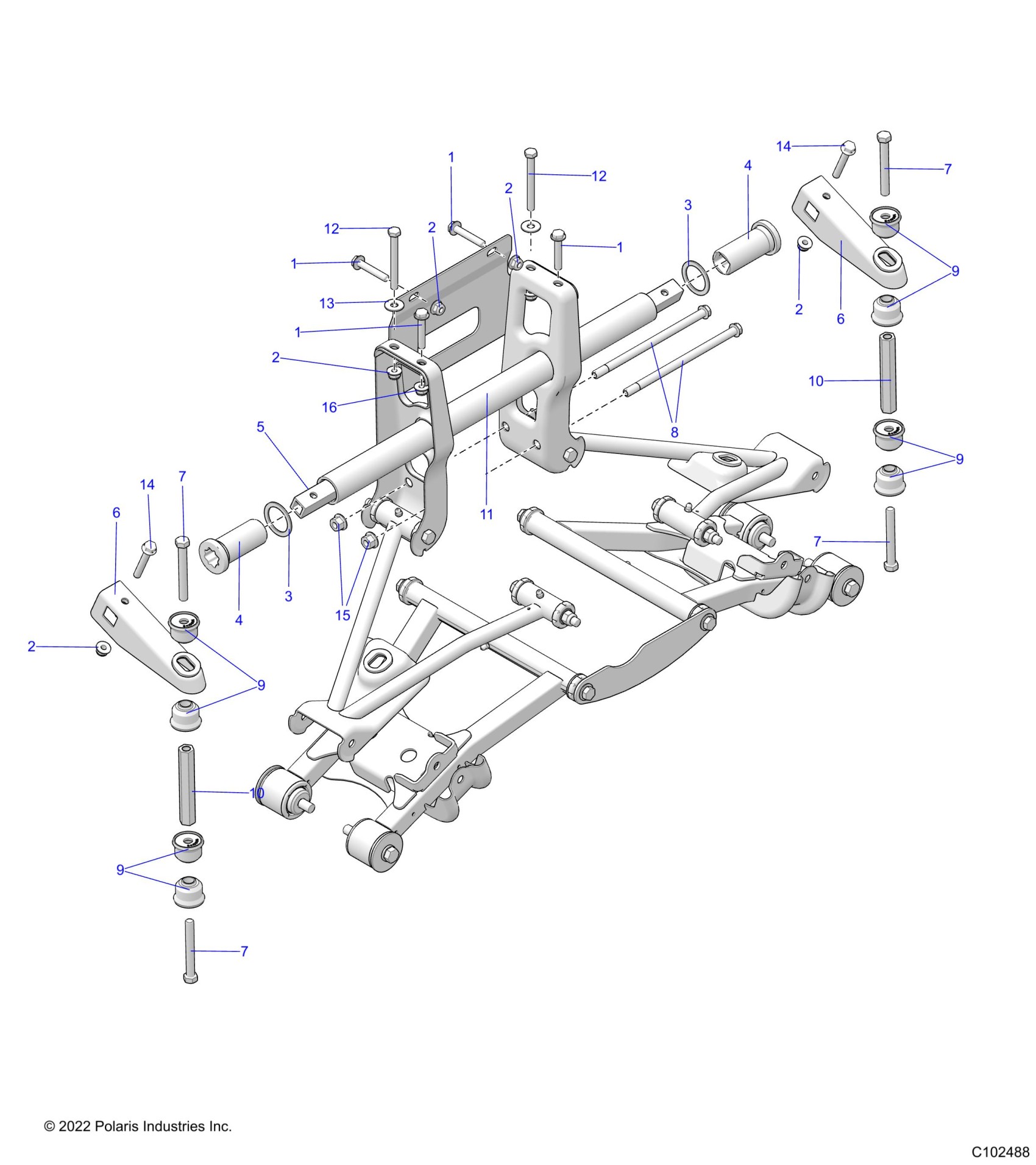

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 SUSPENSION, TORSION BAR - A24S6E57A1 (C102488) Diagram

#

Description
Price

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 [TO 6/1/2023]

7518341

$4.79

1

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 [TO 6/1/2023]

7518341

$4.79

1

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 [TO 6/1/2023]

7518341

$4.79

1

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

1

SCREW, HXFL-5/16-18X0.75 GR5 ZY3 [TO 6/1/2023]

7518341

$4.79

1

SCR-HXFL-M8X1.25X45 10.9 ZFB [FRM 6/1/2023]

7521332-45

$3.19

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

5

BAR, STABILIZER TUBE, MATTE BLACK

5334114-329

$91.99

6

ARM, STABILIZER BAR, MATTE BLACK

1543119-458

$31.99

6

ARM, STABILIZER BAR, MATTE BLACK

1543119-458

$31.99

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

7

SCREW(10)

7517231

$7.19

8

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

9

BUSHING-LNKG TORSIONBAR,DURO80

5415885

$3.19

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

SUPPORT, STABILIZER, M. BLACK

1542677-458

$79.19

12

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

12

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

13

WASHER, FLAT, .344x.875x.063

7555734

$1.49

14

Screw, Flange

7518876

$3.99

14

Screw, Flange

7518876

$3.99

15

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

16

NUT-M8X1.25C10,HX,NYL,DIN982,Z

7547405

$1.49
