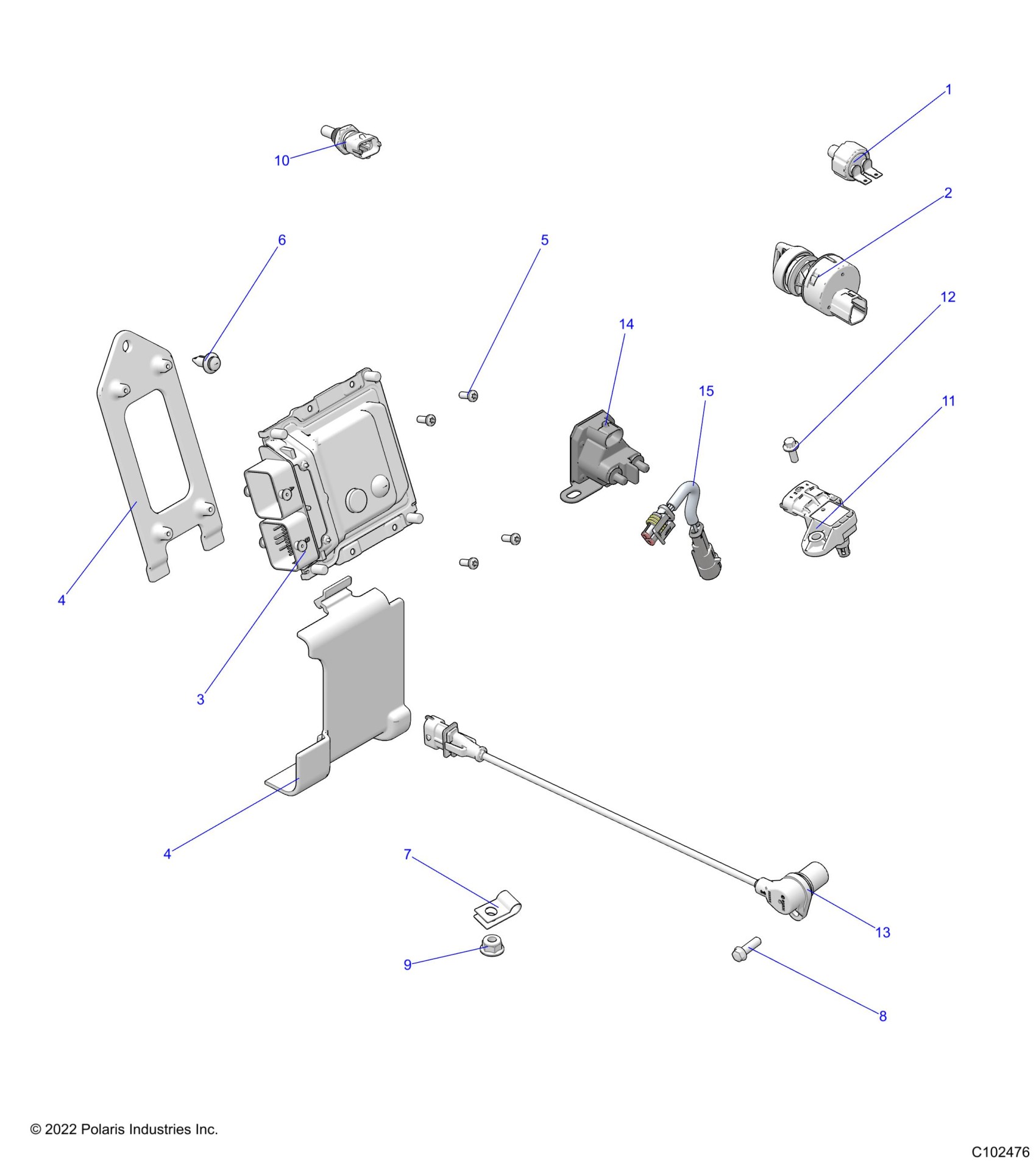

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 ELECTRICAL, SWITCHES, SENSORS and ECM - A24S6E57A1 (C102476) Diagram

SWITCH-BRK,1/8"-27 NPTF,SEALED [BRAKE LIGHTS]

4110164

Unavailable

SWITCH, KEY, 3 POSITION, SEALED

4015033

Unavailable

ECU, BASE, M17 [DEALER INSTALL REQUIRED]

4012838

$440.69

MNT-ECM,REAR,BLK

5438708-070

$10.39

MNT-ECM,REAR,BLK

5438708-070

$10.39

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

CLAMP-CABLE

7080367

$2.39

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

SENSOR-THERMISTER

4010644

$87.13

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-HXFL-M5X0.8X14 18-8

7516603

$10.39

SENSOR, CRANK POSITION

2411719

$101.17

SOLENOID-STARTER,SEALED

4014655

$49.99

HARN-JUMPER,SOL

2417199

$27.99
