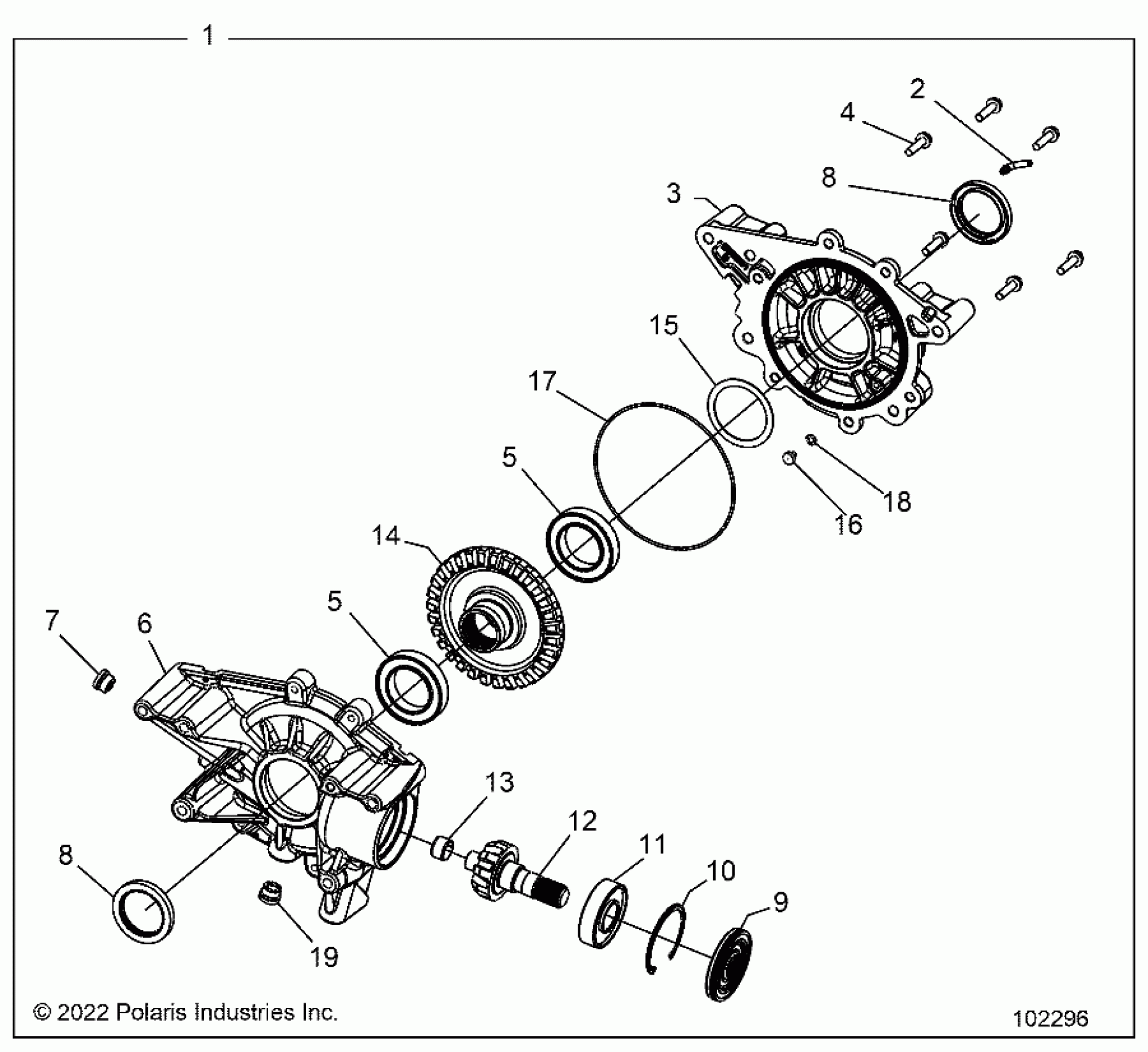

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 DRIVE TRAIN, REAR GEARCASE INTERNALS - A24S6E57A1 (102296) Diagram

ASM-GEARCASE,REAR [INCL. ALL]

1337108

Unavailable

TUBE, VENT 90 -1/4 INCH HOSE

3234230

$9.59

COVER, MACH

3239471

$410.01

SCREW, TAPPING HEX, WASHER HD 5/16-18 X 1.25

3234114

$7.19

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

GEARCASE, MACH

3239472

$647.89

PLUG, 3/4-16, 41775 INTERNAL HEX

3233794

$15.19

SEAL, TRIPLE LIP 40 X 70 X 7

3233878

$32.37

SEAL, TRIPLE LIP 40 X 70 X 7

3233878

$32.37

SEAL, TRIPLE LIP, VITON, 25 X 80 X 10

3235658

$55.99

RING, RETAINING BEVELED INTERNAL 2.835

3234158

$23.99

BEARING, BALL 6306 STD 30X72X19

3233714

$31.99

Shaft, Pinion, 10T

3233881

$171.99

BEARING, PLAIN

3233577

$19.99

GEAR, 31T

3235966

$159.99

SHIM 3.1 X 2.5

3233581

Unavailable

THRUST BUTTON

3233582

$7.91

O-RING

3235967

$27.99

SHIM .450 X .265

3233583

Unavailable

MAGNETIC PLUG, 3/4-16 INTERNAL HEX

3234529

Unavailable
