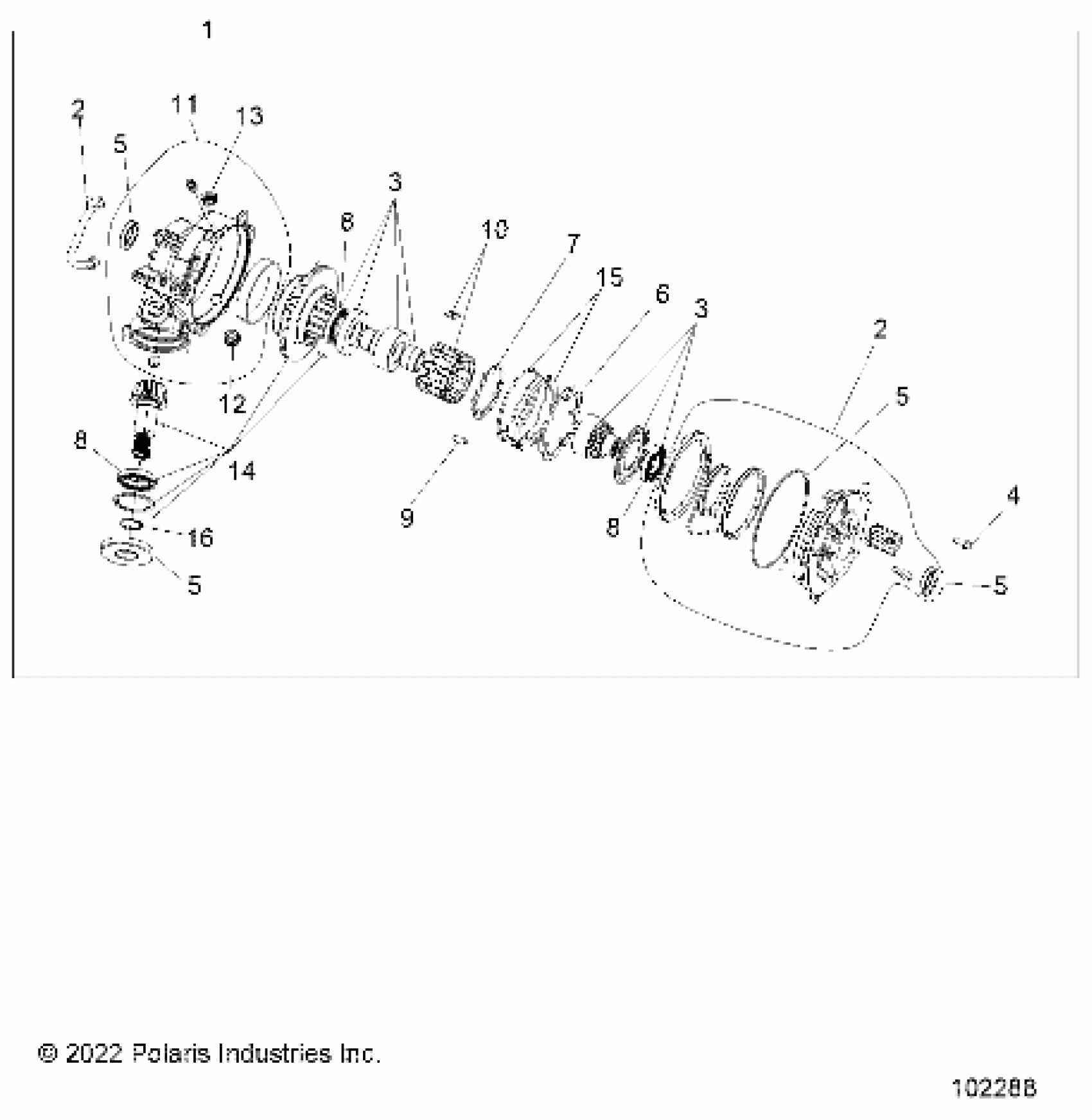

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 DRIVE TRAIN, FRONT GEARCASE - A24S6E57A1 (102288) Diagram

#

Description
Price

1

ASM., GEARCASE, FRONT, 12 POCKET [INCL. ALL]

1337138

$1,909.99

2

ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]

3236664

$629.35

2

ASM., COVER, OUTPUT [INCL. CONNECTOR ASSEMBLY, OUTPUT COVER, PLASTIC CLIP, THRUST BUTTON ASM., 4WD COIL, THRUST PLATE, O-RING, GROMMET, SCREW, OIL SEAL, DOWEL PINS, HEAT SHRINK TUBING]

3236664

$629.35

3

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3236673

$571.25

3

KIT, OUTPUT HUB [INCL. HUB ASM. FEMALE, HUB ASM. MALE]

3236673

$571.25

4

COVER-FASTENERS [INCL. SCREWS]

3235469

$16.17

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3236669

$84.43

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3236669

$84.43

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3236669

$84.43

5

KIT, SEAL REPAIR [INCL. ALL SEALS]

3236669

$84.43

6

PLATE, 4WD, ARMATURE

3235485

$113.32

7

ARMATURE PLATE, BACK DRIVE

3235626

$124.99

8

Bearing

3234390

$35.71

8

Bearing

3234390

$35.71

8

Bearing

3234390

$35.71

9

K-CLUTCH ROLLS [INCL. COMPLETE SET OF ROLLERS]

3235624

$6.46

10

ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]

3235625

$174.03

11

ASM., GEARCASE [INCL. GEARCASE, BUSHING, GARLOCK BEARING, FILL PLUG, VENT TUBE, OIL SEAL]

3236678

$529.99

12

ASM., DRAIN PLUG, MAGNETIC

3234412

$52.24

13

PLUG, OIL FILL

3234414

$32.37

14

ASM-GEAR HOUSING & PINION GEAR [INCL. PIN & 16 RET.RING]

3239540

$1,099.99

15

KIT-TORSION,SPRING AND RETAINER

3235712

$43.56

16

RING, RETAINING, EXTERNAL

----

Unavailable
