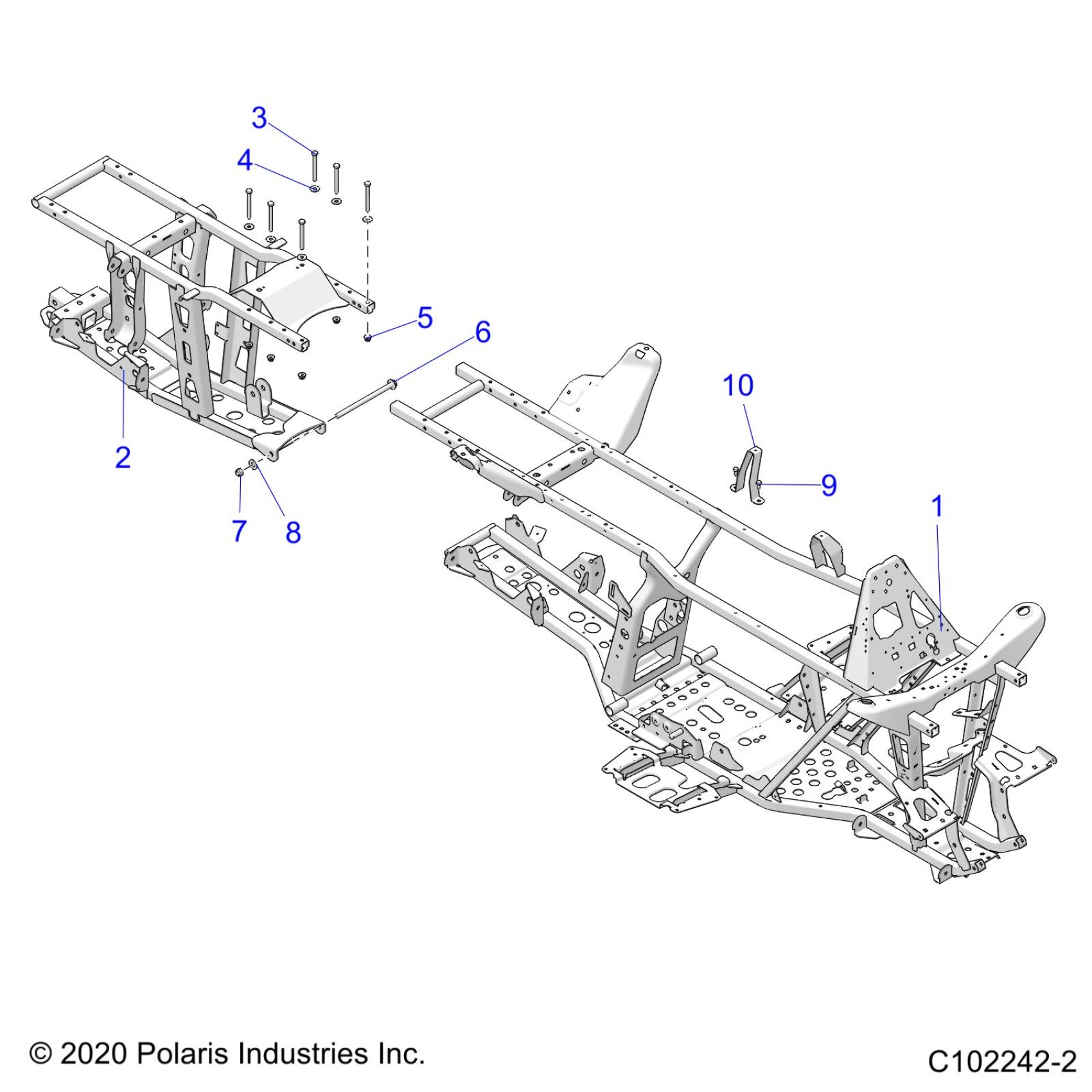

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 CHASSIS, FRAME - A24S6E57A1 (C102242-2) Diagram

#

Description

Price

1

WELD-MAIN FRAME,570 6X6,BLK

1025487-458

$1,899.99

2

WELD-FRAME,REAR,6X6,TRC,M.BLK

1021601-458

$554.99

3

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.56

4

WASHER, FLAT, .344x.875x.063

7555734

$0.79

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

6

SCR-7/16-20X7.25-HX-FL-CP-GR5Y

7519039

$27.78

7

NUT-7/16-20,NYLOK,Y

7547066

$1.59

8

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.73

9

SCR-1/4-20X5/8,TAP/R-Y

7517386

$1.19

10

BRKT-SUPPORT,FUEL TANK,RH

5261866

$32.37
