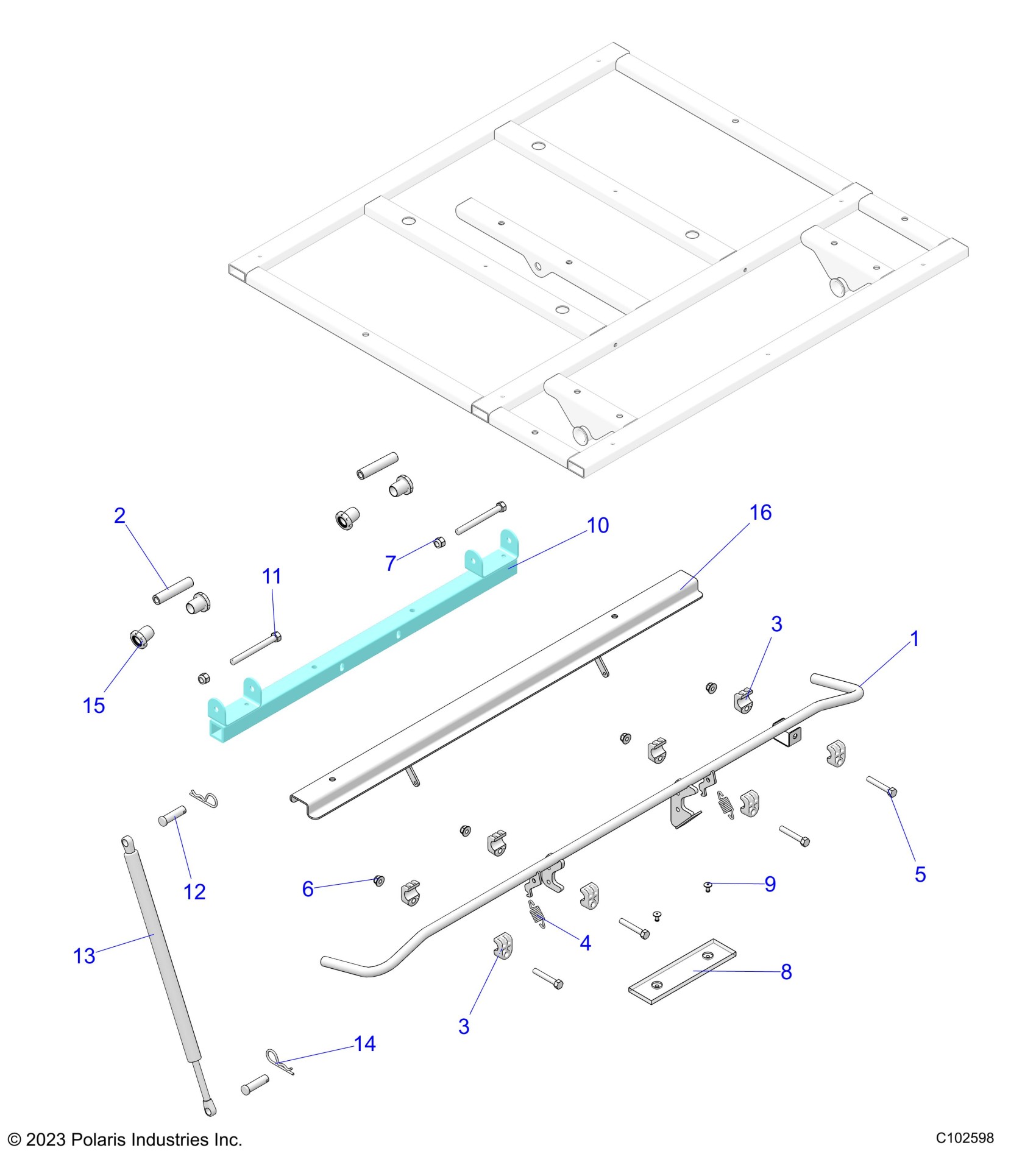

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 BODY, DUMP BOX LEVER and SHOCK MOUNTING - A24S6E57A1 (C102598) Diagram

Description

Price

WELD-BOX LATCH,M.BLK��

1016753-458

$79.99

Shaft, A-Arm., Short

5020826

$11.99

BUSHING-BOX,LATCH

5434226

$3.99

BUSHING-BOX,LATCH

5434226

$3.99

SPRING-EXHAUST

7041687

$5.65

Bolt, Hex

7515319

$4.79

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

BUMPER-BOX BASE,6X6

5413690

$19.99

POP RIVET(50)

7621418

$1.49

WELD-BOX,FRAME,PIVOT,E-COAT

1022024-329

$123.99

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

PIN-CLEVIS,1/2 X 1 3/4

7661878

$2.39

SHOCK, DUMP BOX

7043232

$67.99

CLIP-HITCHPIN .148X3 1/16

7661067

$2.39

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

SHIELD-HEAT,LATCH,6X6

5274787

$19.99

Polaris SPORTSMAN 570 6X6 (R01) - A24S6E57A1 BODY, DUMP BOX LEVER and SHOCK MOUNTING - A24S6E57A1 (C102598) Diagram

WELD-BOX LATCH,M.BLK����������

Shaft, A-Arm., Short

BUSHING-BOX,LATCH

BUSHING-BOX,LATCH

SPRING-EXHAUST

Bolt, Hex

NUT-5/16-18 HX FLG NL-Y

NUT-3/8-24(NYLOK)-Y

BUMPER-BOX BASE,6X6

POP RIVET(50)

WELD-BOX,FRAME,PIVOT,E-COAT

SCR-3/8-24X3 3/4 HX CP GR5-Y

PIN-CLEVIS,1/2 X 1 3/4

SHOCK, DUMP BOX

CLIP-HITCHPIN .148X3 1/16

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

SHIELD-HEAT,LATCH,6X6
