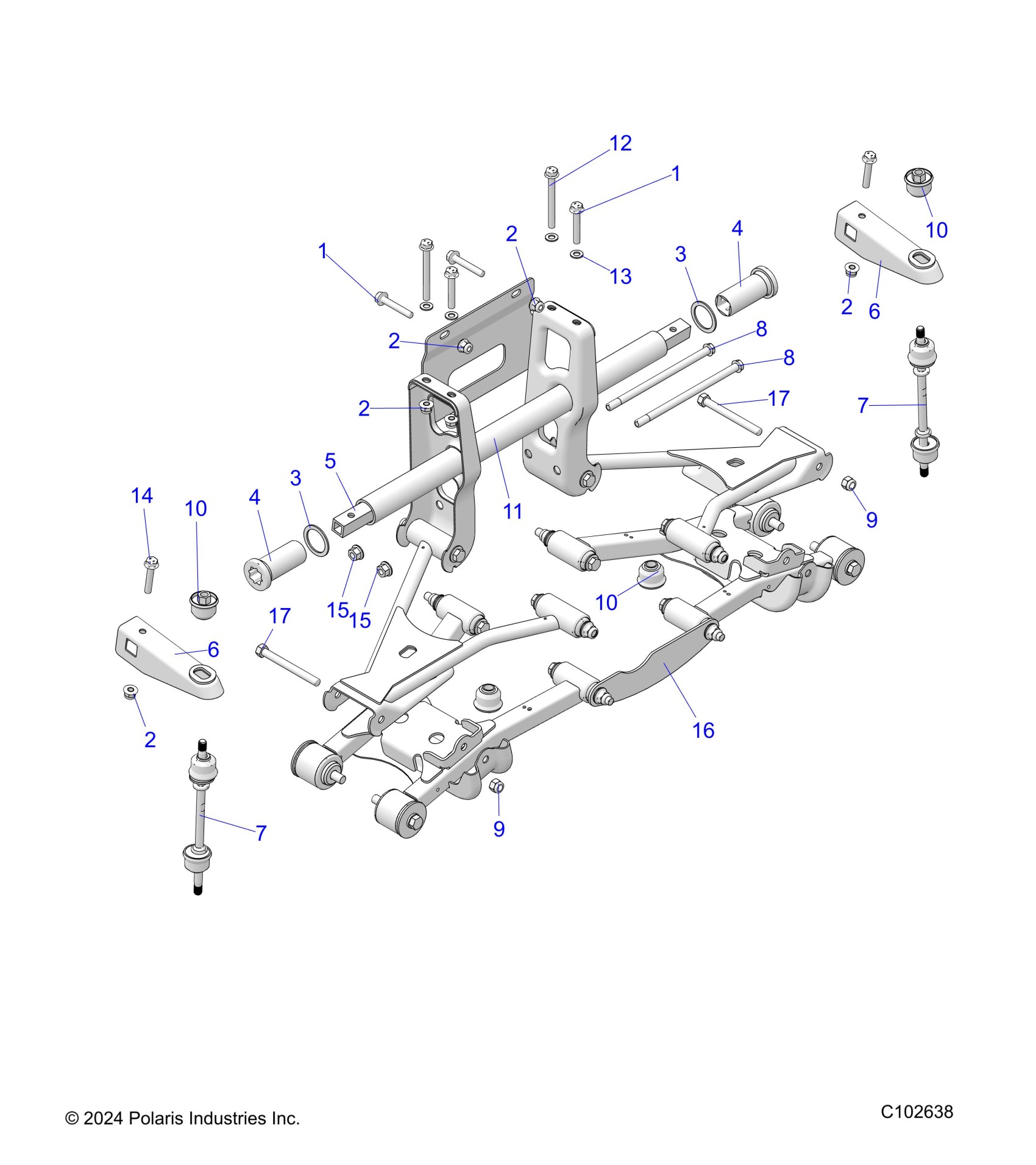

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 SUSPENSION, TORSION BAR - A25SKE57A1 (C102638) Diagram

#

Description
Price

1

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

1

SCR-HXFL-M8X1.25X50 10.9 ZFB

7521332-50

$1.59

2

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

2

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

2

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

2

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

2

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.39

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

3

WSHR-1.28X1.69X.075-Y

7555939

Unavailable

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

4

BUSHING, STABILIZER TUBE, BLACK

5438901

$8.79

5

BAR, STABILIZER TUBE, MATTE BLACK

5334114-329

$91.99

6

ARM, STABILIZER BAR, MATTE BLACK

1543119-458

$31.99

6

ARM, STABILIZER BAR, MATTE BLACK

1543119-458

$31.99

7

ASM-LINKAGE,STABILIZER BAR

1545198

$47.99

7

ASM-LINKAGE,STABILIZER BAR

1545198

$47.99

8

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

8

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

9

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

9

NUT-3/8-24(NYLOK)-Y

7542439

$1.49

10

BUSHING-LNKG TORBAR,DURO80

5416013

$4.79

10

BUSHING-LNKG TORBAR,DURO80

5416013

$4.79

10

BUSHING-LNKG TORBAR,DURO80

5416013

$4.79

11

WELD-STABILIZER SUPPORT,M.BLK

1545041-458

$79.19

12

SCR-HXFL-M8X1.25X80 10.9 ZFB

7521332-80

$3.59

13

WSHR-FLAT-M8X1.6 ZTB

7557234

$2.39

14

SCR-HXFL-M8X1.25X45 10.9 ZFB

7521332-45

$3.19

15

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

15

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

16

STRAP-REAR GEARCASE,6X6, M. BLK

5252941-458

$23.99

17

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39

17

SCR-3/8-24X3 3/4 HX CP GR5-Y

7515472

$2.39
