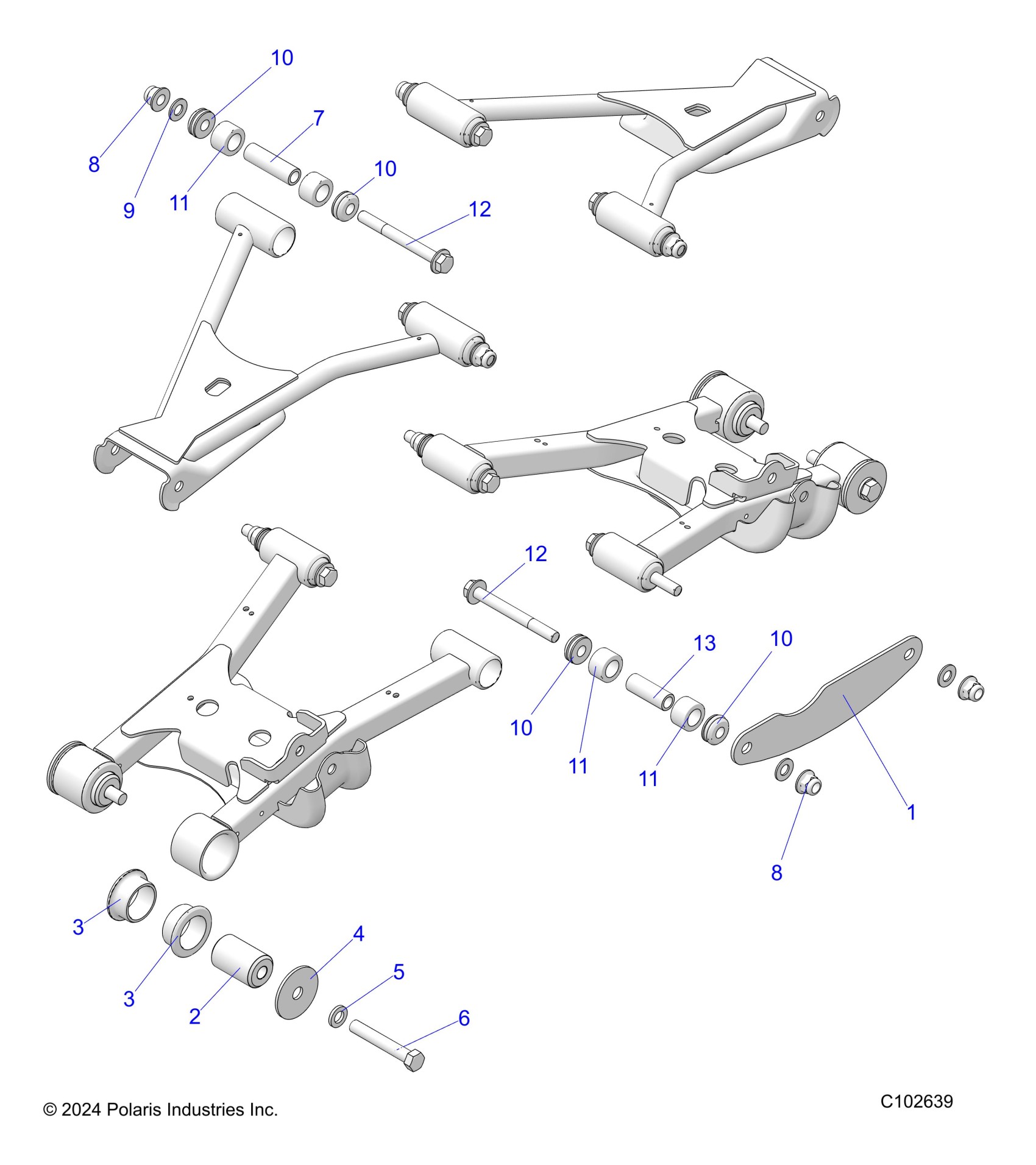

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 SUSPENSION, REAR CONTROL ARM MOUNTING - A25SKE57A1 (C102639) Diagram

STRAP-REAR GEARCASE,6X6, M. BLK

5252941-458

$23.99

BUSHING, BEARING CARRIER

5632291

$23.99

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

WASHER, FLAT

7555740

$1.59

WASHER-LOCK, 7/16-B

7552614

$1.59

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

SHAFT-PIVOT,54MM,M10

5141387

$12.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39
