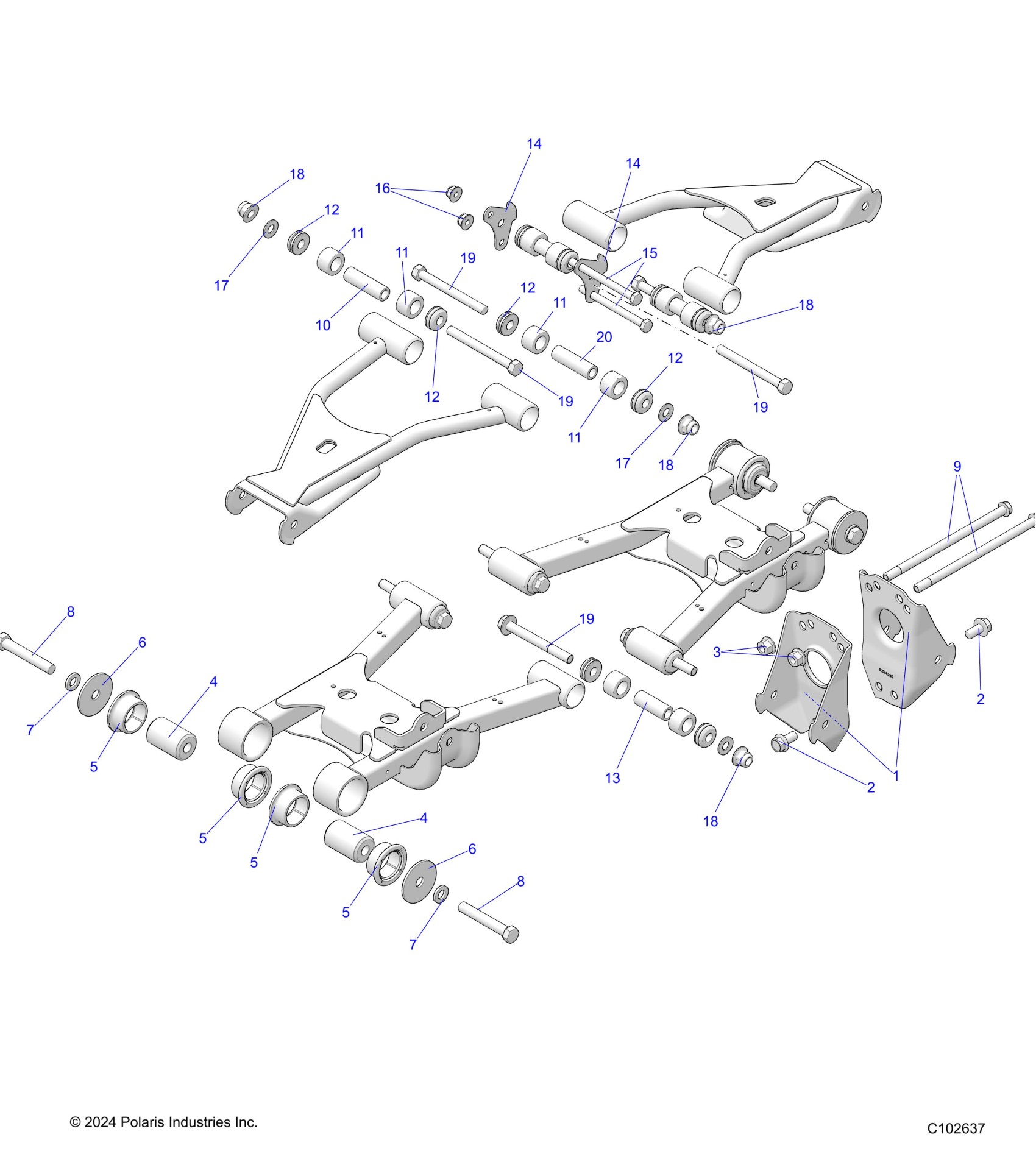

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 SUSPENSION, MIDDLE CONTROL ARM MOUNTING - A25SKE57A1 (C102637) Diagram

#

Description
Price

1

BRKT-CONTROL-ARM,PIVOT10MM,BLK

5264874-329

$31.99

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

2

SCR-3/8-16X3/4 HX FLNG-GR5-Y

7517632

$5.59

3

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

4

BUSHING, BEARING CARRIER

5632291

$23.99

4

BUSHING, BEARING CARRIER

5632291

$23.99

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

5

BUSHING, CONTROL, LOWER, BLACK

5418905

$4.79

6

WASHER, FLAT

7555740

$1.59

6

WASHER, FLAT

7555740

$1.59

7

WASHER-LOCK, 7/16-B

7552614

$1.59

7

WASHER-LOCK, 7/16-B

7552614

$1.59

8

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

8

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

9

BOLT-3/8-16X7 HX FLNG GR5-Y

7518365

$7.91

10

SHAFT-PIVOT,54MM,M10

5141387

$12.99

11

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

11

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

11

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

11

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

11

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)

1543326

$12.79

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

13

SHAFT-PIVOT,SHORT,M10,43MM

5141292

$4.39

14

BRKT-CONTROL ARM,PIVOT,6X6,BLK

5273356-329

$43.99

14

BRKT-CONTROL ARM,PIVOT,6X6,BLK

5273356-329

$43.99

15

SCR-HH-5/16-18X3.75 GR5 ZY3

7515382

$2.39

16

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

17

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

17

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

18

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

19

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

19

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

19

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59

19

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.59
