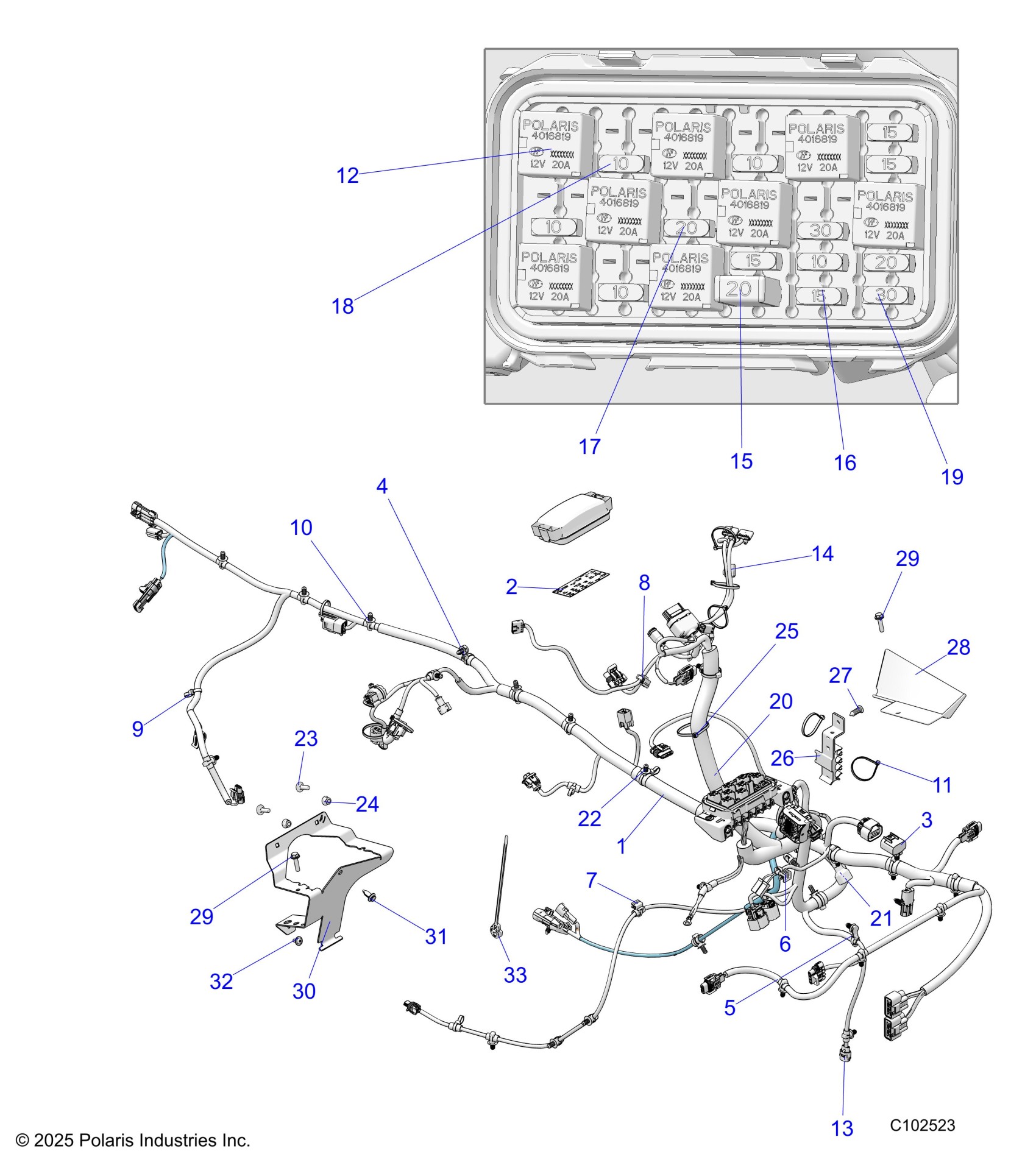

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 ELECTRICAL, WIRE HARNESS - A25SKE57A1 (C102523) Diagram

#

Description
Price

1

HARN-MAIN,SPMN,ETC,2UP INCL. 1-22][TO 2/10/2025]

2417315

Unavailable

1

HARN-MAIN,SPMN,ETC,2UP INCL. 1-22][FRM 2/10/2025]

2418084

$873.59

2

LABEL - FUSE BOX

7300888

Unavailable

3

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

4

CLIP OFFSET 12.5MM FIRTREE(BK)

7082458

$4.39

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.19

6

CLIP-EDGE, 3-6MM THICKNESS

7082404

$9.59

7

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.79

8

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

9

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

10

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

13

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$7.99

14

CONNECTOR-CAP, WINCH SWITCH

4014890

$8.79

15

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

16

FUSE-15AMP,MINI BLADE

4010859

$7.19

17

FUSE-PARK,20 AMP

2434017

Unavailable

18

FUSE-IGNITION,10 AMP

2434016

$4.79

19

FUSE-MAIN,30 AMP

2434015

$7.19

20

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$51.99

21

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$35.99

22

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$3.99

23

SCREW, RH CARRIAGE

7519249

$3.19

24

NUT-M6 FLANGE,NYLOC

7547274

$1.49

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

26

CLIP-ROUTING,MIDFRAME

5457074

$3.99

27

CLIP-XMAS TREE, .945 X .228

7670101

$2.39

28

DIVERTER,WTR SHLD,P-190X,BLK

5465393-070

$10.39

29

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$3.99

29

SCR-TXPHM6X1.0X25 8.8 RIE

7518535

$3.99

30

BRKT-FUSE BLOCK,M.BLK

5268539-458

$27.99

31

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

32

SCR-10-24X1/2, PHTXTRIRD, SEMS-Y

7512084

$1.49

33

CABLE-TIE,M10X1.5 STUD MNT

7082649

$3.99
