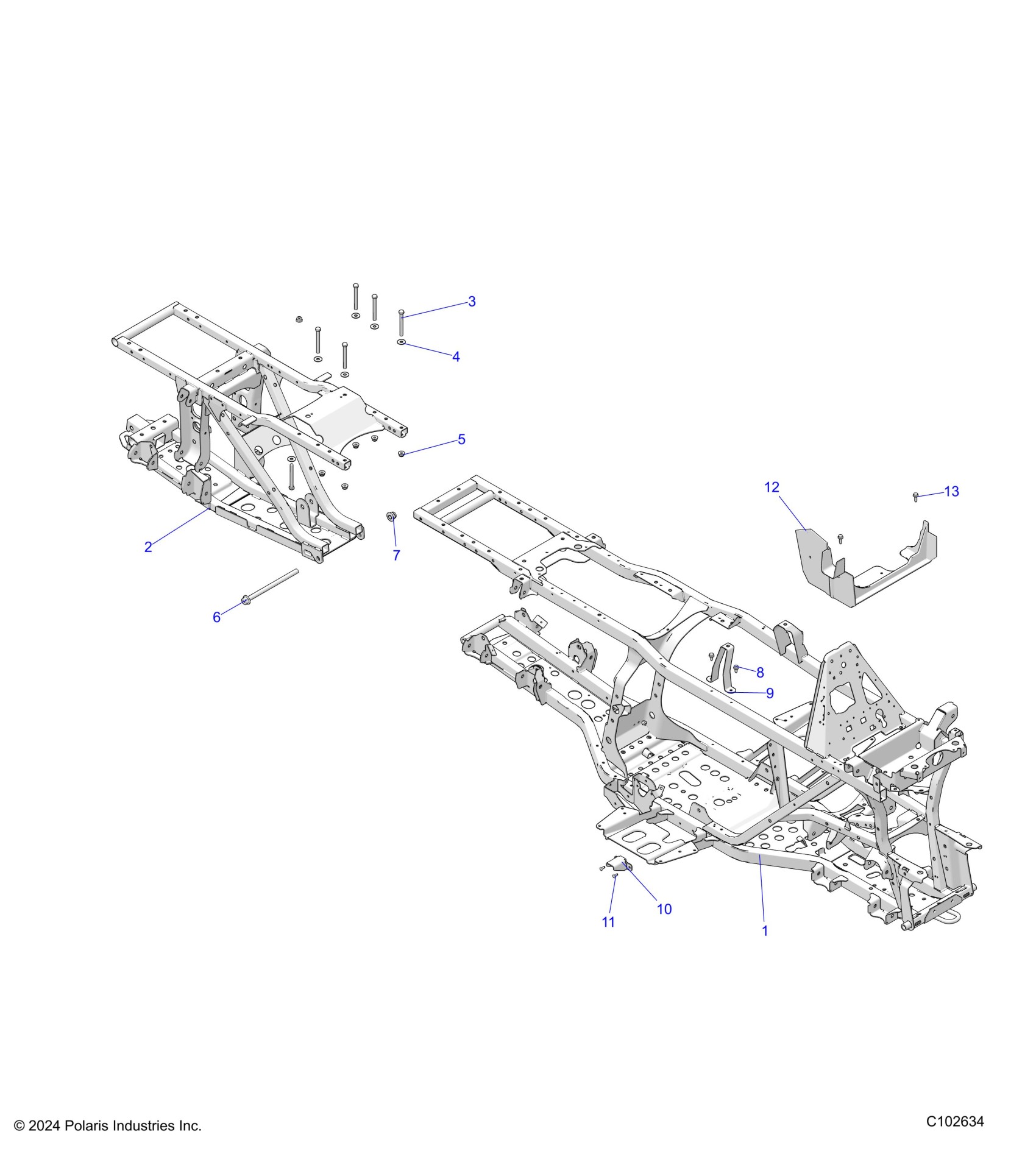

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 CHASSIS, FRAME - A25SKE57A1 (C102634) Diagram

#

Description

Price

1

WELD-MAIN FRAME,6X6,SP,M.BLK

1027608-458

$1,531.19

2

WELD-FRAME,REAR,6X6,M.BLK

1027609-458

$545.59

3

SCR-5/16-18X3 HX CP GR5-Y

7515346

$5.59

4

WASHER, FLAT, .344x.875x.063

7555734

$1.49

5

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

SCR-HXFL-M12X1.75X195 10.9 ZFB

7521334-195

$8.79

7

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.19

8

BOLT,M6X1.0X15,HXFLG,TAP/T-OD [TO 4/10/2025]

7518513

$4.79

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK [FRM 4/10/2025]

7518529

$1.49

9

BRKT-SUPPORT,FUEL TANK,RH,M.BK

5274276-458

$27.99

10

BRKT-BRK,SWITCH,PROTECTOR,BLK

5274263-458

$12.79

11

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.49

12

COVER-CVT,SPLASH,SHIELD,SP,BLK

5465254-070

$27.99

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
