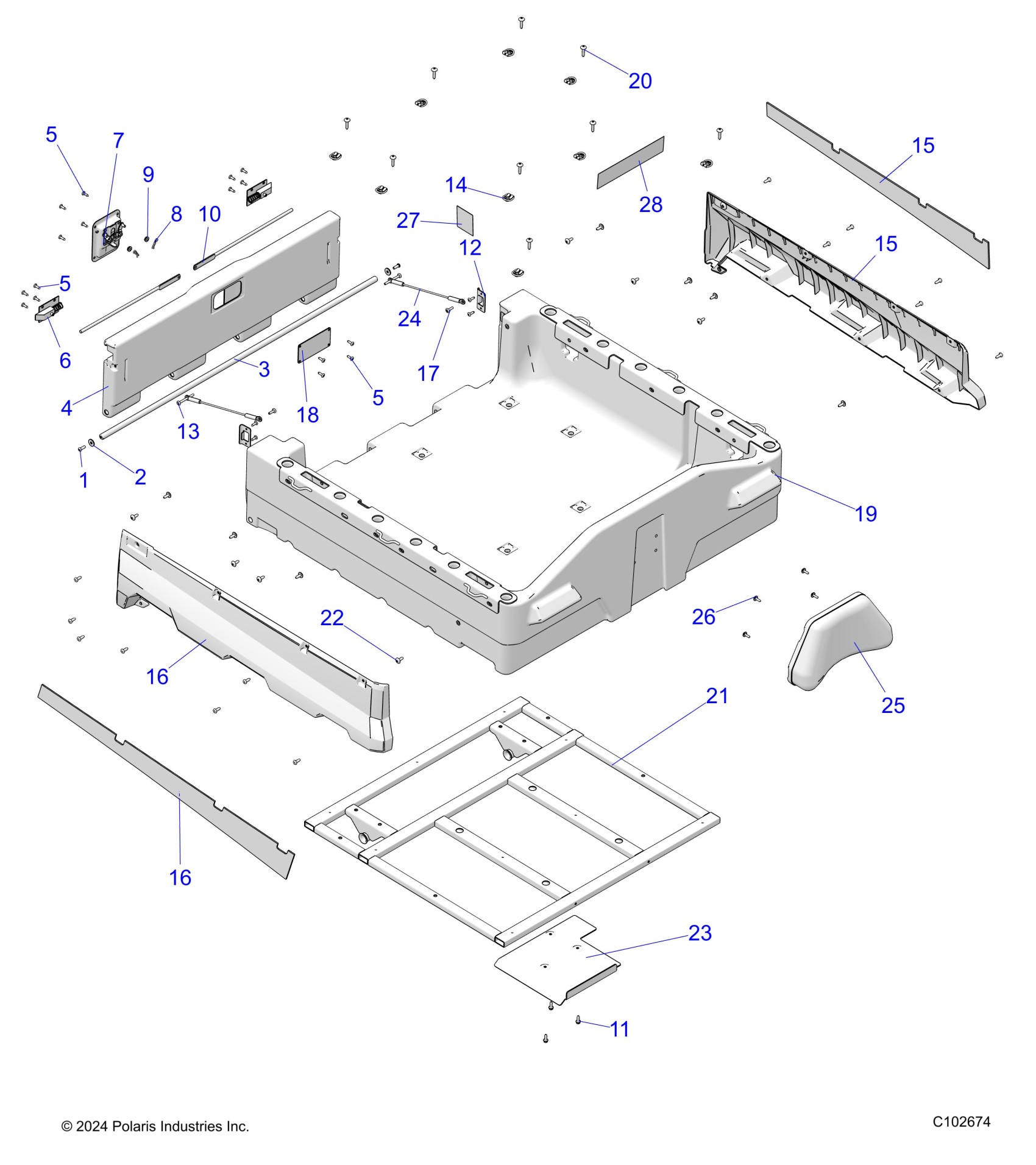

Polaris SPORTSMAN 570 6X6 EPS 49S (R02) - A25SKE57A1 BODY, DUMP BOX - A25SKE57A1 (C102674) Diagram

#

Description
Price

1

SCREW-1/4-20x3/4 BH TRX, GR5-Z

7515177

$3.19

2

WASHER-.270X.84X.075 BLK-M

7556386

$4.79

3

ROD,HINGE,TAILGATE 6X6

5132358

$51.99

4

TAILGATE,PLASTIC,6X6

5433388

$375.99

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

5

SCR-#10X.75,TR/PH/TAP,AB-M

7517561

$1.59

6

LATCH,FLSHBLT,TLGATE,BLK

5433656

$63.99

7

Latch, Paddle, Tailgate

5433655

$83.99

8

PIN-HITCH, 3/32-Y

7661644

$2.39

9

Washer, Rubber w/Metal Back

7556143

$4.79

10

SHFT,TLGATELTCH,5/16,ZINC

5132373

$11.99

11

SCR-TFHFL-1/4-20X0.75 CHS ZY3

7512232

$1.49

12

Bracket, Box Latch

5243304

$14.39

13

Screw

7517938

$1.49

14

Ring, Tie Down

7081101

$7.99

15

ASM-MUDGUARD,BOX,LH

2639822

$114.39

15

DECAL-BOX SIDE,BIG BOSS,LH

7202083

$27.99

15

ASM-MUDGUARD,BOX,LH

2639822

$114.39

15

DECAL-BOX SIDE,BIG BOSS,LH

7202083

$27.99

16

ASM-MUDGUARD,BOX,RH

2639823

$114.39

16

DECAL-BOX SIDE,BIG BOSS,RH

7202084

$27.99

16

ASM-MUDGUARD,BOX,RH

2639823

$114.39

16

DECAL-BOX SIDE,BIG BOSS,RH

7202084

$27.99

17

SCREW1/4-20X3/4PA PN,LK,G2-Y

7517742

$5.59

18

Cover, Tailgate, Black

5244068-067

$27.99

19

BOX-PLASTIC,6X6 [INCL. WARNING DECALS]

5459927

$749.75

20

Screw (If built before 7/23/01)

7517686

$1.59

21

WELD-BOX SUPPORT,M.BLK��������

1026148-458

$441.25

22

SCR-TXTH-1/4-20X0.75 ZY3 P30

7520108

$2.79

23

SHIELD-EXHAUST,BOX,6X6

5274850

$39.99

24

Cable, Tailgate

7080881

$39.99

25

ASM-BACKREST,6X6,BLK

2693006-070

$139.99

26

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.49

27

DECAL-WARN,NEVER CARRY FUEL

7186122

Unavailable

28

DECAL-WARN,PASS,6X6

7301055

Unavailable
