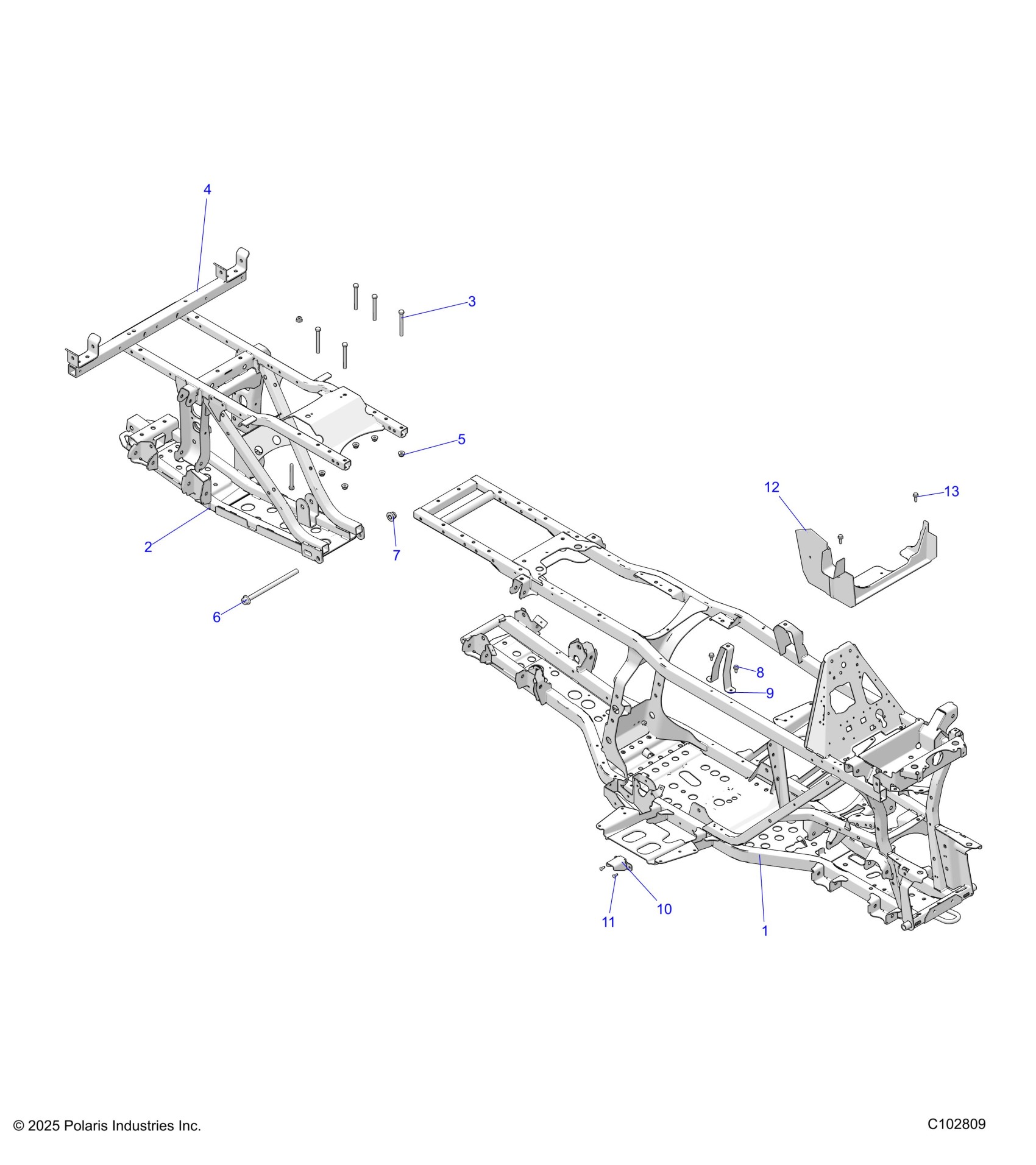

Polaris SPORTSMAN 570 6X6 EPS 49S (R01) - A26SKE57A1 CHASSIS, FRAME - A26SKE57A1 (C102809) Diagram

#

Description

Price

1

WELD-MAIN FRAME,6X6,SP,M.BLK

1029694-458

$1,824.99

2

WELD-FRAME,REAR,6X6,M.BLK

1027609-458

$699.99

3

SCR-HXFL-M8X1.25X75 10.9 ZFB

7521332-75

$1.19

4

WELD-BOX,FRAME,PIVOT,E-COAT

1027682-329

$159.75

5

NUT-HXFL-M8X1.25 8 ZTB NYL

7548028

$2.38

6

SCR-HXFL-M12X1.75X195 10.9 ZFB

7521334-195

$9.99

7

NUT-HXFL-M12X1.75 8 ZTB NYL

7548030

$3.17

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

BRKT-SUPPORT,FUEL TANK,RH,M.BK

5274276-458

$28.32

10

BRKT-BRK,SWITCH,PROTECTOR,BLK

5274263-458

$15.99

11

RIVET-POP 3/16(.126-.250)-ST-B

7621432

$1.19

12

COVER-CVT,SPLASH,SHIELD,SP,BLK

5465254-070

$28.32

13

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19
