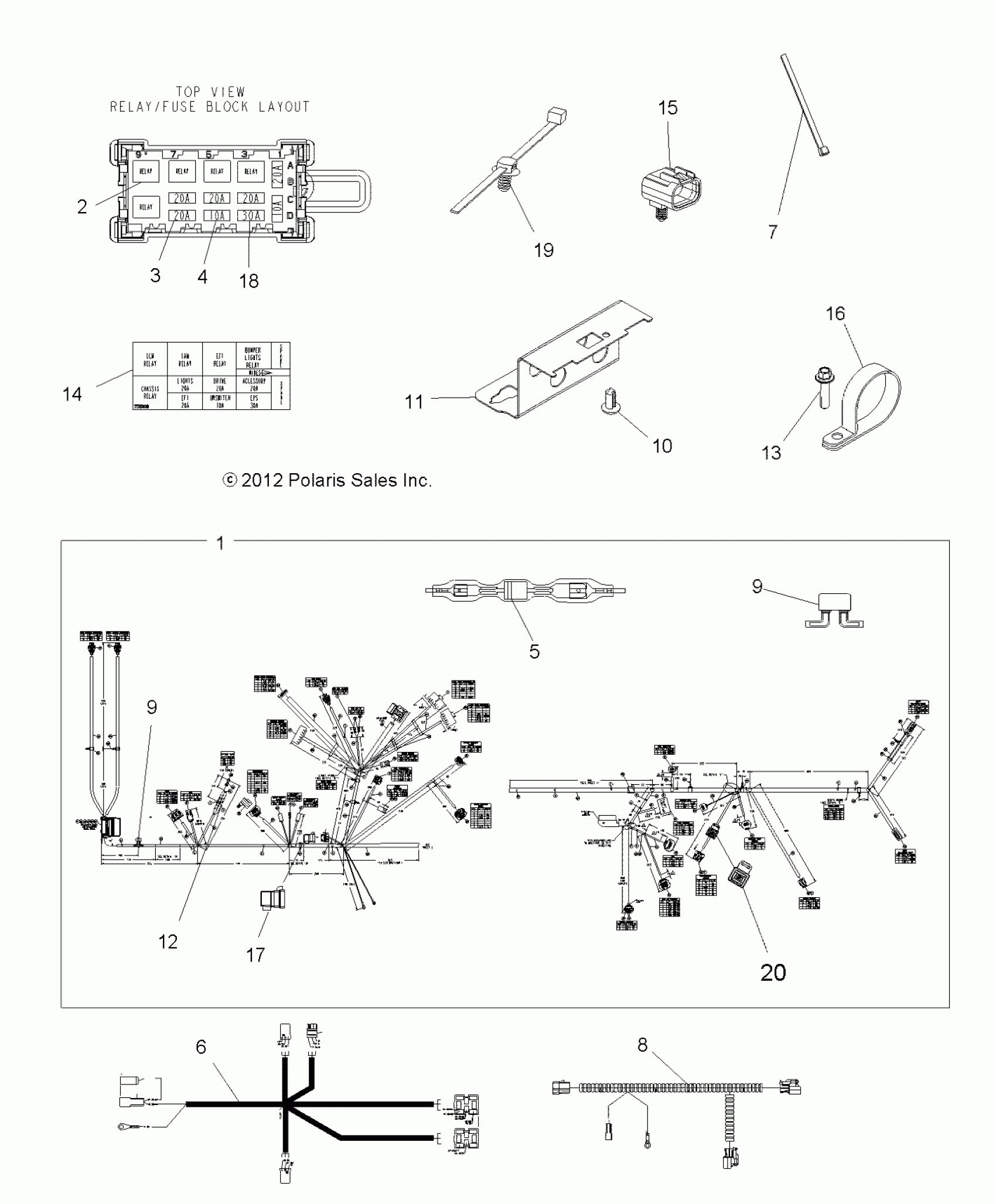

Polaris SPORTSMAN 550 EPS - A13ZN5EAD/K/L/T ELECTRICAL, HARNESS - A13ZN5EAD/K/L/T (49ATVHARNESS13SPEPS550) Diagram

COVER-RELAY/FUSE CENTER

5438758

$11.32

KIT, HARNESS, TPS

2878498

$113.32

KIT, HARNESS, HANDLEBAR SWITCH

2877772

$127.99

KIT, HARNESS, HANDLEBAR SWITCH

2877773

$131.99

KIT, HARNESS, HANDLEBAR SWITCH

2877771

$140.79

HARNESS, MAIN [INCL. 1-6,9,12,14,15,17,18, ALL KITS, COVER]

2412427

$906.39

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

FUSE-PARK,20 AMP

2434017

Unavailable

FUSE-IGNITION,10 AMP

2434016

$4.79

DIODE, 6AMP

2411035

$51.99

Harness, Wire, Warmers [AT]

2411066

$99.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

Harness, Accesory, Worklights [AT]

2411236

$151.99

BREAKER, CURCUIT, 10 AMP

2410692

$24.27

BREAKER, CURCUIT, 10 AMP

2410692

$24.27

FASTENER, PUSH-ON CLIP

7670125

$7.99

BRACKET, FUSE BLOCK

5253502

$6.39

Kit, Fusible Link, 1.0 mm

2202670

$35.99

Kit, Fusible Link, .8 MM

2202607

$39.99

Screw

7512095

$4.79

LABEL, FUSE BOX

7175808

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CLAMP-HOSE

7080807

$9.59

RELAY, SPDT, SEALED

4010725

$48.87

KIT, RELAY, EPS, REPAIR [INCL. 4010725, WIRE HARNESS, REPAIR, CONNECTORS, SHRINK TUBES, INSTRUCTIONS]

2204853

$75.99

FUSE-MAIN,30 AMP

2434015

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

MODULE, RESISTOR

4014055

Unavailable
