- SPORTSMAN 550 - A11ZN55AA/AQ/AZ
ENGINE, VALVES and CAMSHAFT - A11ZN55AA/AQ/AZ (49ATVVALVE09SPXP550)

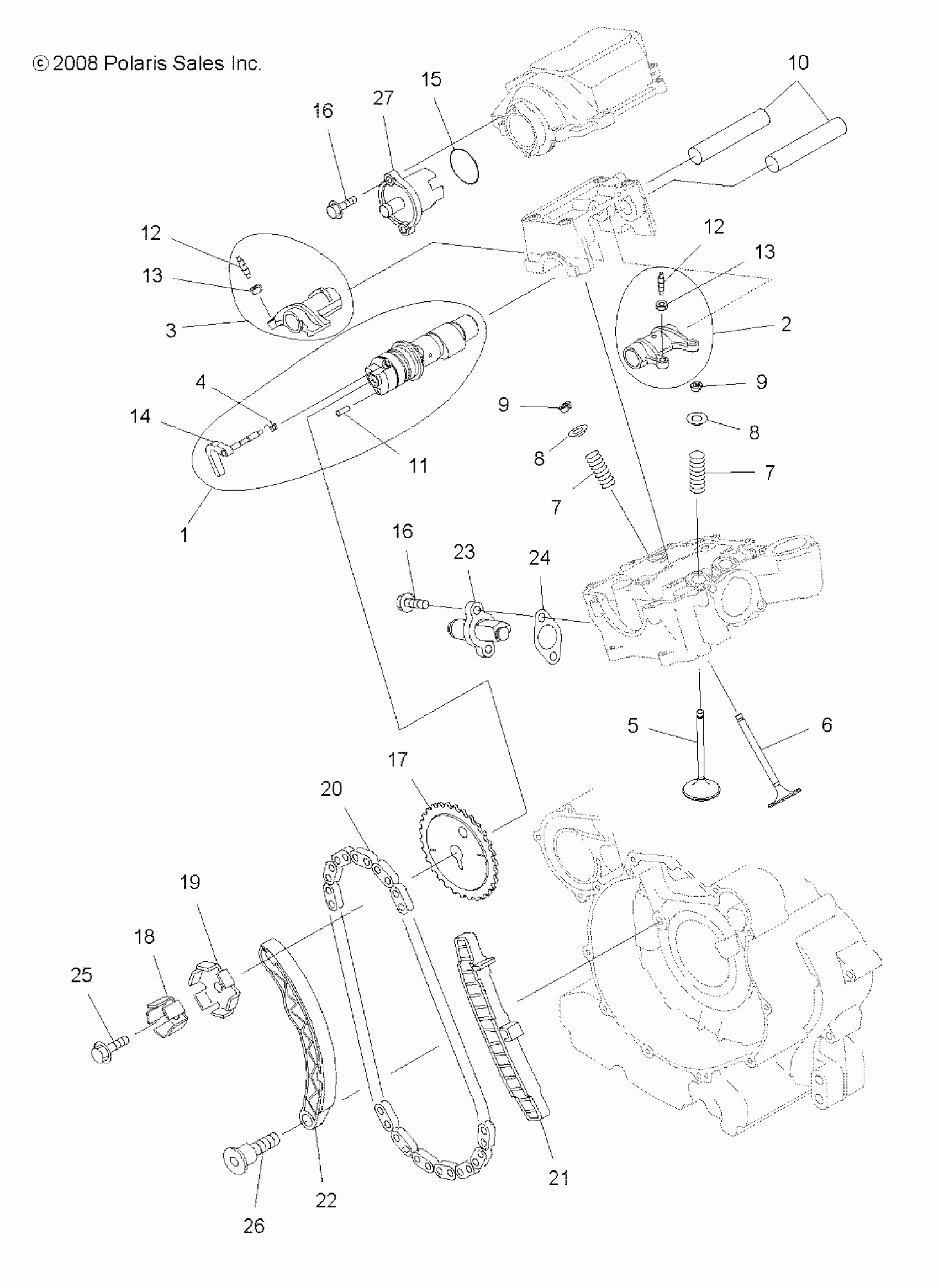

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ ENGINE, VALVES and CAMSHAFT - A11ZN55AA/AQ/AZ (49ATVVALVE09SPXP550) Diagram
#
Description
Price
1
ASM., CAMSHAFT [INCL. CAM, 4,11,14]
3090115
$251.99
2
ARM, ROCKER, INTAKE [INCL. ARM, 12,13]
3090122
$131.99
3
ARM, ROCKER, EXHAUST [INCL. ARM, 12,13]
3090125
Unavailable
4
SPRING, RETURN
3090117
$6.39
5
VALVE, INTAKE
3090118
$51.99
6
VALVE, EXHAUST
3090119
$83.99
7
SPRING, VALVE
3090214
$19.99
7
SPRING, VALVE
3090214
$19.99
8
Return, Valve Spring
3087203
Unavailable
8
Return, Valve Spring
3087203
Unavailable
9
COLLET, VALVE
3084908
$3.99
9
COLLET, VALVE
3084908
$3.99
10
SHAFT, ROCKER
3090215
$48.87
11
PIN, DOWEL
3084899
$7.19
12
SCREW, ADJUSTING
3090123
$4.79
12
SCREW, ADJUSTING
3090123
$4.79
13
NUT
3090124
$3.51
13
NUT
3090124
$3.51
14
LEVER, RELEASE
3090116
$59.99
15
O-RING
3090131
$6.39
16
BOLT, FLANGE
3084877
Unavailable
16
BOLT, FLANGE
3084877
Unavailable
17
SPROCKET, CAM
3090126
$75.99
18
PLATE
3089975
Unavailable
19
CAM, PULLEY
3090127
$12.79
20
CHAIN, TIMING
3090128
$95.99
21
GUIDE, CABIN
3084916
Unavailable
22
LEVER
3090129
$83.99
23
ASM. TENSIONER
3086493
Unavailable
24
GASKET
3086448
$6.39
25
BOLT, FLANGE
3086449
$7.19
26
BOLT, PIVOT
3088024
Unavailable
27
COVER, CAM
3090130
$71.99
