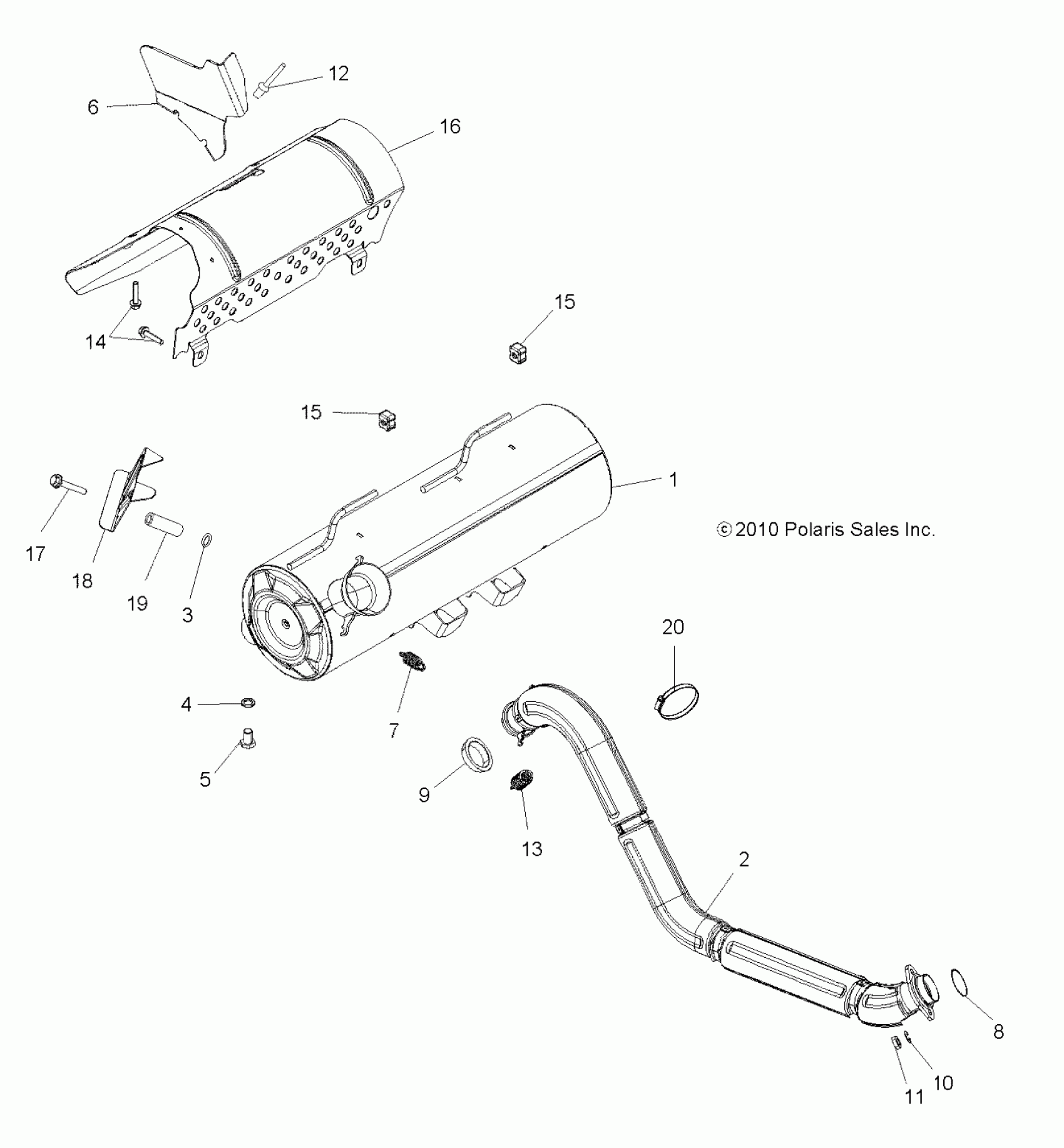

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ ENGINE, EXHAUST - A11ZN55AA/AQ/AZ (49ATVEXHAUST11SPEPS550) Diagram

#

Description
Price

1

SILENCER, EXHAUST, BLACK [INCL. 4,5]

1262232-489

$483.99

2

ASM., PIPE, EXHAUST [INCL. PIPE, SHIELDS]

1261551

$1,126.39

3

RETAINER, BOLT

7670154

$1.49

4

WASHER

7556004

$7.19

5

BOLT

7512666

$2.39

6

SHIELD

5252515

$35.19

7

SPRING-EXHAUST

7041789

$7.99

8

GASKET, EXHAUST

3090004

$31.99

9

Seal, Exhaust [Built 12/14/10 and After]

3610179

$15.99

9

Seal, Exhaust [Built 12/13/10 and Before]

3610156

$16.17

10

Washer, Lock

7556111

$1.59

11

NUT

7547076

$2.60

12

RIVET-3/16-.090-.290

7661637

$1.49

13

SPRING-EXHAUST

7041789

$7.99

14

SCREW

7518513

$4.79

15

GROMMET, SILENCER MOUNT

5413383

$4.79

15

GROMMET, SILENCER MOUNT

5413383

$4.79

16

Shield, Box, Storage

5252266

$95.99

17

SCREW

7519090

$3.99

18

Shield, Exhaust Spring

5253865

$19.99

19

SPACER, EXHAUST SPRING SHIELD

5336190

$3.99

20

CLAMP, WORM DRIVE

7080809

$9.59
