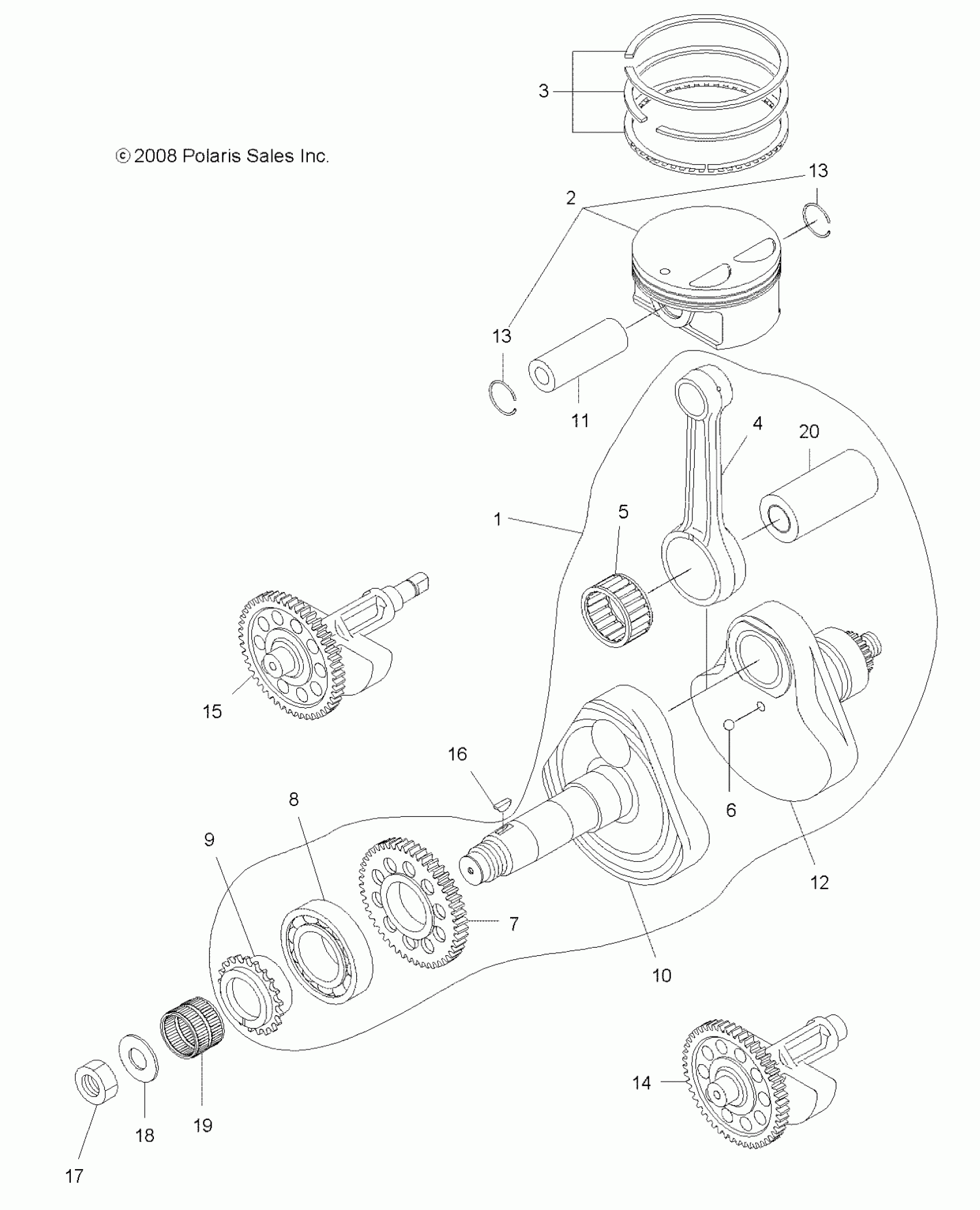

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ ENGINE, CRANKSHAFT and PISTON - A11ZN55AA/AQ/AZ (49ATVCRANKSHAFT09SPXP550) Diagram

ASM., CRANKSHAFT [INCL. 4-10,12,20]

3090301

$897.59

PISTON, SET, .25 OS [INCL. PISTON, QTY 2 OF #13]

3090174

$143.99

PISTON, SET, .50 OS [INCL. PISTON, QTY 2 OF #13]

3090175

$143.99

PISTON, SET, STD. [INCL. PISTON, QTY 2 OF #13]

3090173

Unavailable

RING, PISTON SET, .50 OS [INCL. QTY 1 TOP, MIDDLE, LOWER RING]

3090177

Unavailable

RING, PISTON SET, .25 OS [INCL. QTY 1 TOP, MIDDLE, LOWER RING]

3090176

$63.99

RING, PISTON SET, STD. [INCL. QTY 1 TOP, MIDDLE, LOWER RING]

3090110

$63.99

ROD, CONNECTING

3090172

$175.99

BEARING, LARGE END

3085343

Unavailable

BALL STEEL

3085024

$5.59

GEAR, BALANCER, DRIVE

3090211

Unavailable

BEARING, BALL

3080676

$39.99

SPROCKET, CRANK

3090108

Unavailable

CRANKSHAFT 1

3090302

$371.99

PIN, PISTON

3090109

$47.99

CRANKSHAFT 2

3090170

$187.26

CLIP

3085534

Unavailable

CLIP

3085534

Unavailable

SHAFT, BALANCER 1

3090212

Unavailable

SHAFT, BALANCER 2

3090213

Unavailable

KEY, WOODRUFF

3081543

$12.94

NUT

3090113

$23.99

WASHER

3090114

$7.99

BEARING, NEEDLE

3087976

$19.99

PIN, CRANK

3090171

Unavailable
