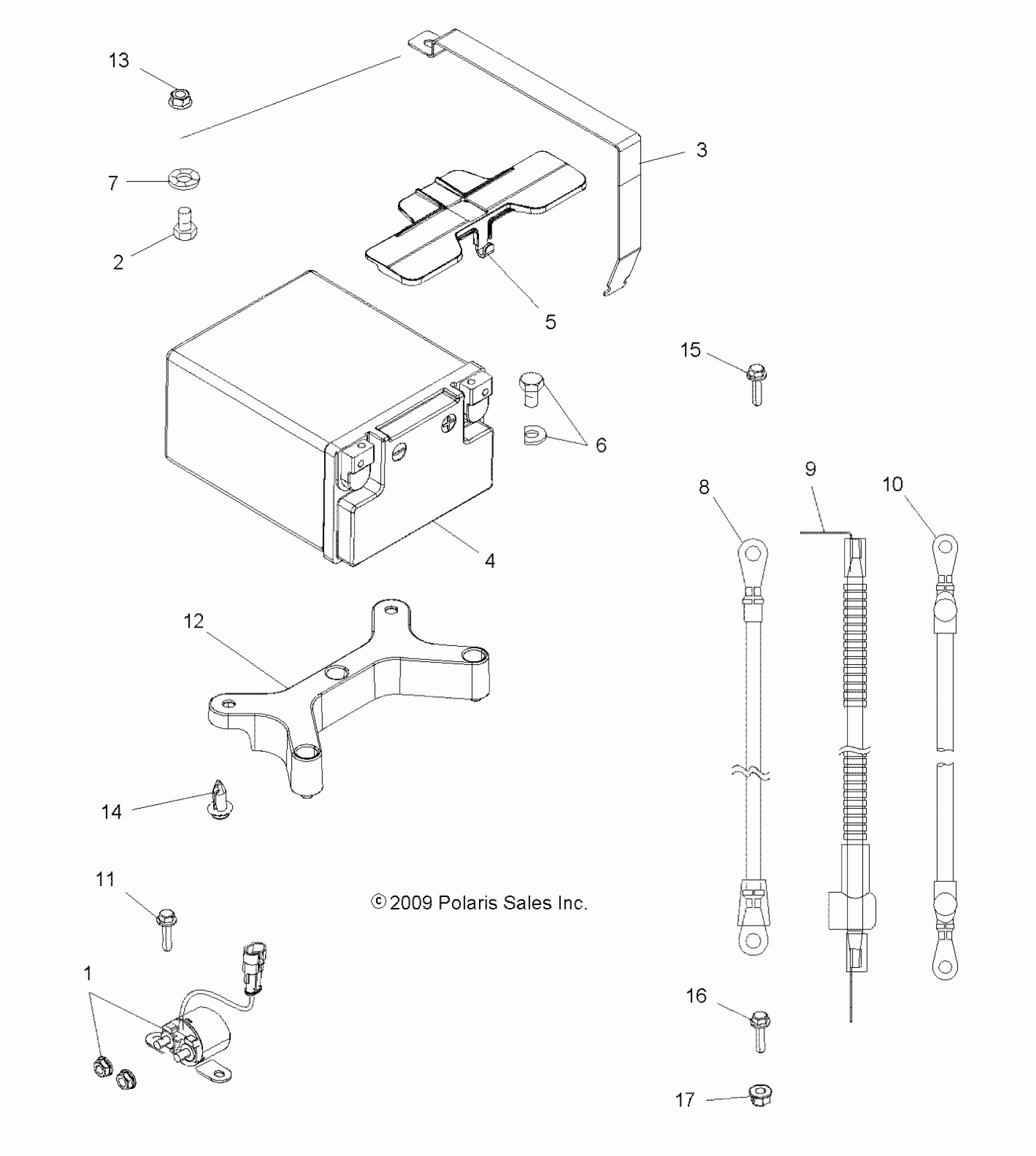

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ ELECTRICAL, BATTERY - A11ZN55AA/AQ/AZ (49ATVBATTERY10SPXP550) Diagram

#

Description
Price

1

SOLENOID, STARTER

4012013

$80.94

2

SCREW

7518925

$3.17

3

BRACKET, BATTERY STRAP

5253380

$129.99

4

BATTERY, SEALED, 14-AH

4011138

$128.24

5

COVER, BATTERY

5438299

$16.87

6

KIT, BATTERY BOLT

2202848

$4.99

7

RETAINER, BOLT

7670154

$2.38

8

CABLE, BLACK

4012709

$35.54

9

CABLE, BATTERY TO SOLENOID/TERMINAL

4012721

$48.56

10

CABLE, SOLENOID TO STARTER

4012856

$44.99

11

SCREW

7517653

$5.56

12

SPACER, BATTERY

5438228

$10.51

13

NUT-M6 FLANGE,NYLOC

7547274

$1.19

14

Rivet

7661855

$1.19

15

BOLT

7518513

$4.76

16

SCREW, FLANGE

7516820

$5.56

17

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97
