Description

Price

-

Asm., Transmission

1332845

$2,574.99

1

Subasm., Bearing Cover w/Screws [Incl. 49]

3235198

$23.99

2

RING, RETAINING, SHAFT

3233364

$6.39

2

RING, RETAINING, SHAFT

3233364

$6.39

3

RING, RETAINING, EXTERNAL

3234318

$3.19

4

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

5

RING, RETAINING, INTERNAL

3234741

$9.59

6

RING, RETAINING, EXTERNAL

3233699

$7.19

7

RING, RETAINING, EXTERNAL

3234641

$12.79

8

WASHER, THRUST

3234248

$9.59

9

SHIM

3234643

$31.99

9

SHIM

3234643

$31.99

10

SHIM

3234644

$12.79

11

WASHER, THRUST

3234646

$23.99

12

Kit, Shim

2204264

Unavailable

13

KIT, SHIM

2204268

$39.99

14

Washer

3234648

$30.79

15

WASHER, THRUST

3234757

$11.19

16

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

17

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

18

BEARING

3233020

$47.99

19

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

20

BEARING BALL,6304STD 20X52X15

3234651

$15.99

21

BEARING, BALL

3234274

$27.99

22

BEARING, NEEDLE

3234759

$15.99

23

BEARING, BALL

3234652

$15.99

24

BEARING, NEEDLE

3234655

$15.99

25

BEARING, NEEDLE

3234656

$15.99

26

Bearing, Ball

3234657

$21.99

26

Bearing, Ball

3234657

$21.99

27

Bearing, Flanged

3234684

$19.99

28

SPRING, WAVE

3234688

$10.39

29

Spring, Compression

3234999

Unavailable

30

Cup

3234696

$91.99

31

Spacer, Compensator, Thrust

3234697

Unavailable

32

Shaft, Output

3234997

$107.99

33

SHAFT, REVERSE, 56T

3234736

$255.99

34

SHAFT, INPUT, 25T

3235063

$315.99

35

Gear, Compensator

3234762

$419.98

36

Cam, Compensator

3234705

Unavailable

37

Gear, Helical, 39T

3235132

$163.99

38

GEAR, 67T

3234706

$87.99

39

SPROCKET, 48T

3234707

$35.99

40

SPROCKET, 23T

3234708

Unavailable

41

DOG, ENGAGEMENT, LOW

3234718

$175.99

42

DOG, ENGAGEMENT, REV/LOW

3235341

$171.99

43

CHAIN, SILENT

3234738

$231.99

44

Shaft, Compensator

3234721

$307.99

45

Dog, Engagement, High

3235134

Unavailable

46

SPROCKET, 44T

3234998

$67.99

47

Asm., Primary Shaft

3234768

$287.37

48

ASM., OUTPUT, FRONT

3234723

$207.99

49

Subasm., Bearing Cover w/Screws [Incl. 1]

3235198

$23.99

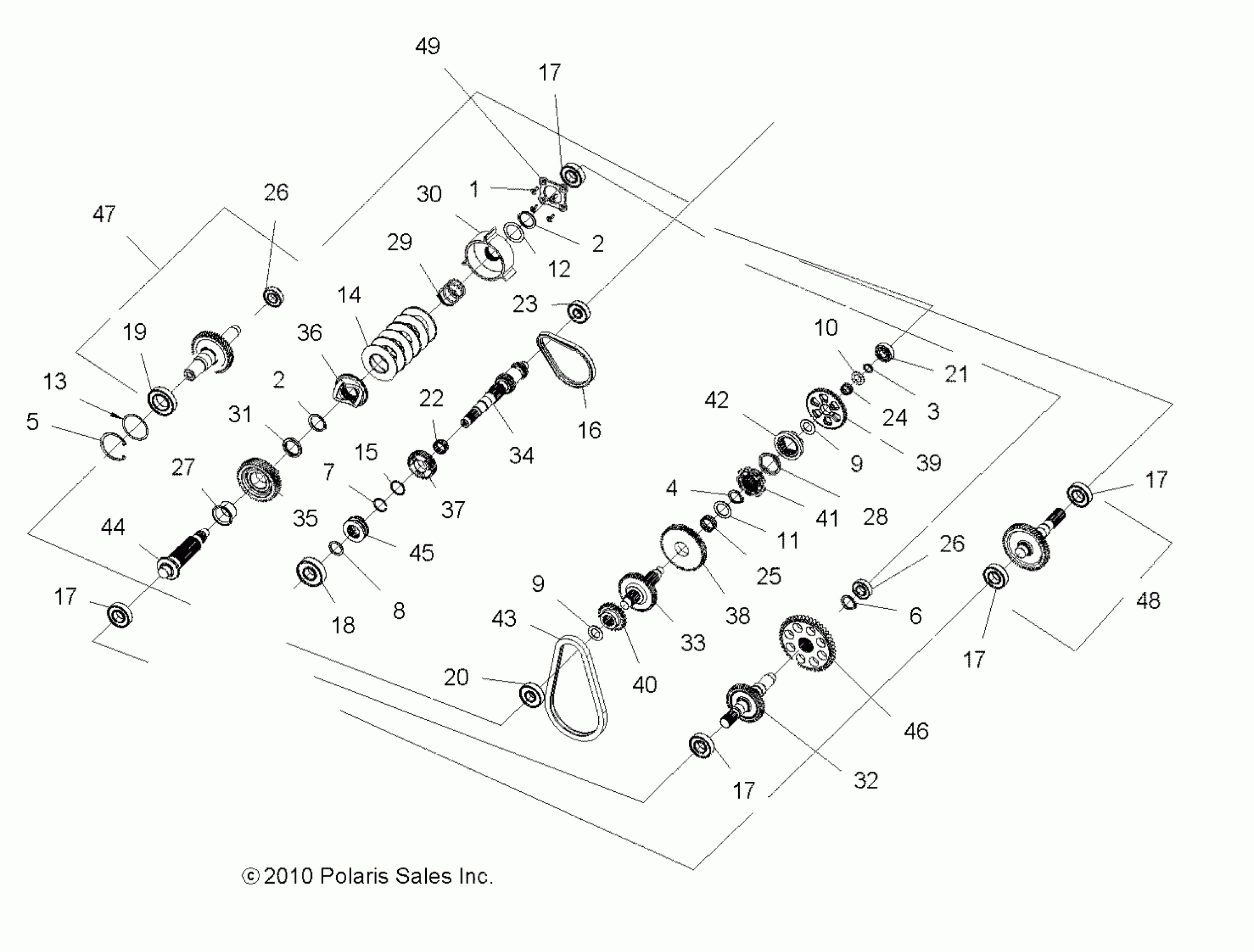

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ DRIVE TRAIN, MAIN GEARCASE INTERNALS (Built 3/01/11 and Before) - A11ZN55AA/AQ/AZ (49ATVTRANSINTL1332845) Diagram

Asm., Transmission

Subasm., Bearing Cover w/Screws [Incl. 49]

RING, RETAINING, SHAFT

RING, RETAINING, SHAFT

RING, RETAINING, EXTERNAL

RING, RETAINING BASIC, EXTERNA

RING, RETAINING, INTERNAL

RING, RETAINING, EXTERNAL

RING, RETAINING, EXTERNAL

WASHER, THRUST

SHIM

SHIM

SHIM

WASHER, THRUST

Kit, Shim

KIT, SHIM

Washer

WASHER, THRUST

CHAIN,SIL 101,.25P X .40W X58L

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6007 C3 35 X 62 X 14

BEARING BALL,6304STD 20X52X15

BEARING, BALL

BEARING, NEEDLE

BEARING, BALL

BEARING, NEEDLE

BEARING, NEEDLE

Bearing, Ball

Bearing, Ball

Bearing, Flanged

SPRING, WAVE

Spring, Compression

Cup

Spacer, Compensator, Thrust

Shaft, Output

SHAFT, REVERSE, 56T

SHAFT, INPUT, 25T

Gear, Compensator

Cam, Compensator

Gear, Helical, 39T

GEAR, 67T

SPROCKET, 48T

SPROCKET, 23T

DOG, ENGAGEMENT, LOW

DOG, ENGAGEMENT, REV/LOW

CHAIN, SILENT

Shaft, Compensator

Dog, Engagement, High

SPROCKET, 44T

Asm., Primary Shaft

ASM., OUTPUT, FRONT

Subasm., Bearing Cover w/Screws [Incl. 1]
