- SPORTSMAN 550 - A11ZN55AA/AQ/AZ
DRIVE TRAIN, MAIN GEARCASE (Built 3/01/11 and Before) - A11ZN55AA/AQ/AZ (49ATVGEARCASE1332845)

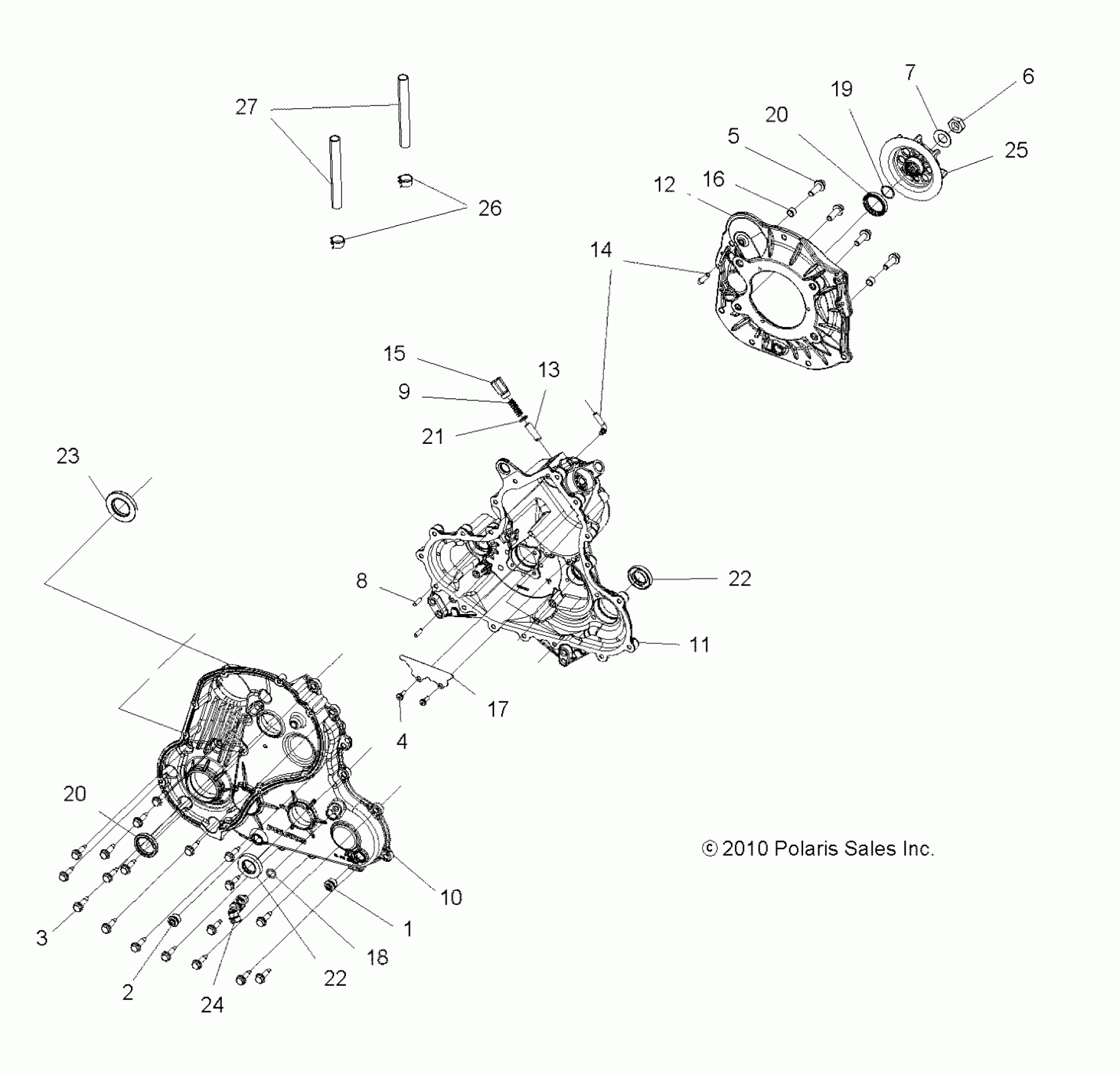

Polaris SPORTSMAN 550 - A11ZN55AA/AQ/AZ DRIVE TRAIN, MAIN GEARCASE (Built 3/01/11 and Before) - A11ZN55AA/AQ/AZ (49ATVGEARCASE1332845) Diagram
#
Description
Price
-
Asm., Transmission [Built 3/01/10 and Before]
1332845
$2,574.99
1
PLUG, M18 X 1.5
3234755
$27.99
2
PLUG, M18 X 1.5 MAGNETIC
3234756
$31.99
3
SCREW-HEXFLANGEHEAD,M8X1.25X30
3234898
$9.59
4
SCREW, TORX
3234309
$7.19
5
SCREW, HEX
3234634
$13.59
6
NUT-HEX M18X1.5
3234788
$23.99
7
Washer
3234638
$23.99
8
PIN, DOWEL 6 X 20
3234330
$7.19
9
SPRING, COMPRESSION
3234790
$19.99
10
GEARCASE, GTO COVER
3234689
$351.99
11
Gearcase, Main
3234690
$320.99
12
Bellhousing
3234691
Unavailable
13
BULLET DETENT
3234695
$31.99
14
TUBE, VENT
3234230
$9.59
15
PLUG, DETENT
3234715
$35.99
16
PIPE, KNOCK
3234765
$12.79
17
Deflector, Oil
3234725
$12.79
18
O-RING
3234302
$7.19
19
O-Ring
3234728
$9.59
20
SEAL, TRIPLE LIP
3234739
$31.99
20
SEAL, TRIPLE LIP
3234739
$31.99
21
O-RING
3234729
$13.75
22
SEAL, TRIPLE LIP
3234892
$35.99
22
SEAL, TRIPLE LIP
3234892
$35.99
23
SEAL, TRIPLE LIP
3234769
$43.99
24
SENSOR, SPEED
4012167
$100.38
25
Coupler
5136575
Unavailable
26
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
27
Line, Fuel
8450003-1525
Unavailable
