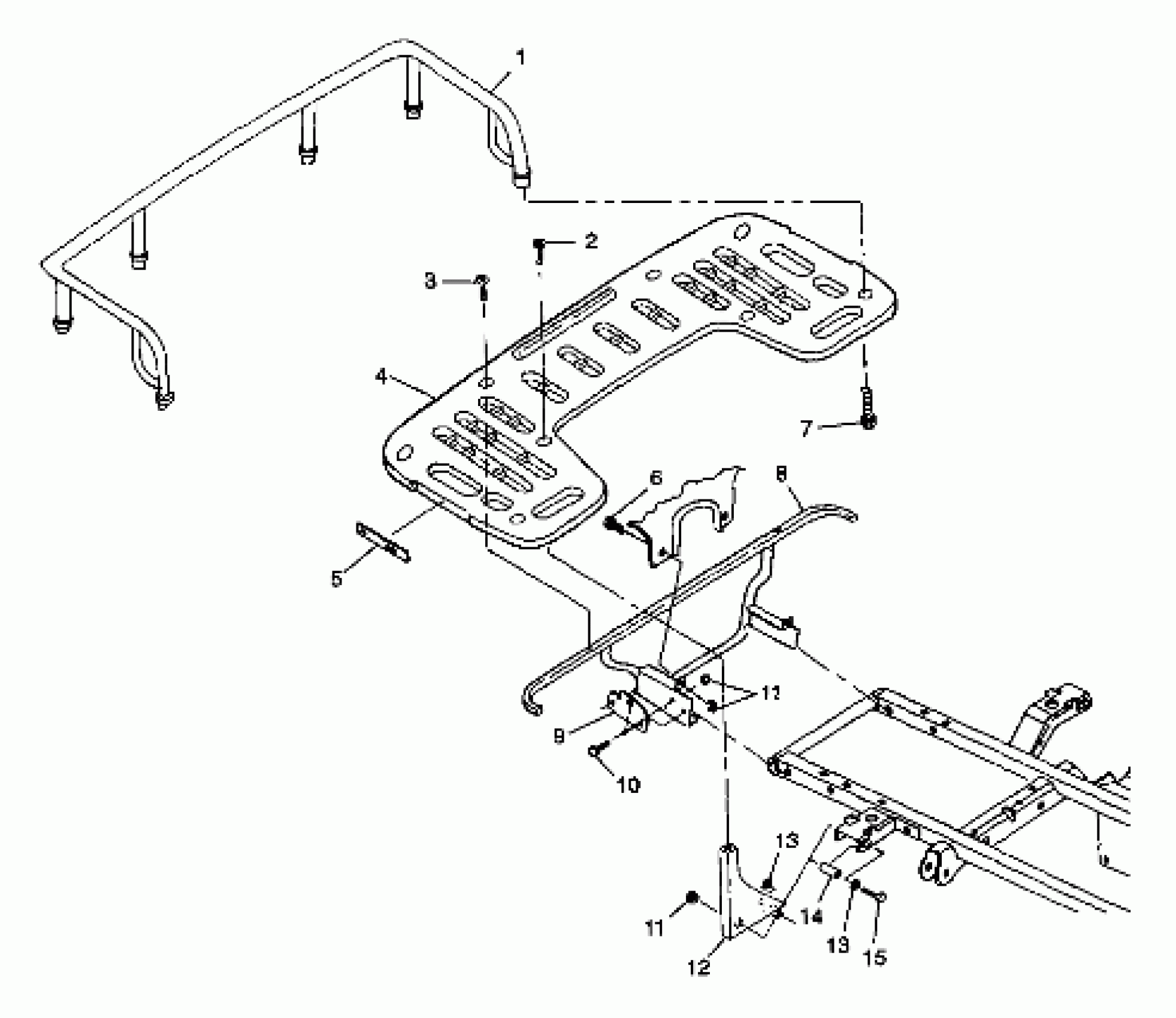

Polaris SPORTSMAN 500 - W98CH50AD REAR RACK MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a008) Diagram

Description

Price

RACK EXT,REAR,GENIV,3.5" (Incl. 7)

2871501

$73.95

SCREW(10)

7515193

$1.59

SCREW(10) Substituted by 7517685

7515194

$1.59

RACK ASM,REAR Substituted by 2670174-070 (Incl. Ref. 5 & Warning Decal)

2670174

Unavailable

REFLECTOR RED

2670070

$9.84

Screw

7517264

$3.97

SCREW(10)

7517208

$1.98

SUPPORT,R.RACK,(500),BLK

1040490-067

Unavailable

BRKT,SILENCER,FRAME,BLK

5241663-067

$10.51

BOLT(10)

7512329

$3.97

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

MNT,LH.FRT,R.RACK,BLK

1040524-067

Unavailable

MNT,RH.FRT,R.RACK,BLK.

1040525-067

Unavailable

WASHER(10) Substituted by 7558402

7555770

$0.99

WASHER(10) Substituted by 7558402

7555770

$0.99

Spacer

5333332-067

$6.59

SCREW(10)

7515385

$5.56
