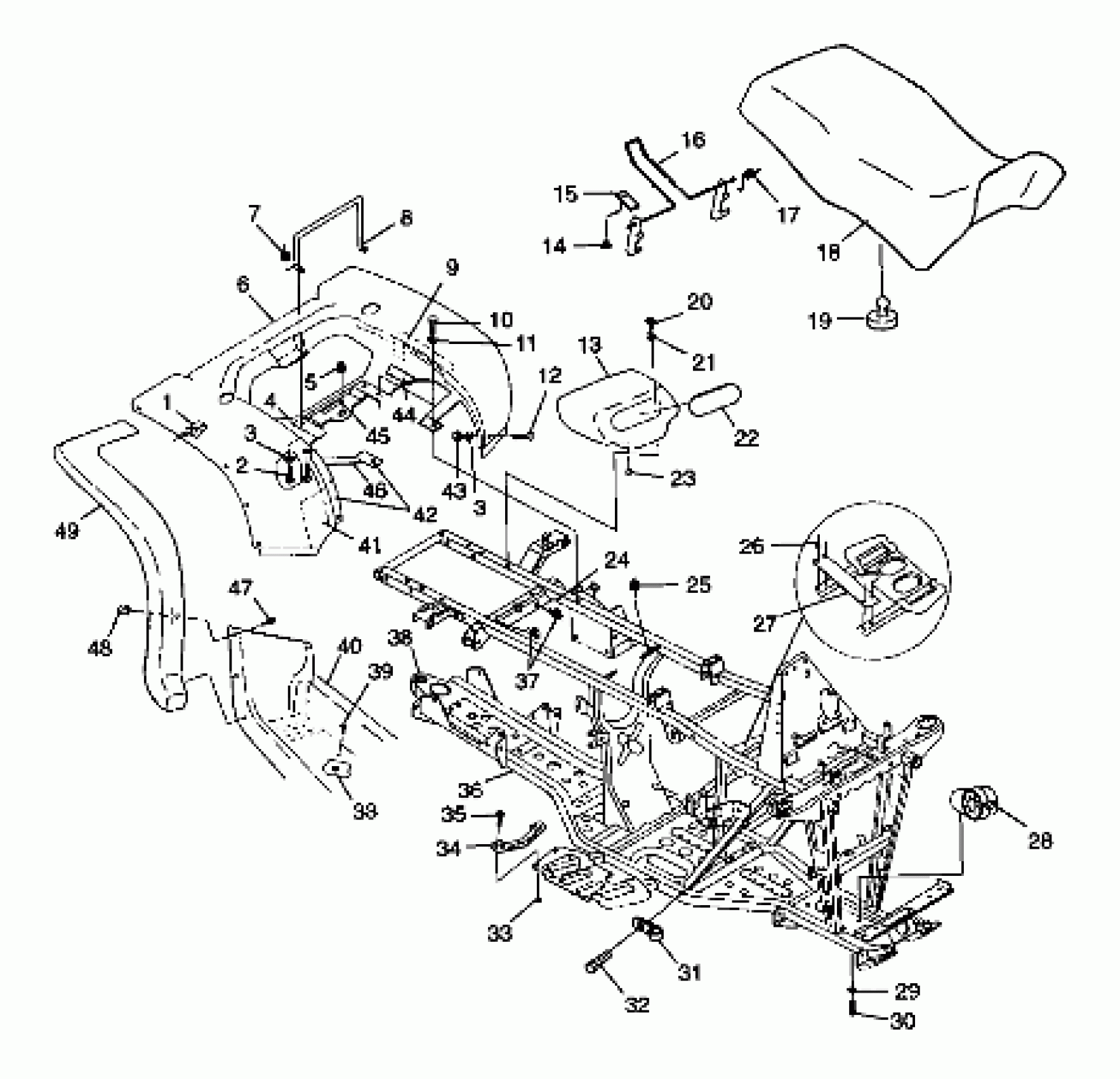

Polaris SPORTSMAN 500 - W98CH50AD REAR CAB and SEAT - S98CH50E(B) (4950135013a005) Diagram

#

Description
Price

1

RIVET(50)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

Grommet

5411042

Unavailable

6

CAB,REAR,GEN 4,P.RED (Option 2)*

5432117-136

Unavailable

6

CAB,REAR,GEN 4,OLV.GRN. (Option 1)*

5432117-191

Unavailable

7

NUT(10)

7541925

$1.49

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.79

10

SCREW(10)

7512242

$2.39

11

WASHER, FLAT(10)

7555859

$1.49

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.59

14

BLIND RIVET(50)

7621403

$1.49

15

BRACKET,LEVER RETAINER

5211033

$29.25

16

LATCH,SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

COVER,SEAT,BLK.

2681747-070

$141.65

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.91

18

SEAT ASM,BLACK Substituted by 2682441-070

2682360-070

$424.98

19

Bumper, Rubber

5410414

$3.19

20

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

21

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.59

24

FITTING,VENT,1/8"

7052192

Unavailable

25

NUT-WELL(10)

7541923

$5.59

26

RIVET,INTERLOCK,B(50)

7661638

$1.49

27

GUARD-CLUTCH, BLK

5241403-067

Unavailable

28

Asm., Gearcase (See Pg. D4 for Details)

-------

Unavailable

29

WASHER(10)

7552603

$1.49

30

BOLT(10) Substituted by 7512492 (E)(F)Swed. (E)(B)

7515458

Unavailable

30

SCREW(10) (C)(D)

7512492

$1.49

31

CLAMP,HOSE,1",NYLON

7080653

$4.79

32

SCREW,(10)

7512024

$4.79

33

NUT-LOCK(10)

7542122

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

SPACER,FOOTWELL

5432280

$8.79

35

SCREW

7517377

$4.79

36

FRAME,MAIN,BLK (E)(F)(Swed)(E)(B)

1040439-067

Unavailable

36

FRAME,MAIN,BLK. (C)(D)

1012758-067

$759.19

37

GROMMET

5410770

Unavailable

38

DECAL, HITCH Substituted by 7078261 (Swed) (E)

7072533

Unavailable

38

DECAL,HITCH Substituted by 7078261 (US)(Swed) (B)

7077542

Unavailable

39

SCREW Substituted by 7512279

7517376

Unavailable

40

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

40

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

5432118-070

$230.70

41

FOIL FOAM

5811111

$32.37

42

FOIL,FR,REAR CAB

5811106

$8.89

43

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

44

DECAL,CARB.INFO.

7073761

Unavailable

45

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

46

FOIL-FOAM,(6X1)

5811087

Unavailable

47

BOLT(10)

7512232

$1.49

48

NUT, SPEED(10)

7670057

$1.49

49

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

49

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
