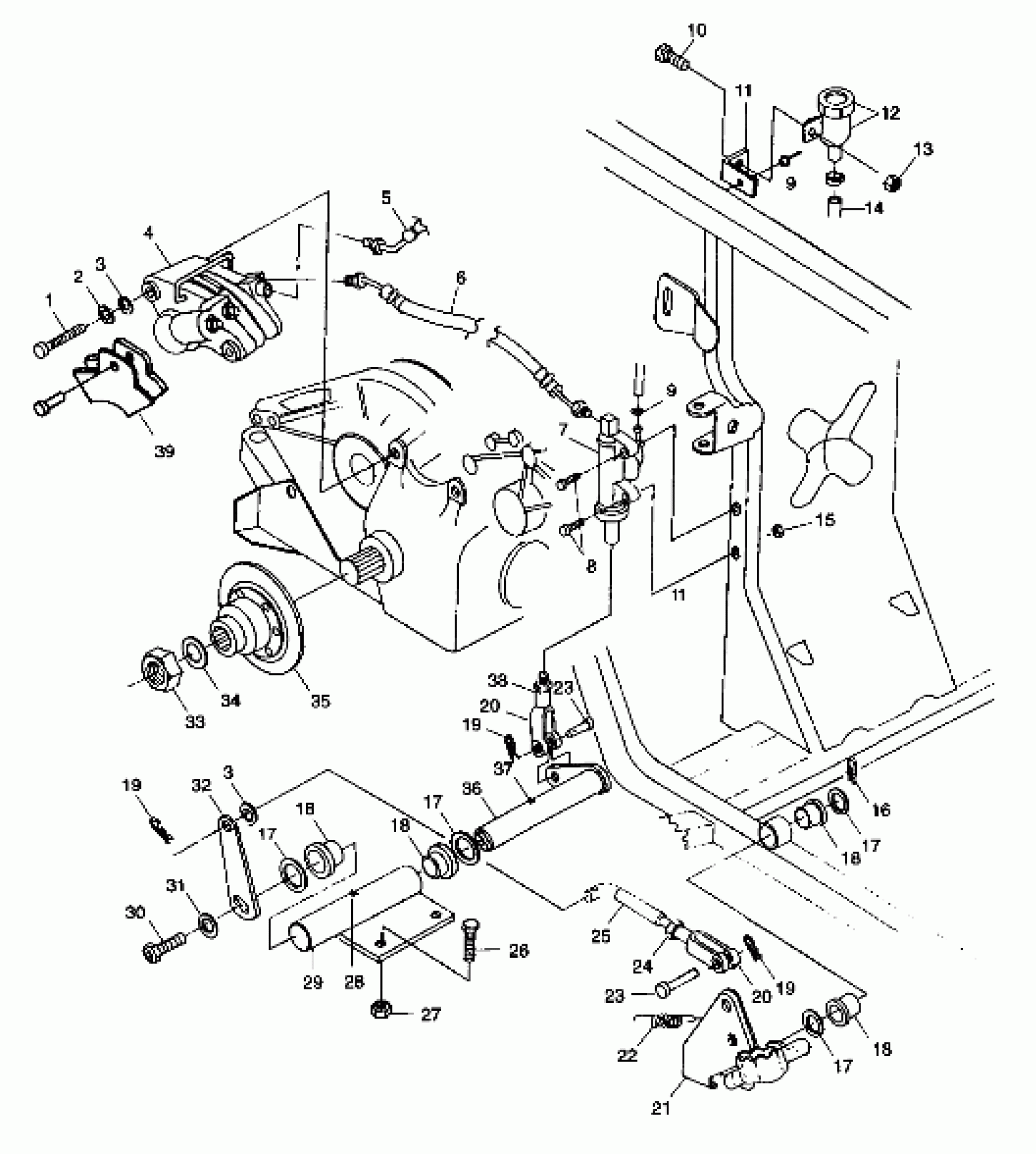

Polaris SPORTSMAN 500 - W98CH50AD REAR BRAKE/FOOT PEDAL - W98CH50A(E)(F) (4950135013c011) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

CALIPER ASM,BRAKE,WWOOD,4X4 Substituted by 1910366

1930818

$250.96

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1930851

Unavailable

7

MASTER CYL.ASM,R.BRAKE

1930819

Unavailable

8

SCREW(10)

7515177

$3.19

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

BOLT(10) Substituted by 7512240

7512111

Unavailable

11

DESC NOT_AVAILABLE

5242677

Unavailable

11

DESC NOT_AVAILABLE

5242677

Unavailable

12

RESERVOIR ASM,R.BRAKE

1930854

$35.99

13

NUT(10)

7542153

$1.59

14

HOSE,RESERVOIR,1/4"ID

1930855

Unavailable

15

RIVNUT(10)

7542130

$6.23

16

COTTER PIN(10)

7661401

$1.49

17

WASHER(10)

7555919

$4.99

17

WASHER(10)

7555919

$4.99

17

WASHER(10)

7555919

$4.99

17

WASHER(10)

7555919

$4.99

18

BUSHING-PEDAL PIVOT

5431107

$8.79

18

BUSHING-PEDAL PIVOT

5431107

$8.79

18

BUSHING-PEDAL PIVOT

5431107

$8.79

18

BUSHING-PEDAL PIVOT

5431107

$8.79

19

PIN, COTTER(10)

7661011

$4.79

19

PIN, COTTER(10)

7661011

$4.79

19

PIN, COTTER(10)

7661011

$4.79

20

CLEVIS,THREADED

7080644

Unavailable

20

CLEVIS,THREADED

7080644

Unavailable

21

BRAKE,FOOT,BLACK

1910255-067

Unavailable

22

SPRING, EXHAUST(10)

7042031

$5.65

23

CLEVIS(10)

7661843

$2.39

23

CLEVIS(10)

7661843

$2.39

24

NUT(10)

7542129

$4.79

25

ROD,BRAKELINK.WWOOD (Incl. 20,24,25)

1910254

Unavailable

25

ROD,BRAKE

5224805

Unavailable

26

BOLT(10)

7512539

$3.99

27

NUT, NYLOCK(10)

7542525

$4.79

28

DESC NOT_AVAILABLE

5131765

Unavailable

29

MT,PIVOT,RR BRAKE,BLK

1040612-067

Unavailable

30

SCREW(10)

7515148

$4.79

31

WASHER(10)

7558301

$1.49

32

LEVER,LINKAGE,LONG

5211839

Unavailable

33

NUT,NYLOC

7547046

$5.59

34

WASHER, SLOTTED(10)

7571620

$7.19

35

DISC ASM,BRAKE (US)

1910188

Unavailable

35

DISC ASM,BRAKE (Swed)

1910279

Unavailable

36

LINKAGE,BRAKE

1910256

Unavailable

37

ZERK,FITTING,THREADED(10)

7080433

$1.49

38

PLUNGER ASM,R.BRAKE (Incl. 20,24,38)

1910258

Unavailable

38

PLUNGER,BRAKE

5020941

Unavailable

39

KIT,BRAKEPAD,WW REAR

2201093

Unavailable
