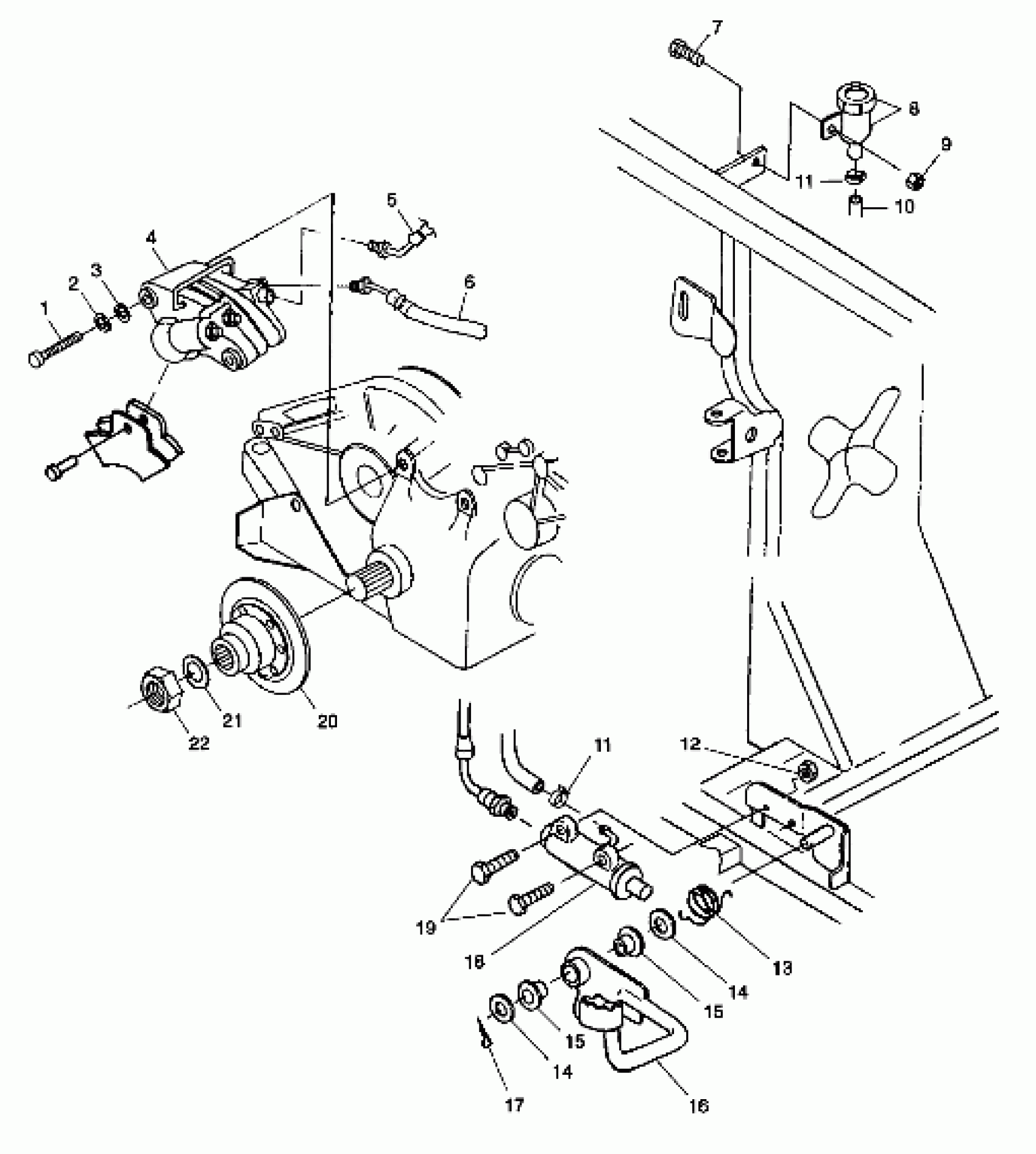

Polaris SPORTSMAN 500 - W98CH50AD REAR BRAKE/FOOT PEDAL - W98CH50A(C)(D) (4950135013c013) Diagram

#

Description
Price

1

BOLT(10)

7515497

$3.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

4

CALIPER ASM,BRAKE,WWOOD,4X4 Substituted by 1910366

1930818

$250.96

4

KIT,BRAKEPAD,R.AXLE,WW

2201189

$31.75

5

LINE,R.BRAKE,WWOOD

1930853

Unavailable

6

LINE,BRAKE CALIPER,W/FTNGS.

1910305

Unavailable

7

BOLT(10) Substituted by 7512240

7512111

Unavailable

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

NUT(10)

7542153

$1.59

10

HOSE,RESERVOIR,1/4"ID

1930855

Unavailable

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

NUT-LOCK(10)

7542122

$1.49

13

SPRING-TORSION,BRAKE

7041750

$8.79

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.79

15

BUSHING-PEDAL PIVOT

5431107

$8.79

16

ROD,BRAKE,BLK.

1910280-067

Unavailable

17

COTTER PIN(10)

7661401

$1.49

18

CYLINDER,MASTER,BRAKE,REAR

1910301

$166.01

19

SCREW(10)

7515158

$4.79

20

DISC ASM,BRAKE

1910188

Unavailable

21

WASHER, SLOTTED(10)

7571620

$7.19

22

NUT,NYLOC

7547046

$5.59
