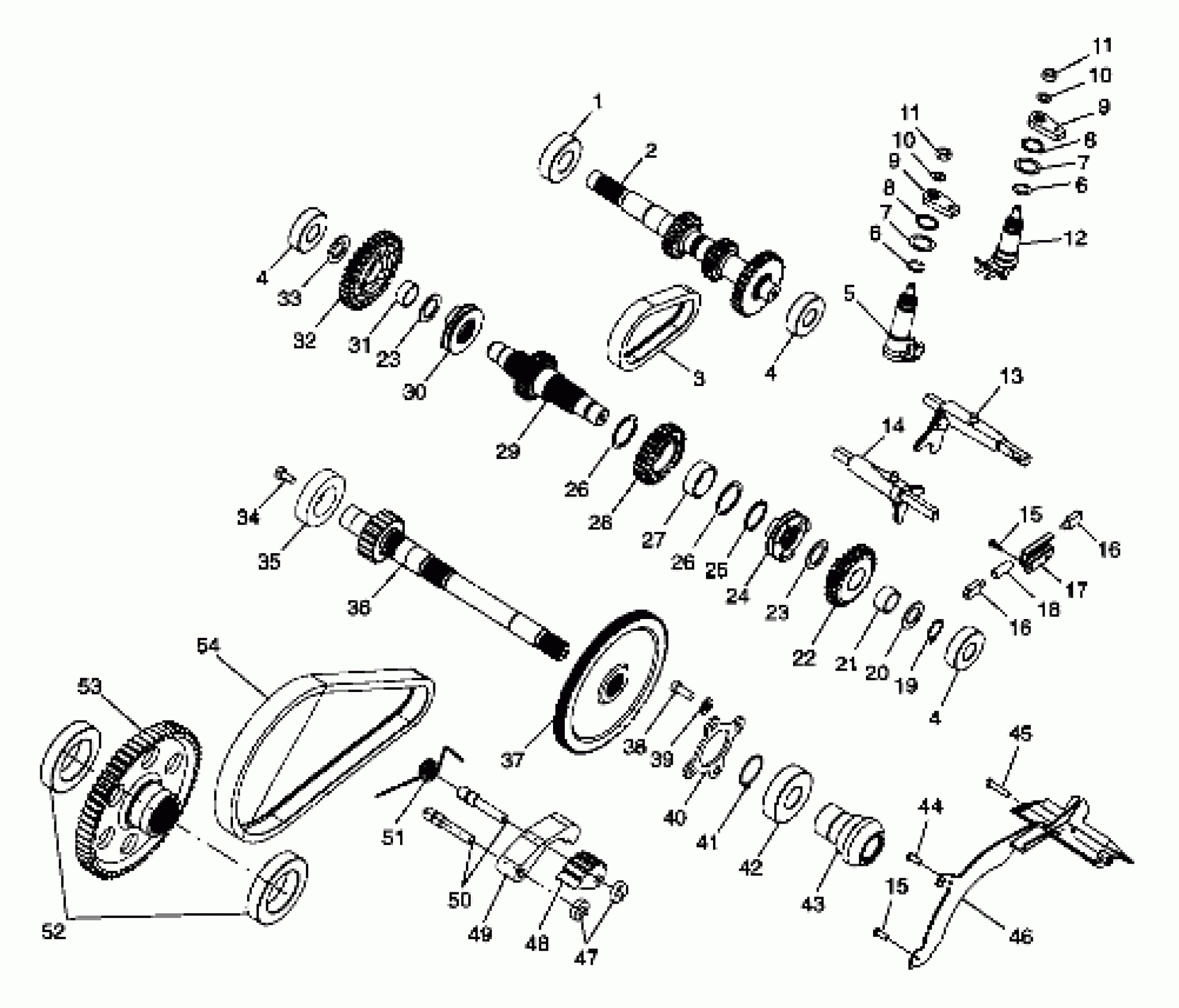

Polaris SPORTSMAN 500 - W98CH50AD GEARCASE (Internal Components) - W98CH50A(C)(D)(E)(F) (4950135013d003) Diagram

#

Description
Price

-

GEARCASE ASM,SHAFT,(PRD) (Incl. 1-54 and all on Pg. D6)

1341230

Unavailable

1

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

2

SHAFT,INPUT,31T,HCR

3233361

Unavailable

3

CHAIN,SILENT,34P

3233036

Unavailable

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

4

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

5

SHAFT,SHIFT,H/R

3233342

Unavailable

6

O-RING Substituted by 3233548

3233044

Unavailable

6

O-RING Substituted by 3233548

3233044

Unavailable

7

Washer

3233040

$9.59

7

Washer

3233040

$9.59

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

8

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

9

Bellcrank

3233153

$27.99

9

Bellcrank

3233153

$27.99

10

Washer

3233054

$6.46

10

Washer

3233054

$6.46

11

Nut

3233055

Unavailable

11

Nut

3233055

Unavailable

12

SHAFT,SHIFT,LOW

3233258

$65.46

13

FORK ASM,SHIFT,LOW

3233259

$159.99

14

FORK ASM,SHIFT,H/R

3233260

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

15

SCREW Substituted by 3233747

3233033

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

16

PIN,INTERLOCK

3233308

Unavailable

17

BRACKET,INTERLOCK

3233309

$20.63

18

Spring

3233032

$12.94

19

RING,RETAINING

3233177

$6.39

20

Washer

3233176

$9.59

21

BEARING,NEEDLE

3233017

$35.99

22

GEAR,30T,HCR

3233359

Unavailable

23

Washer

3233010

Unavailable

23

Washer

3233010

Unavailable

24

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

25

RING,RETAINING

3233029

$5.59

26

WASHER

3233012

Unavailable

26

WASHER

3233012

Unavailable

27

BEARING, NEEDLE

3233014

$43.99

28

SPROCKET, 24T

3233127

Unavailable

29

SHAFT,REV,29T,HCR

3233362

Unavailable

30

DOG,ENGAGEMENT,LOW

3233126

Unavailable

31

BEARING,NEEDLE

3233009

$39.99

32

GEAR, 33T

3233125

Unavailable

33

WASHER

3233007

Unavailable

34

BUSHING,SPEEDO.DRIVE

5020741

$9.03

35

BEARING

3233020

$47.99

36

SHAFT,CTR,DRIVE

3233485

Unavailable

37

GEAR,O/P,100T,HCR

3233360

Unavailable

38

Screw

3233262

$1.83

39

LOCK WASHER(10)

7552901

$1.49

40

COVER,CTR.DRIVE BRG.

3233263

Unavailable

41

RING,RETAINING

3233364

$6.39

42

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

43

GEAR,16T,SPIRAL BEVEL,SNORKEL

3233365

Unavailable

44

Screw

3233282

Unavailable

45

SCREW

3233283

$1.99

46

DEFLECTOR,OIL

3233284

Unavailable

47

WASHER

3233435

Unavailable

48

CAM,CHAIN TENSIONER

3233434

$12.79

49

SHOE,CHAIN TENSIONER

3233433

$27.99

50

PIN,DOWEL

3233432

$7.19

51

SPRING,TORSION

3233431

$23.99

52

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

53

SPROCKET,60T Substituted by 3233670

3233429

$187.14

54

CHAIN,SILENT

3233430

Unavailable
