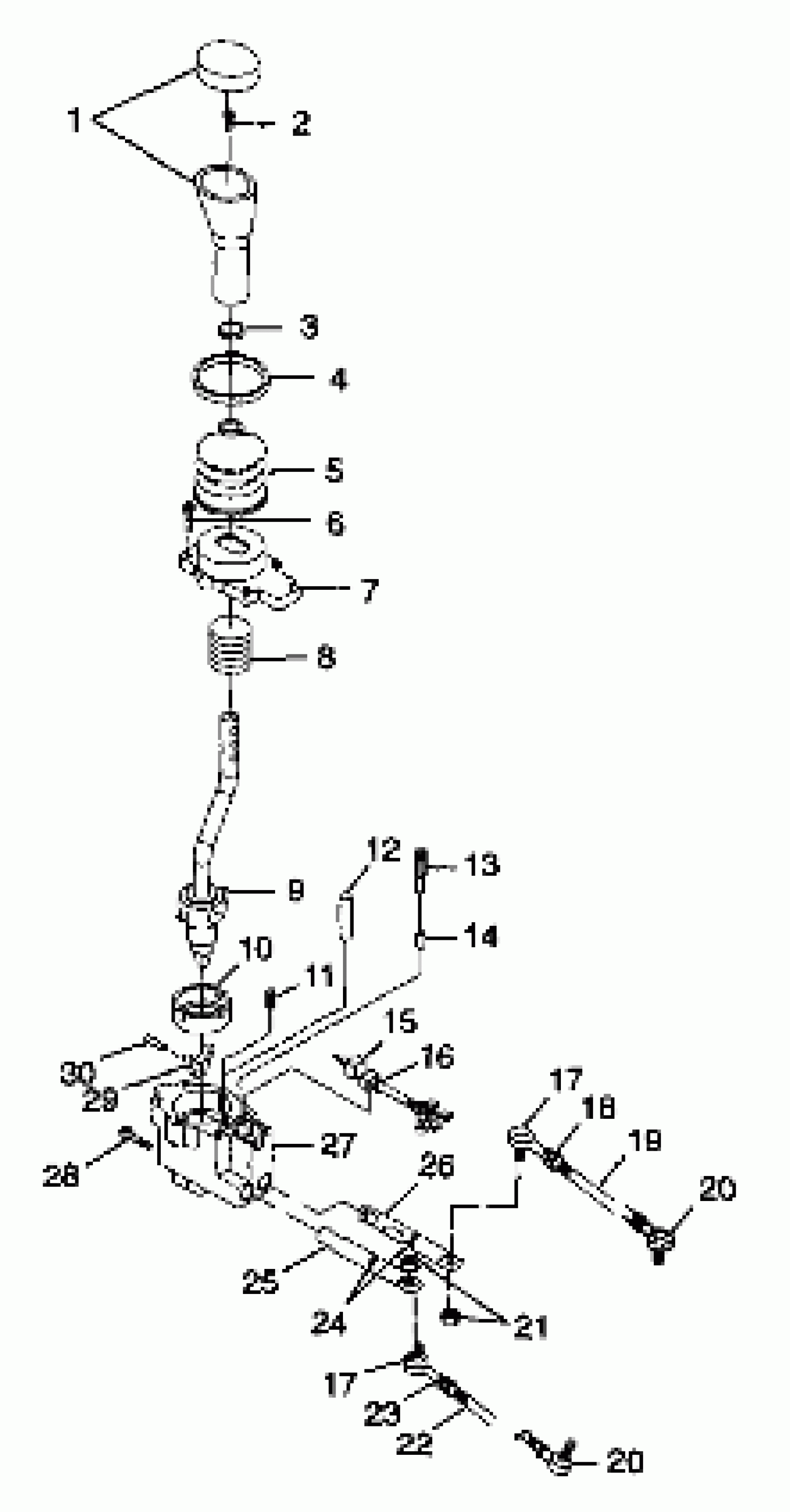

Polaris SPORTSMAN 500 - W98CH50AD GEAR SELECTOR - S98CH50E(B) (4950135013d005) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,500,LT (Incl. 1-16,24-27,29,30)

1341215

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

Unavailable

2

SCREW,(10)

7512024

$4.76

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$80.74

6

SCREW,MAGNIGARD COATED

3233498

Unavailable

7

COVER,GEAR SELECTOR

3233213

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE SUBASM,(GS MAGNUM)

3233227

$72.41

10

CUP,BEARING

3233063

$15.87

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$69.99

15

SWITCH,GEARSELECT,DATA Substituted by 3233209

3233208

$309.99

16

STRAP, WIRE

3233090

$1.97

17

ROD END,RH,6MM.

7061014

$75.99

17

ROD END,RH,6MM.

7061014

$75.99

18

NUT(10)

7546702

$1.19

19

ROD-SHIFT LINKAGE,HI RANGE

5020823

$68.79

20

ROD END,LH,6MM.

7061013

$75.99

20

ROD END,LH,6MM.

7061013

$75.99

21

NUT(10) Substituted by 7546703

7546707

$1.19

22

ROD,SHIFT LINKAGE,LOW RANGE

5020824

$68.79

23

NUT(10)

7546701

$3.97

24

O-RING

3233076

$6.46

25

SLIDE,LOW

3233500

Unavailable

26

SLIDE,HIGH/REV

3233499

Unavailable

27

BODY,GEAR SELECTOR

3233343

Unavailable

28

SCREW(10)

7515181

$2.38

29

INTERLOCK,BUTTERFLY

3233084

Unavailable

30

PIN,INTERLOCK

3233070

Unavailable
