Description

Price

1

BOLT(10)

7512325

$2.39

2

DISC, BRAKE Substituted by 5242935

5211326

$89.03

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

STUD(10)

7515523

$3.19

9

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl.3,7,8)

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

ROLLS

3250010

$35.99

12

SPRING,GARTER

3250032

$17.59

13

SPACER Substituted by 1321814

3250031

$24.99

14

Cam

3250030

$198.48

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(25X8-12) (25x8-12)

5410947

Unavailable

17

WASHER

7556004

$7.19

18

NUT, SLOTTED(10)

7542810

$3.19

19

COTTER PIN(10)

7661401

$1.49

20

O RING

5410470

$2.41

21

CAP,HUB,3-LOBE,AWD

5432611

$14.39

22

SCREW(10)

7512027

$1.49

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRT,6X12(SILVER) Substituted by 1520269-117 (Option 2)

1520179-117

$90.87

24

RIM,FRONT(SPORTSMAN) Substituted by 1520269-067 (Option 1)

1520179-067

Unavailable

25

VALVE-RIM

1525017

$5.59

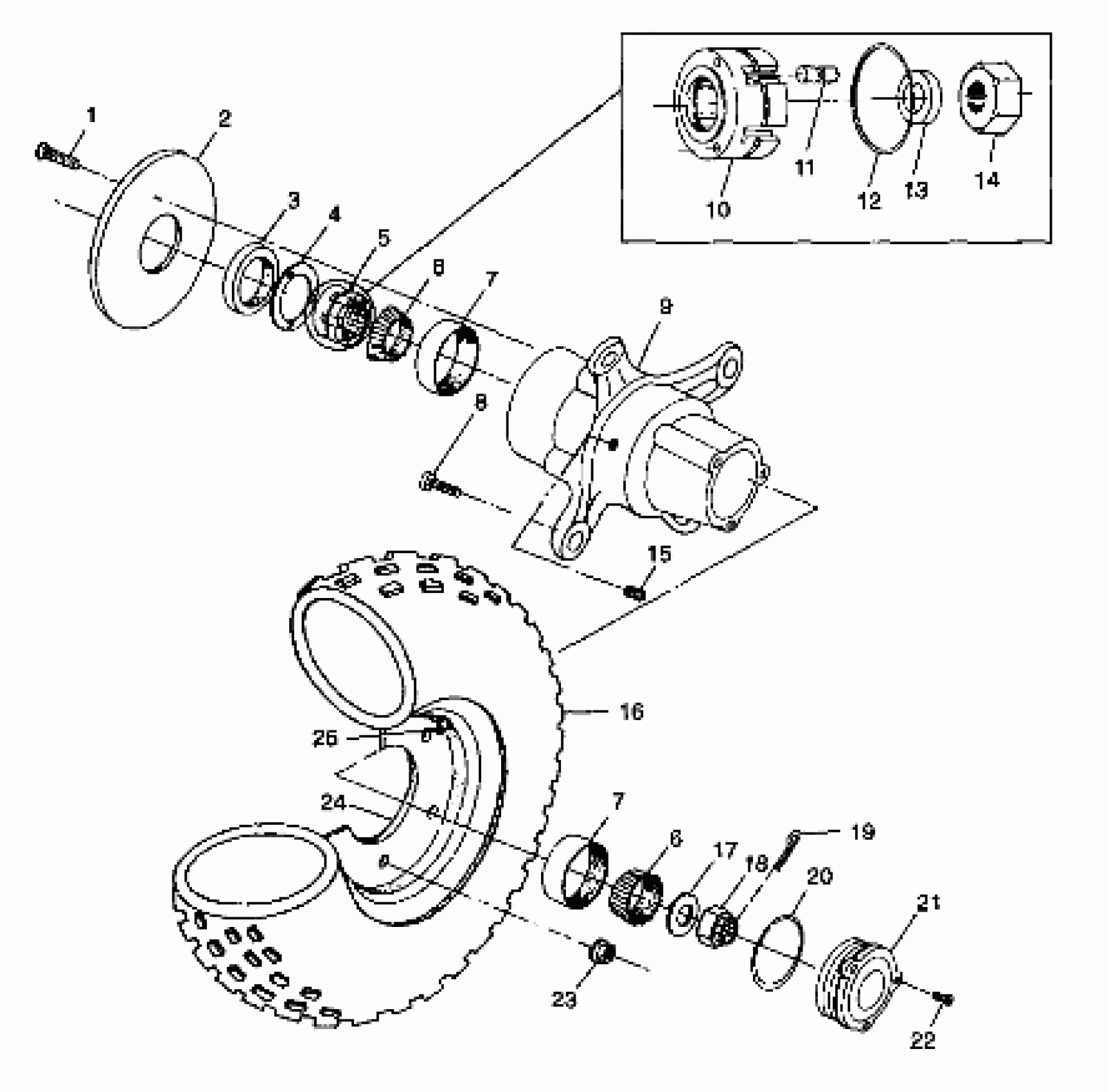

Polaris SPORTSMAN 500 - W98CH50AD FRONT WHEEL - S98CH50E(B) (4950135013b008) Diagram

BOLT(10)

DISC, BRAKE Substituted by 5242935

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

STUD(10)

HUB ASM,SHRT(3-LOBE)W/BRG RACE (Incl.3,7,8)

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814

Cam

PLUG,PIPE

TIRE,FR(25X8-12) (25x8-12)

WASHER

NUT, SLOTTED(10)

COTTER PIN(10)

O RING

CAP,HUB,3-LOBE,AWD

SCREW(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRT,6X12(SILVER) Substituted by 1520269-117 (Option 2)

RIM,FRONT(SPORTSMAN) Substituted by 1520269-067 (Option 1)

VALVE-RIM
