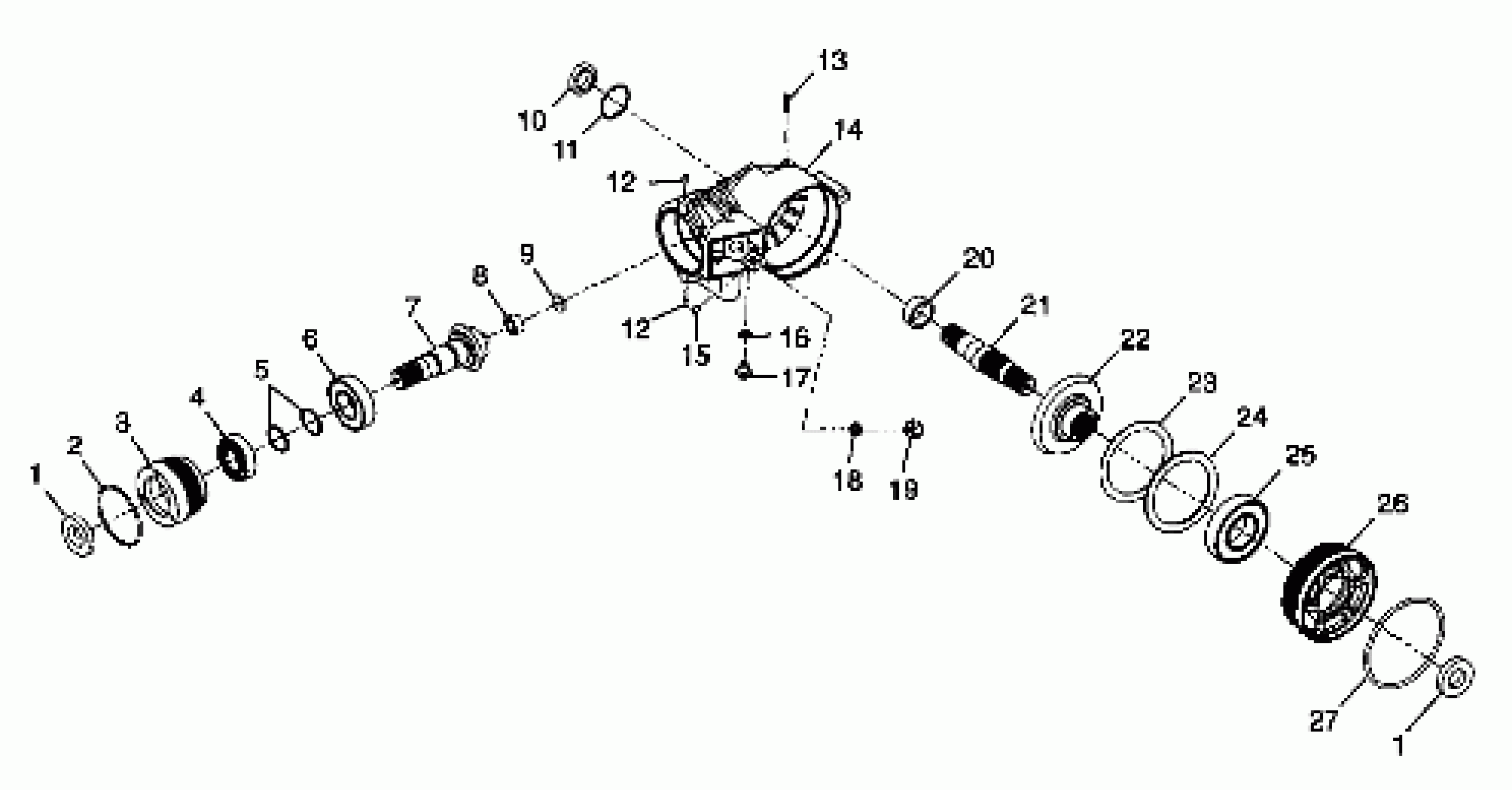

Polaris SPORTSMAN 500 - W98CH50AD FRONT HOUSING - S98CH50E(B) (4950135013d002) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341323 (See Footnote) (Incl. 1-27, and all on Pg. D4)

1341257

Unavailable

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

O-RING

3233315

Unavailable

3

COVER,F.HSG INPUT

3233316

Unavailable

4

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

RING,RETAINING

3233306

$4.79

6

BEARING

3233020

$47.99

7

SHAFT,INPUT,FRONT HSG.

3233489

Unavailable

8

BEARING,NEEDLE

3233479

Unavailable

9

WASHER

3233480

Unavailable

10

Seal

3233319

$27.99

11

RING,RETAINING

3233320

Unavailable

12

SCREW

3233321

$1.90

12

SCREW

3233321

$1.90

13

Vent

3233037

Unavailable

14

HSG,GEARCASE FRT.

3233481

Unavailable

15

RIVET

3233463

Unavailable

16

PLUG, WASHER

3233254

$7.99

17

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

18

Washer

3233324

$8.99

19

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

20

BEARING,NEEDLE

3233326

Unavailable

21

SHAFT,O/P,FR.HSG.

3233327

Unavailable

22

GEAR,31T,FRT.HSG.

3233328

$160.82

23

WASHER,THRUST

3233346

Unavailable

24

WASHER,THRUST

3233347

Unavailable

25

BEARING,BALL

3233329

Unavailable

26

COVER,FR.HSG,OUTPUT

3233330

Unavailable

27

O-RING

3233331

Unavailable
