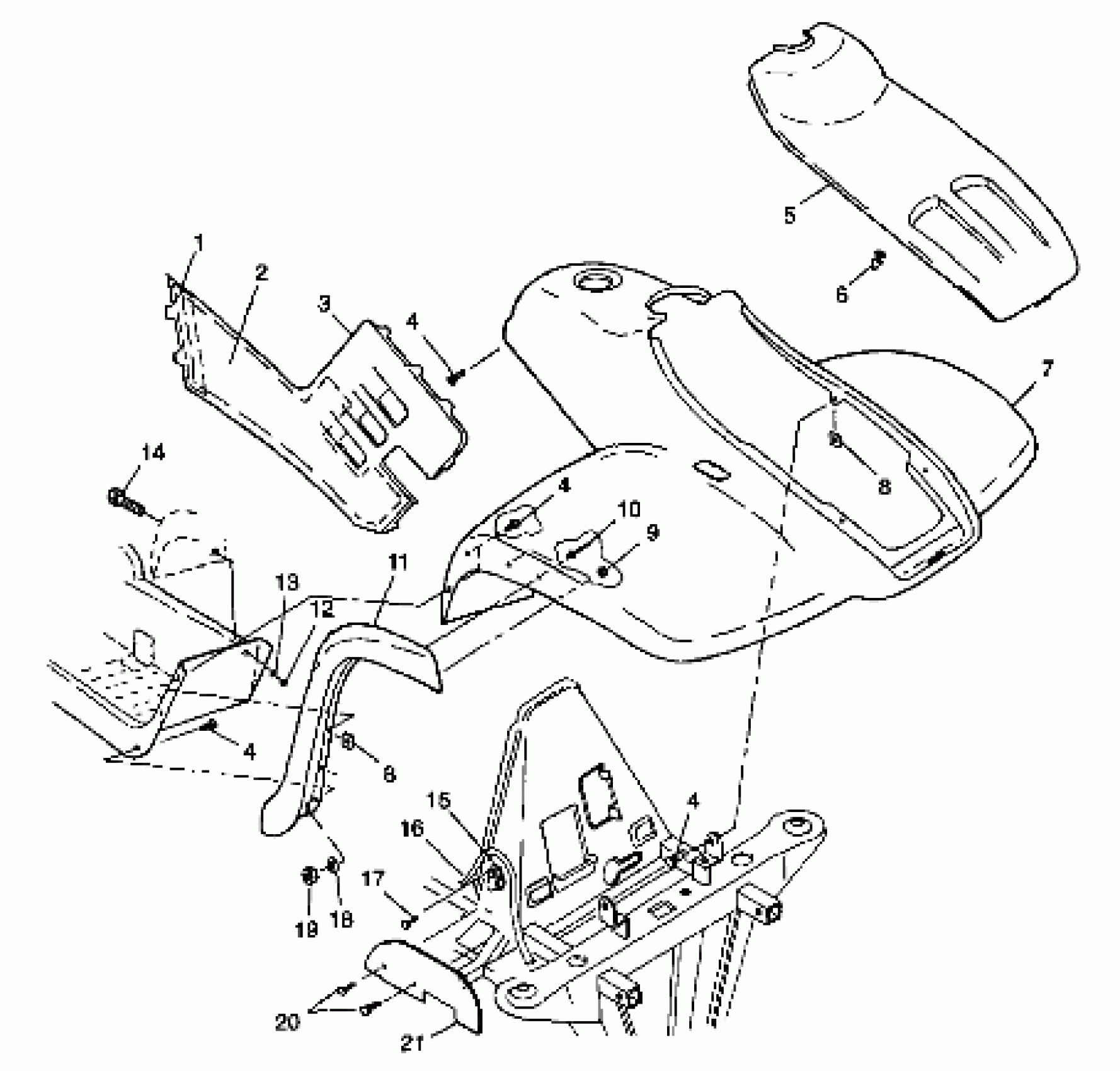

Polaris SPORTSMAN 500 - W98CH50AD FRONT CAB - S98CH50E(B) (4950135013a007) Diagram

#

Description
Price

1

FOIL,RH,SIDEPANEL,GEN IV

5811491

Unavailable

2

FOIL,FOAM,SIDEPANEL

5810996

$55.99

3

PANEL/FOIL ASM,RH,P.RED (Option 2)

2620085-136

Unavailable

3

PANEL/FOIL ASM,RH,OLV.GRN. (Option 1)

2620085-191

Unavailable

3

PANEL,LH,SIDE,P.RED (Option 2)

5431809-136

Unavailable

3

PANEL,LH,SIDE,OLV.GREEN (Option 1)

5431809-191

Unavailable

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

4

BOLT(10)

7512232

$1.49

5

COVER,FRONT,P.RED (Option 2)

5432088-136

Unavailable

5

COVER,FRONT,BLK (Option 1)

5432088-070

Unavailable

6

CLIP,SPRING(10)

7670085

$3.51

7

CAB ASM,FR,POR.RED Substituted by 2631987-136 (Option 2)

2631927-136

Unavailable

7

CAB ASM,FR,OLV.GRN. Substituted by 2631987-191 (Option 1)

2631927-191

Unavailable

8

NUT, SPEED(10)

7670057

$1.49

8

NUT, SPEED(10)

7670057

$1.49

9

PALNUT(10)

7670009

$2.39

10

RIVET(50)

7661645

$3.99

11

MUDGUARD,LH,FRT.BLK. Substituted by 5431798-070

5431798

Unavailable

11

MUDGUARD,RH,FRT.BLK. Substituted by 5431799-070

5431799

$84.99

12

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

13

WASHER(10)

7555792

$4.79

14

SCREW(10) Substituted by 7511989

7512085

Unavailable

15

CLAMP,HOSE,NYLON

7080693

$5.59

16

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

17

SCREW(10)

7512017

$4.79

18

WASHER(10) Substituted by 7558221

7555931

Unavailable

19

Nut

7670096

$1.59

20

CLIP-PLASTIC DART, NYLON

7670088

$1.59

21

SHIELD,DEFLECTOR Substituted by 5811917

5811489

$7.38
