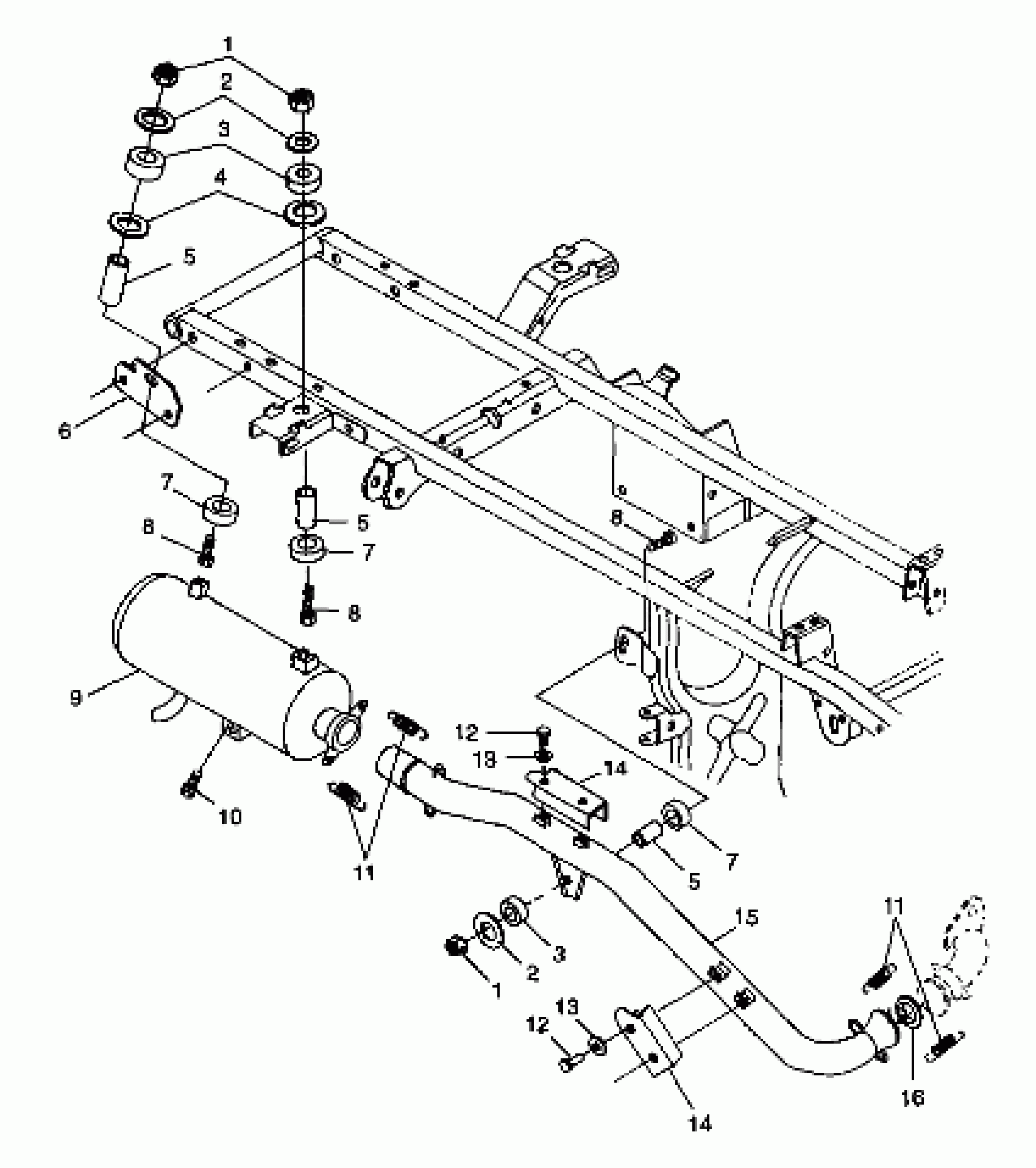

Polaris SPORTSMAN 500 - W98CH50AD EXHAUST SYSTEM - S98CH50E(B) (4950135013b001) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

WASHER,RUBBER

5410436

$1.59

3

WASHER,RUBBER

5410436

$1.59

4

BUSHING(10)

7555863

$2.39

5

BUSHING-RES. MT.

5010192

$6.39

5

BUSHING-RES. MT.

5010192

$6.39

5

BUSHING-RES. MT.

5010192

$6.39

6

Bracket, Silencer Frame (See Pg. A8, Ref. 9)

-------

Unavailable

7

DAMPENER

5410241

Unavailable

7

DAMPENER

5410241

Unavailable

7

DAMPENER

5410241

Unavailable

8

BOLT(10)

7515316

$2.39

8

BOLT(10)

7515316

$2.39

8

BOLT(10)

7515316

$2.39

9

SILENCER,EXH,BLK.

1260715-029

Unavailable

10

BOLT(10)

7512666

$2.39

11

SPRING, EXHAUST(10)

7042031

$5.65

11

SPRING, EXHAUST(10)

7042031

$5.65

12

SCREW(10)

7515197

$1.49

12

SCREW(10)

7515197

$1.49

13

WASHER(10)

7555935

$2.39

13

WASHER(10)

7555935

$2.39

14

SHIELD,HEAT,EXHAUST

5241678

Unavailable

14

SHIELD,HEAT,EXHAUST

5241678

Unavailable

15

PIPE,EXHAUST,BLK.

1260716-029

Unavailable

16

SEAL-EXHAUST

5240898

$15.99
