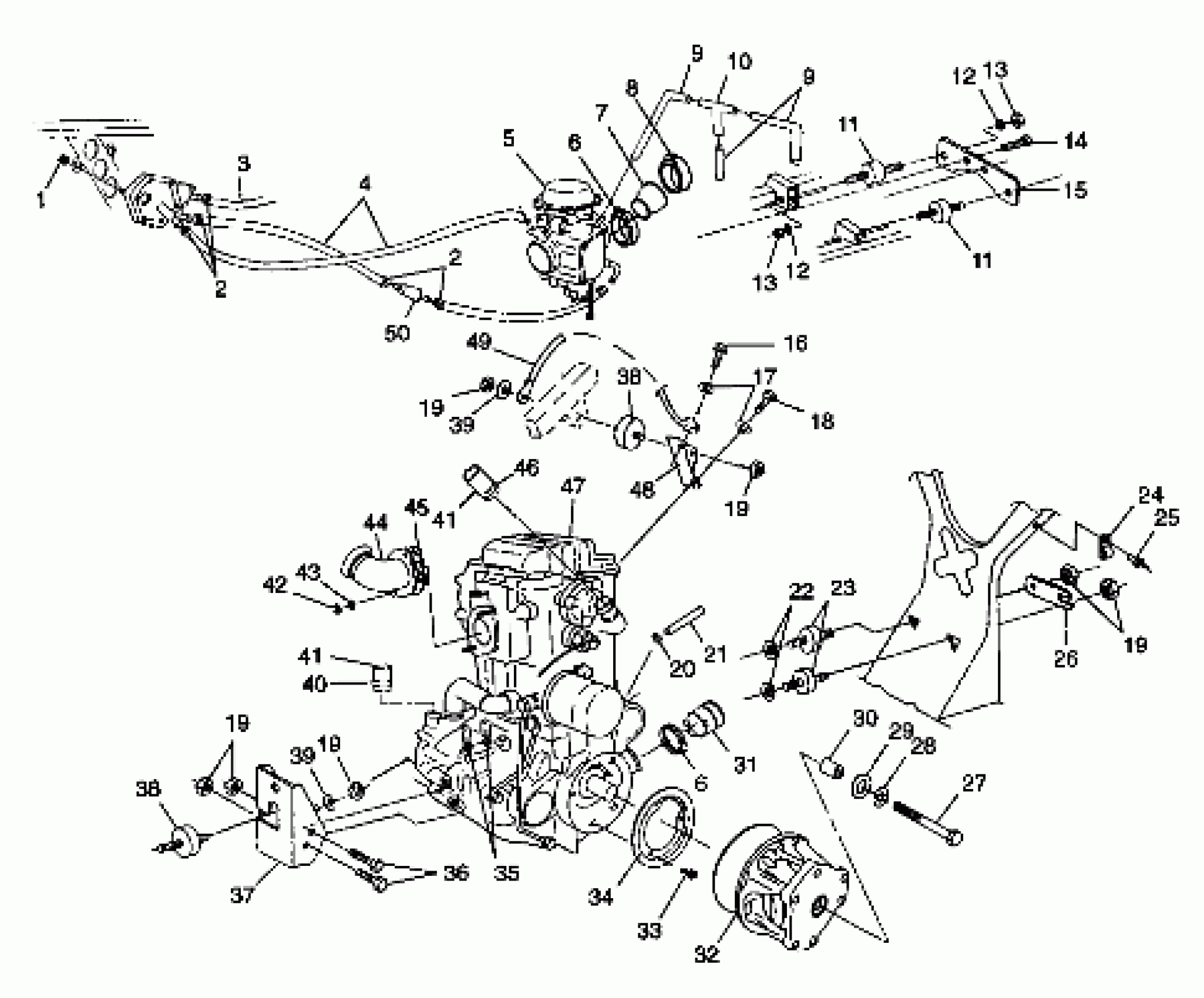

Polaris SPORTSMAN 500 - W98CH50AD ENGINE MOUNTING - W98CH50A(C)(D)(E)(F) (4950135013a013) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

2

HOSE CLAMP, RED

7080003

$1.19

3

HOSE,(.25 IDX1.75"LG.)

5811490

Unavailable

4

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

Asm., Carburetor (See Pg. D12, Ref. 47)

----

Unavailable

6

CLAMP,BAND,NARROW

7080413

$3.17

6

CLAMP,BAND,NARROW

7080413

$3.17

7

BOOT,CARB

5410995

Unavailable

8

CLAMP,BAND,NARROW

7080656

$4.76

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

10

FITTING, TEE

7052075

$9.52

11

Mount, Rubber

3110032

Unavailable

11

Mount, Rubber

3110032

Unavailable

12

WASHER(10)

7552605

$5.69

12

WASHER(10)

7552605

$5.69

13

NUT HEX(10)

7542105

$3.97

13

NUT HEX(10)

7542105

$3.97

14

Screw and Washer (See Pg. D9, Ref. 6)

----

Unavailable

15

STRAP,CARB.MT,BLK.

5211626-067

Unavailable

16

BOLT(10)

7512232

$1.19

17

LOCK WASHER(10)

7552901

$1.19

18

BOLT(10)

7512315

$4.76

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

19

NUT LOCK(10)

7542403

Unavailable

20

CLAMP,HOSE,SPRING

7080694

$6.64

21

Hose, Breather (See Pg. B3, Ref.21)

----

Unavailable

22

WASHER, FLAT(10)

7555815

$3.97

23

MOUNT,RUBBER,FRONT

3110046

Unavailable

24

CLAMP,NYLON,CABLE(10)

7080539

$4.76

25

RIVET(50)

7621462

$1.19

26

STRAP,FRAME SUPPORT,BLK

5224658-067

Unavailable

27

BOLT(10)

7512566

$33.24

28

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

30

BUSHING-.437 X.770 X.50

5430261

$7.14

31

BOOT,CLUTCH INTAKE

5410421

$11.32

32

Asm., Drive Clutch, ATV-06 (See Pg. C4, Ref. 16)

----

Unavailable

33

Screw and Washer (See Pg. D9, Ref. 6)

----

Unavailable

34

Bracket, Retainer, Seal (See Pg. C6, Ref. 24)

----

Unavailable

35

CLAMP-HOSE,.875-SS

7080474

$8.54

36

BOLT(10)

7515417

$4.76

37

MOUNT,FR.ENGINE,BLK.

5241150-067

Unavailable

38

MOUNT,RUBBER,TOP

3110044

$44.51

38

MOUNT,RUBBER,TOP

3110044

$44.51

39

WASHER(10)

7555801

$3.97

39

WASHER(10)

7555801

$3.97

40

CLAMP,HOSE,(10)

7080614

$7.14

41

HOSE,3/4X22"

5411410

Unavailable

41

HOSE,3/4X22"

5411410

Unavailable

42

NUT(10)

3080285

Unavailable

43

WASHER LOCK ,(10)

3080530

$3.17

44

MANIFOLD,BLK

1260771-029

$162.99

45

Gasket, Exhaust (See Pg. D8, Ref. 20)

----

Unavailable

46

CLAMP,HOSE,1.25,WORM DRIVE

7080696

$5.56

47

ENG.(S.B.)EH50PLE-01 (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is require

3085556

Unavailable

48

MOUNT,ENG,TOP,BLK

5241453-067

Unavailable

49

CABLE,GND-ENGINE

4010132

Unavailable

50

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
