- SPORTSMAN 500 - W98CH50AD
ELECTRICAL/TAILLIGHT - S98CH50E(B) (4950135013c007)

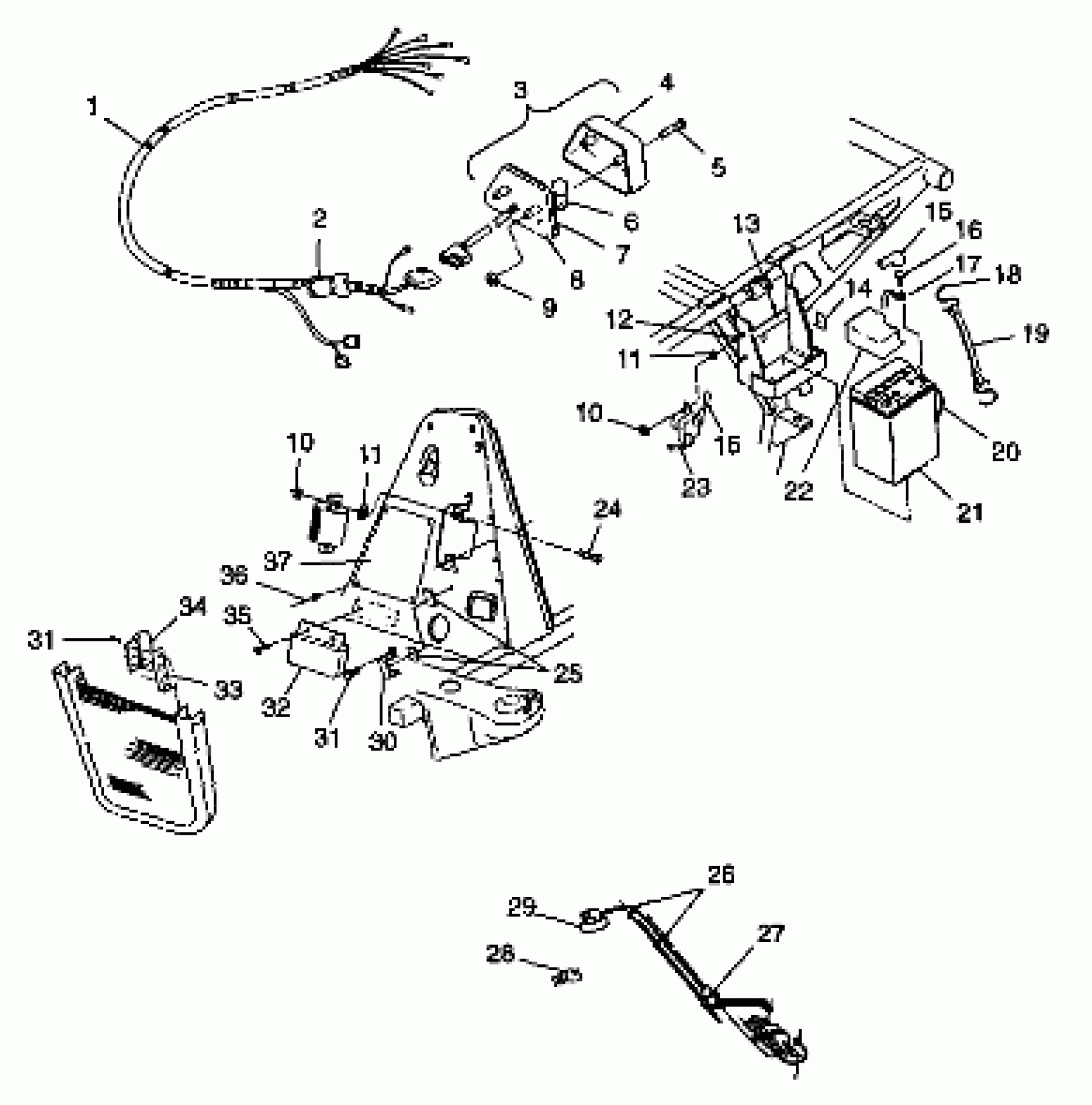

Polaris SPORTSMAN 500 - W98CH50AD ELECTRICAL/TAILLIGHT - S98CH50E(B) (4950135013c007) Diagram
#
Description
Price
1
HARNESS-MAIN WIRE
2460544
Unavailable
2
KIT,CKT.BRKR,20 AMP
2200593
$63.99
3
TAIL LIGHT ASM. (Incl. 4-9)
2432034
$55.99
4
LENS,TAILLIGHT
4032046
$32.37
5
Screw, Taillight
4032029
$4.79
6
BULB,TAILLIGHT
4030043
$6.46
7
GASKET,TAILLIGHT
4032045
$4.03
8
BACKING,TAILLIGHT
4032064
$83.99
9
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
10
NUT(10)
7541925
$1.49
10
NUT(10)
7541925
$1.49
11
WASHER(10)
7571602
$4.79
11
WASHER(10)
7571602
$4.79
12
SCREW(10)
7512027
$1.49
13
PAD-BATTERY
5810290
$7.27
14
DECAL, BATTERY [No Longer Available]
7072606
Unavailable
15
CABLE,BATT/SOLENOID,RED
4010094
Unavailable
15
CABLE,BATT/SOLENOID,RED
4010094
Unavailable
16
BOLT,BATT,KIT(SHORT)
2200361
$3.99
17
CABLE,BATT/ENG.,BLK.
4010095
Unavailable
18
HOOK-BATT.H/D(10)
7010032
$1.59
19
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
20
TUBE,BATTERY VENT
5432077
Unavailable
21
Battery
4140006
$99.99
22
COVER,BATTERY
5431769
$14.39
23
CABLE,SOL/STARTER
4010093
$47.99
24
SCREW(10)
7512007
$3.99
25
PAD,RACK MOUNT
5810455
$3.19
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
27
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
$2.41
28
PIGTAIL, POWER
2460442
$12.39
29
POWER ASM,12V
2410022
Unavailable
30
BRACKET-CDI
5241416
$5.75
31
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
31
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
32
LIMITER,RPM,LR-83,HUB GROUND
4060205
Unavailable
33
HEATSINK RECT.
5131036
Unavailable
34
RECTIFIER,FULL WAVE
4060173
Unavailable
35
SCREW,(10)
7512024
$4.79
36
RIVET,(50)
7621336
$1.59
37
BOARD, TERMINAL Substituted by 4040063
4040064
Unavailable
