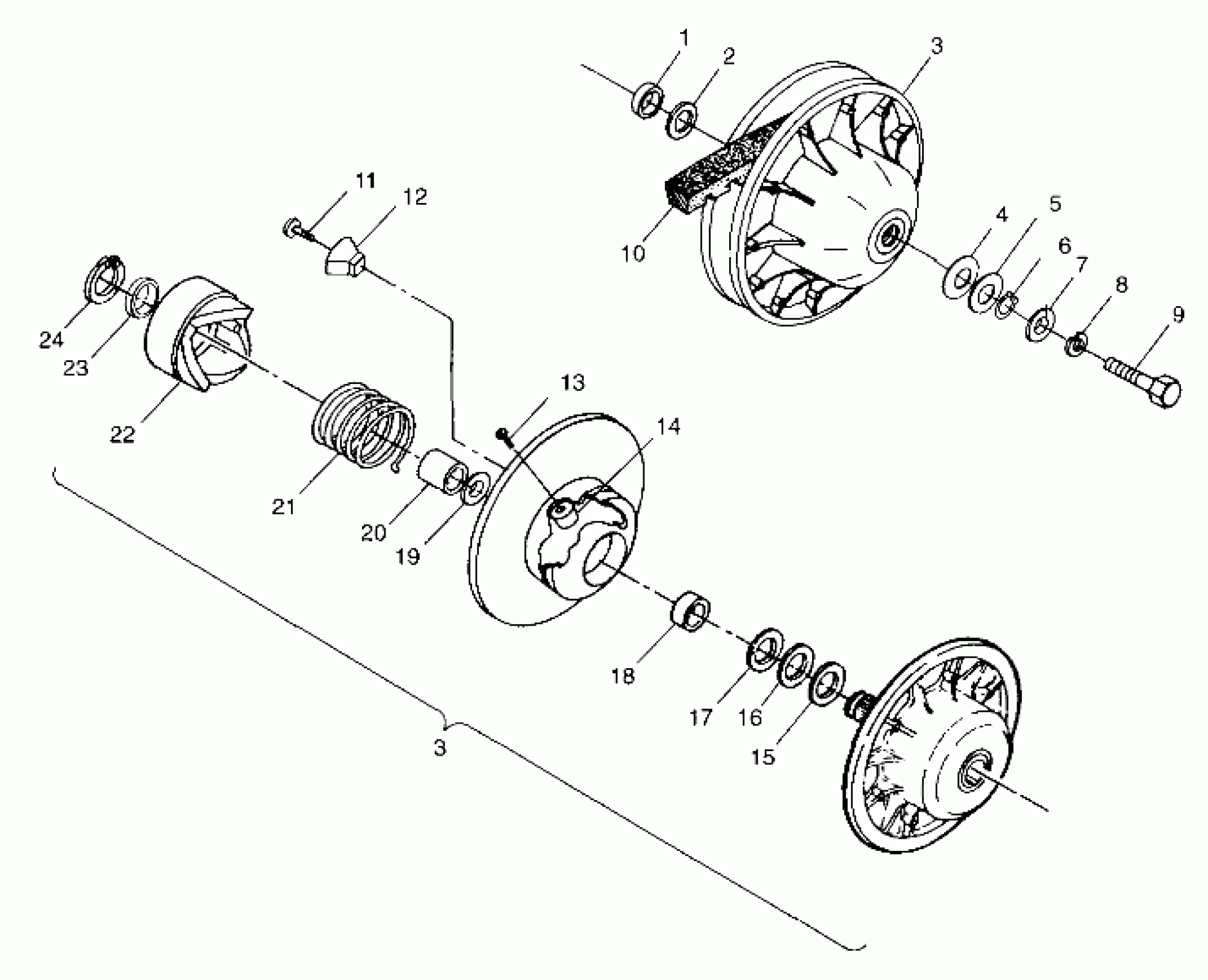

Polaris SPORTSMAN 500 - W98CH50AD DRIVEN CLUTCH - W98CH50A(C)(D)(E)(F) (4950135013c005) Diagram

#

Description
Price

1

SPACER Substituted by 5010379

5010266

Unavailable

2

BUSHING(10)

7556401

Unavailable

3

CLUTCH,DRVN,BRKG,4-STRK.

1322190

Unavailable

3

CLUTCH,DRVN,BRKG,4-STRK.

1322190

Unavailable

4

Washer

7556013

Unavailable

5

Bushing

7556010

Unavailable

6

RING,RETAIN.HD.

7710461

Unavailable

7

WASHER, DOMED(10)

5220646

$2.39

8

LOCK WASHER(10)

7552901

$1.49

9

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

10

BELT,DRIVE,ENG.BRK.(5)

3211069

$67.99

11

BOLT(10)

7511854

$1.49

12

BUTTON,RAMP

5430766

Unavailable

13

SCREW, SPECIAL

7517323

$13.59

14

ROLLER,TAPER,ENG.BRAKE Substituted by 1321977

3250039

Unavailable

15

WASHER(10) (.020)

7555898

Unavailable

16

WASHER(10) (.025)

7556076

Unavailable

17

WASHER(10)

7556804

Unavailable

18

Bearing

3585710

$19.99

19

WASHER-2.06X2.62X.105-Y

5211115

$3.99

20

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

21

SPRING,DRVN,4-STK,WHT/GRN

7041636

Unavailable

22

RAMP,STA.BRAKE,4STRK,MACH

5131674

$83.99

23

SPACER(10)

5210752

$1.59

24

RING,RET.

7710448

$3.19
