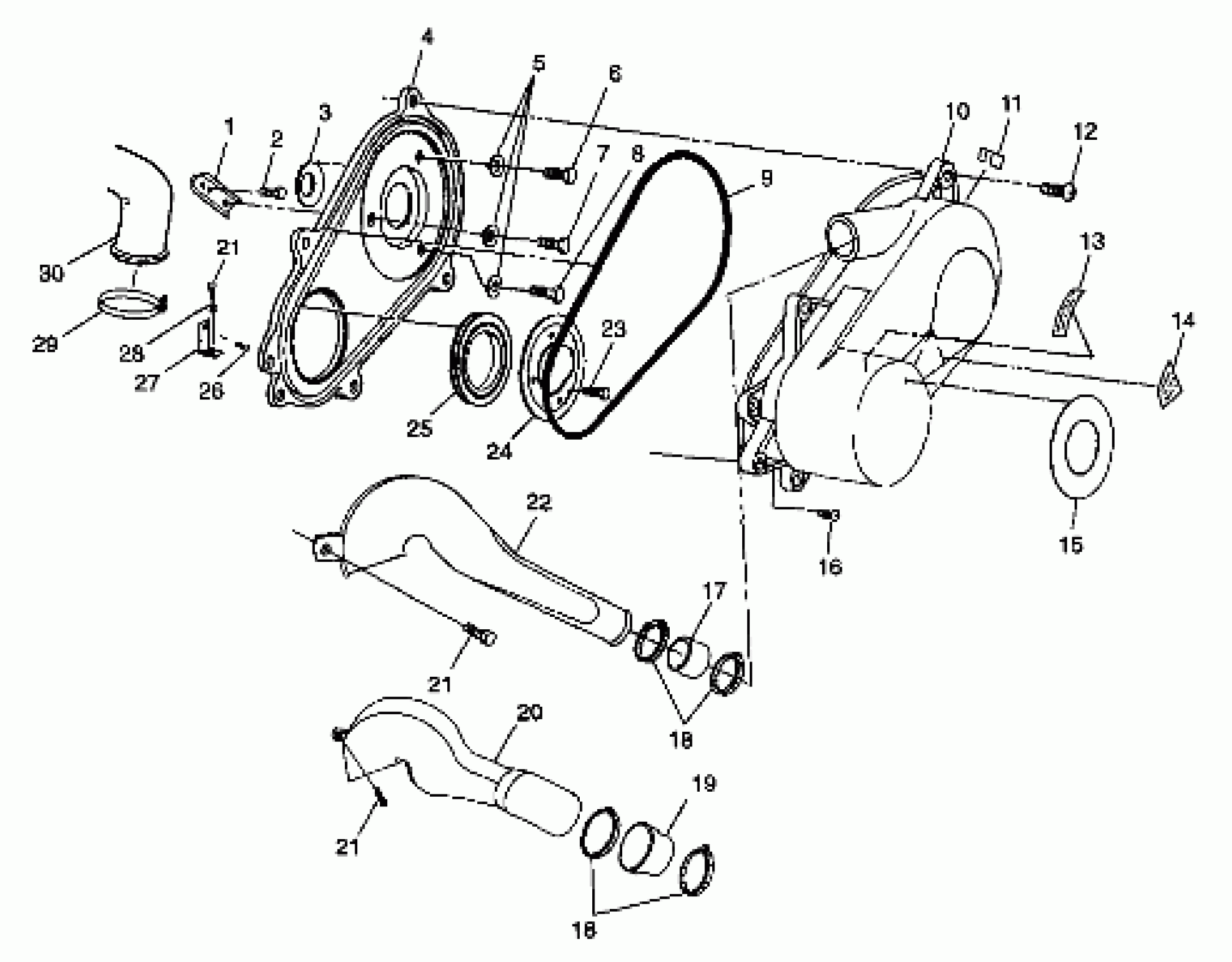

Polaris SPORTSMAN 500 - W98CH50AD CLUTCH COVER - S98CH50E(B) (4950135013c006) Diagram

#

Description
Price

1

BRKT,R.CLUTCH CVR,BLK.

1040519-067

Unavailable

2

BOLT(10)

7512240

$3.99

3

SEAL,COVER CASE

5410489

$13.59

4

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 12,16,26)

2201160

$121.41

5

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

6

BOLT(10)

7512247

$2.39

7

BOLT(10)

7512277

$4.79

8

BOLT(10)

7512278

Unavailable

9

SEAL,CLUTCHCOVER

5521301

$30.88

10

COVER,CLUTCH,OUTER,HV Substituted by 5433540 (AC)(AD)(Swed)

5432849

$169.87

10

COVER,CLUTCH,FRONT Substituted by 5433542 (AE)(AF)(Swed)

5431961

$173.74

11

CLIP,CLUTCH COVER(10)

7670051

$2.99

12

SCREW(10)

7512093

$1.49

13

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

14

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

15

DECAL"AUTO./EBS",CLUTCH

7077666

Unavailable

16

SCREW(10)

7512094

$1.59

17

BOOT,CLUTCH INTAKE (AE)(AF)(Swed)

5410421

$11.19

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

18

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

19

BOOT,DUCT,HI-FLOW (AC)(AD)(Swed)

5411489

Unavailable

20

DUCT,CLUTCH OUTLET,16.6 Substituted by 5433980 (AC)(AD)(Swed)

5432947

Unavailable

21

BOLT(10)

7512232

$1.49

21

BOLT(10)

7512232

$1.49

21

BOLT(10)

7512232

$1.49

22

DUCT,OUTLET,CLUTCH (AE)(AF)(Swed)

5432145

Unavailable

23

Screw & Washer (See Footnote) (See Crankcase Page D9, Ref. 6)

-------

Unavailable

24

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

25

Seal, Cover Case

5410575

Unavailable

26

SCREW(10)

7512095

$4.79

27

BRKT-CLUTCH COVER,BLK

5241156-067

Unavailable

28

WASHER(10)

7555935

$2.39

29

CLAMP, NARROW BAND(10)

7080511

$4.79

30

Duct, Air Inlet, Clutch (See Air Box Page B3, Ref. 13)

-------

Unavailable
