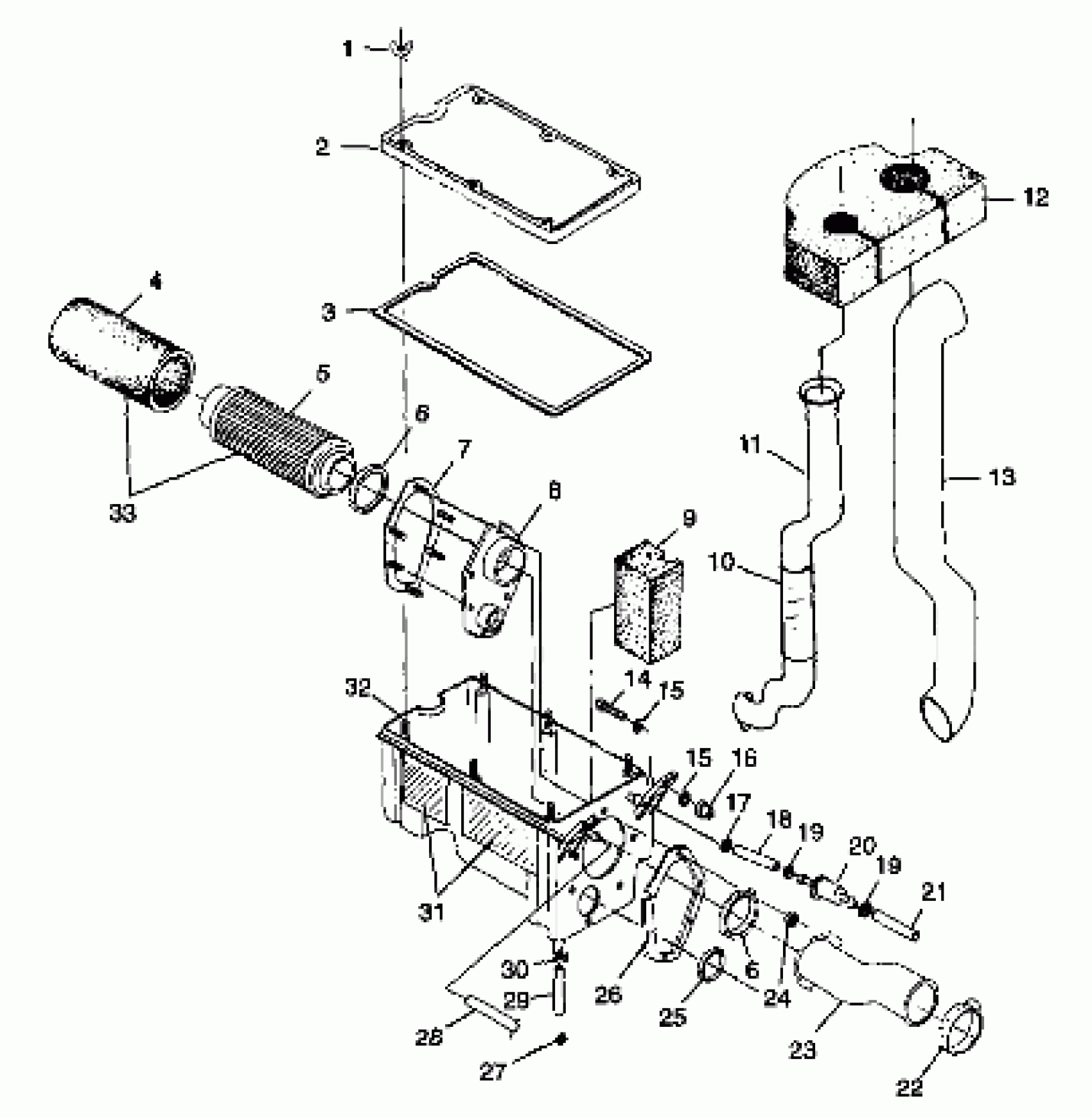

Polaris SPORTSMAN 500 - W98CH50AD AIR BOX - S98CH50E(B) (4950135013b003) Diagram

#

Description
Price

1

NUT,WING(10)

7542127

$1.49

2

COVER, AIRBOX

5432142

Unavailable

3

SEAL,COVER,AIR INTAKE

5410996

$11.99

4

FOAM, FILTER

5811137

$11.19

5

FILTER,AIR INTAKE

7080595

Unavailable

6

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

6

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

7

PLATE,RETAINER

1040463

Unavailable

8

BOOT-SILENCER

5411014

Unavailable

9

FILTER,FOAM,EH50

5811532

Unavailable

10

FOIL-TAPE,AIR BOX

5811373

$2.47

11

DUCT,INLET SILENCER

5432144

Unavailable

12

SEAL-FOAM

5811309

Unavailable

13

DUCT-AIR INLET, CLUTCH

5432086

Unavailable

14

SCREW(10)

7512279

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

16

Nut, Well (See Pg. A6, Ref. 25)

-------

Unavailable

17

CLAMP,HOSE

7080699

$1.59

18

DESC NOT_AVAILABLE

8450073

Unavailable

19

CLAMP,HOSE(10)

7080544

Unavailable

19

CLAMP,HOSE(10)

7080544

Unavailable

20

FILTER,BREATHER,IN LINE

2530029

$6.39

21

HOSE,BREATHER(50.5 CM.)

5411477

Unavailable

22

CLAMP,BAND,NARROW

7080656

Unavailable

23

DUCT-CARB, INLET

5432143

Unavailable

24

NUT(10)

7541925

$1.49

25

CLAMP-HOSE, 1.750-SS

7080560

$11.19

26

PLATE,AIRBOX RETAINER,ZINC

5241339

Unavailable

27

Plug, Trap

5432377

Unavailable

28

LINE,BREATHER,120CM,SPL

5411349

Unavailable

29

FUEL LINE

8450059-150

Unavailable

30

CLAMP,HOSE,(10)

7080650

$3.99

31

FOIL-TAPE, AIR BOX

5811138

Unavailable

32

BOX,AIR INTAKE

5432667

$131.99

33

FILTER ASM, AIR (Incl. 4,5)

1253144

$31.99
