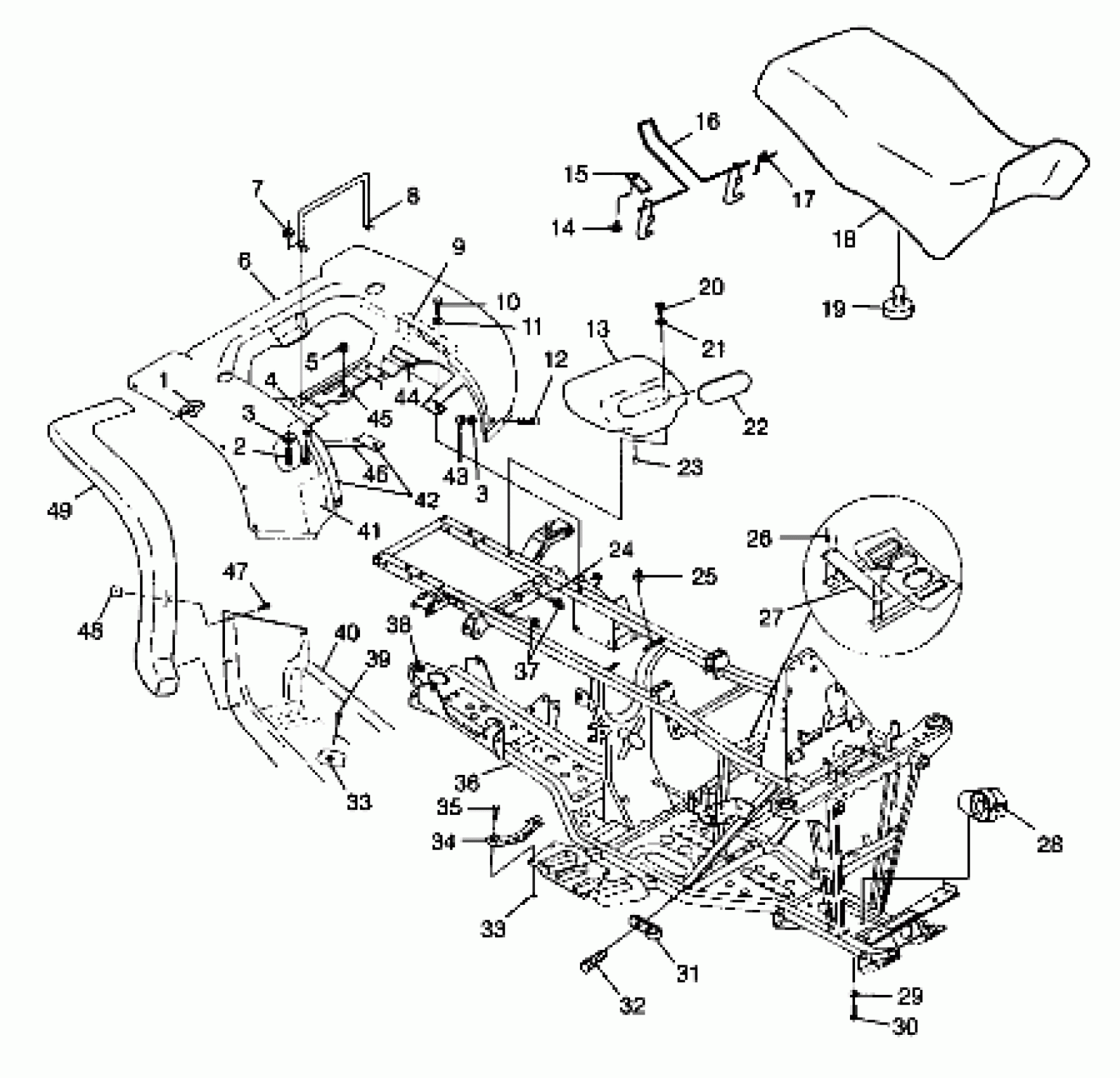

Polaris SPORTSMAN 500 - W98CH50AB REAR CAB and SEAT - W98CH50AB (4945714571a005) Diagram

#

Description
Price

1

RIVET(50)

7661645

$3.99

2

SCREW(10)

7511930

$2.39

3

WASHER(10)

7555792

$4.79

3

WASHER(10)

7555792

$4.79

4

FOIL,REAR CAB,REAR

5811107

$6.46

5

Grommet

5411042

Unavailable

6

CAB,REAR,GEN 4,P.RED (W98CH50AB)

5432117-136

Unavailable

6

CAB,REAR,GEN 4,OLV.GRN. (W98CH50A)

5432117-191

Unavailable

7

NUT(10)

7541925

$1.49

8

RETAINER,SEAT LATCH

5224592

Unavailable

9

FOIL,TAPE,3 X 12

5811308

$12.79

10

SCREW(10)

7512242

$2.39

11

WASHER, FLAT(10)

7555859

$1.49

12

SCREW(10) Substituted by 7511989

7512085

Unavailable

13

TOOLBOX

5431786

$53.59

14

BLIND RIVET(50)

7621403

$1.49

15

BRACKET,LEVER RETAINER

5211033

$29.25

16

LATCH,SEAT

1040387

$47.99

17

SPRING, LATCH

7041370

$9.59

18

COVER,SEAT,BLK.

2681747-070

$141.65

18

FOIL,SEATBASE,LG.

5811104

Unavailable

18

FOIL,SEATBASE,SM.

5811105

$9.91

18

SEAT ASM,BLACK Substituted by 2682441-070

2682360-070

$424.98

19

Bumper, Rubber

5410414

$3.19

20

SCR-1/4-20X.88,HXWR TAPR,GR5,Y

7517312

$1.49

21

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

22

COVER, TOOLBOX

5431787

Unavailable

23

CAP,DRAIN

5410896

$5.59

24

FITTING,VENT,1/8"

7052192

Unavailable

25

NUT-WELL(10)

7541923

$5.59

26

RIVET,INTERLOCK,B(50)

7661638

$1.49

27

GUARD-CLUTCH, BLK

5241403-067

Unavailable

28

Asm., Gearcase (See Footnote) (See Gearcase (Internal Components) Pg. D2 for Details)

-------

Unavailable

29

WASHER(10)

7552603

$1.49

30

BOLT(10) Substituted by 7512492

7515458

Unavailable

31

CLAMP,HOSE,1",NYLON

7080653

$4.79

32

SCREW,(10)

7512024

$4.79

33

NUT-LOCK(10)

7542122

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

SPACER,FOOTWELL

5432280

$8.79

35

SCREW

7517377

$4.79

36

FRAME,MAIN,BLK

1040439-067

Unavailable

37

GROMMET

5410770

Unavailable

38

DECAL,HITCH Substituted by 7078261

7077542

Unavailable

39

SCREW Substituted by 7512279

7517376

Unavailable

40

FOOTWELL,LH,BLK,NYLON

5432221-070

$230.70

40

FOOTWELL,RH,BLK,NYLON Substituted by 5433219-070

5432118-070

$230.70

41

FOIL FOAM

5811111

$32.37

42

FOIL,FR,REAR CAB

5811106

$8.89

43

NUT, LOCK(10) Substituted by 7541925

7541929

Unavailable

44

DECAL,CARB.INFO.

7073761

Unavailable

45

DECAL,FILT.ELEMENT,4-S

7077446

Unavailable

46

FOIL-FOAM,(6X1)

5811087

Unavailable

47

BOLT(10)

7512232

$1.49

48

NUT, SPEED(10)

7670057

$1.49

49

MUDGUARD,LH,R.BLK. Substituted by 5431796-070

5431796

Unavailable

49

MUDGUARD,RH,R.BLK. Substituted by 5431797-070

5431797

Unavailable
