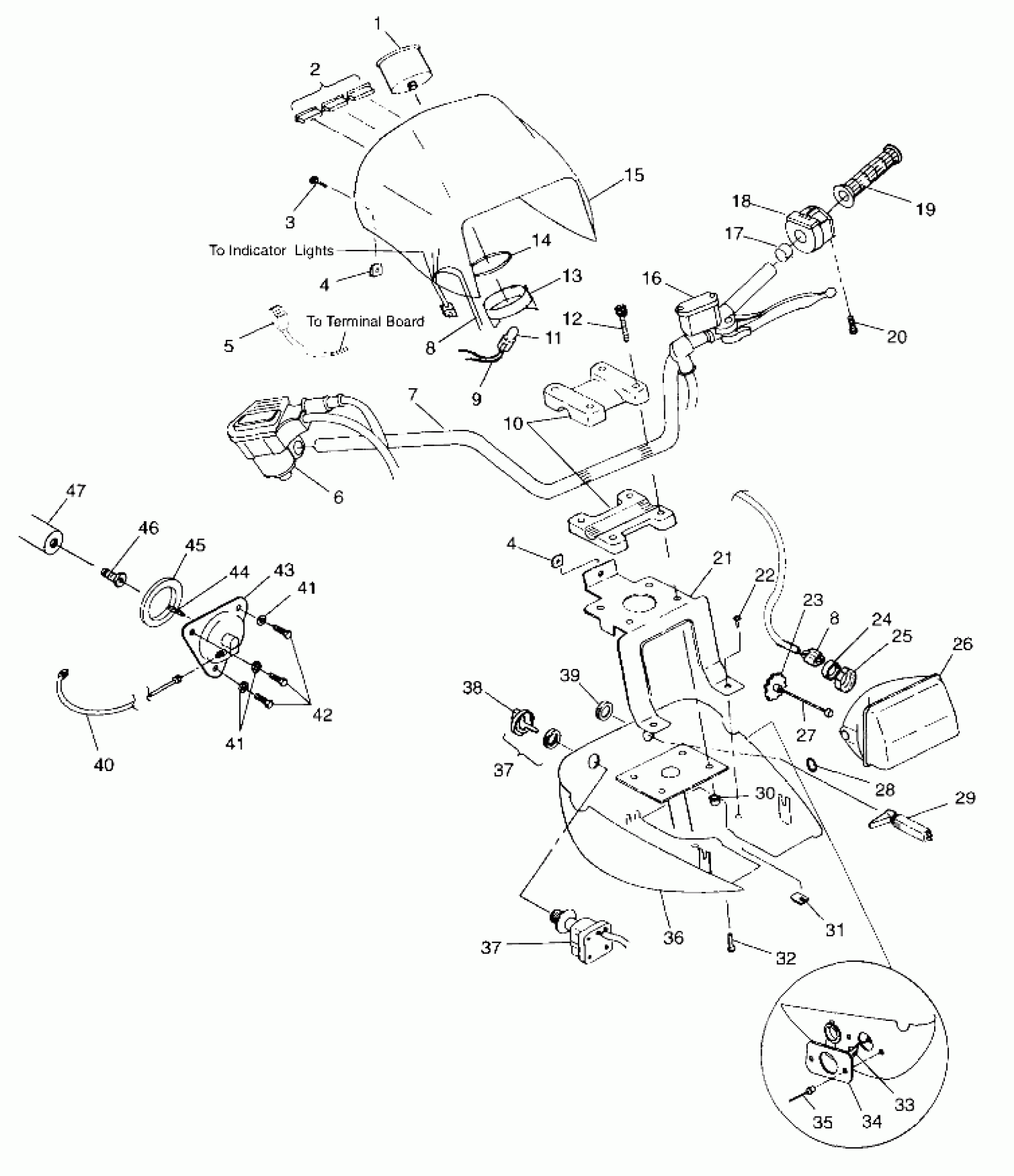

Polaris SPORTSMAN 500 - W98CH50AB HANDLEBAR and HEADLIGHT POD - W98CH50A (4945714571b013) Diagram

#

Description
Price

1

SPEEDO.ASM, 3" Substituted by 3280326 (Incl. 13,14)

3280172

$237.30

2

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,WIRE,INDIC,LOW.

2460574

$62.39

6

ASM., THROTTLE CONTROL (See Pg. B10 Ref. 5)

-------

Unavailable

7

TUBE,H'BAR,BLK. Substituted by 5242987-067

5224607-067

$114.99

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

8

HARNESS,WIRE,INDIC,UP.

2460573

Unavailable

9

HARNESS, SPEEDO

2460387

Unavailable

10

KIT,H'BAR BLOCK (Incl. Blocks &10,12,29)

2200774

Unavailable

10

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

11

BULB TAILLIGHT(10)

4030015

$4.03

12

SCREW(10)

7515188

$2.39

13

CLAMP,BACK,SPEEDO.

3280175

Unavailable

14

GASKET,SHOCK MT.

3280174

$9.11

15

POD,H/L,UP,OLV.GRN. (Option 1)

5431812-191

Unavailable

15

POD,H/L,UP.,RED (Option 2)

5431812-136

Unavailable

16

ASM., MASTER CYLINDER (See Pg. B11 for details)

-------

Unavailable

17

Spacer, Plastic

5433198

Unavailable

18

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

19

GRIP, HANDLEBAR

5431030

$24.27

20

SCREW

2010055

Unavailable

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

SCREW(10)

7522021

$3.99

33

HARNESS,12V OUTLET

2460471

Unavailable

34

POWERPLUG ASM,12V

2410025

Unavailable

35

RIVET(50)

7621334

$1.49

36

POD,H/L.LOW.BLK Substituted by 5433366-070

5432314-070

$93.08

37

SWITCH, IGNITION (Incl. Key) (See Footnote)

4110194

Unavailable

37

SWITCH, IGNITION (Incl. Key) (See Footnote)

4110194

Unavailable

38

COVER, KEY Substituted by 5433534

5431964

Unavailable

39

Nut

7080229

$19.99

40

CABLE,SPEEDO,(ATV)

3280236

Unavailable

41

WASHER(10)

7555725

Unavailable

41

WASHER(10)

7555725

Unavailable

42

BOLT(10)

7515378

$1.98

43

ADAPTOR, DRIVE (See Pg. D3, Ref. 5)

-------

Unavailable

44

KEY, SPEEDOMETER (See Pg. D3, Ref. 6)

-------

Unavailable

45

SEAL (See Pg. D3, Ref. 7)

-------

Unavailable

46

BUSHING, SPEEDOMETER DRIVE (See Pg. D2, Ref. 34)

-------

Unavailable

47

SHAFT, OUTPUT, FRONT HOUSING (See Pg. C13, Ref. 21)

-------

Unavailable
