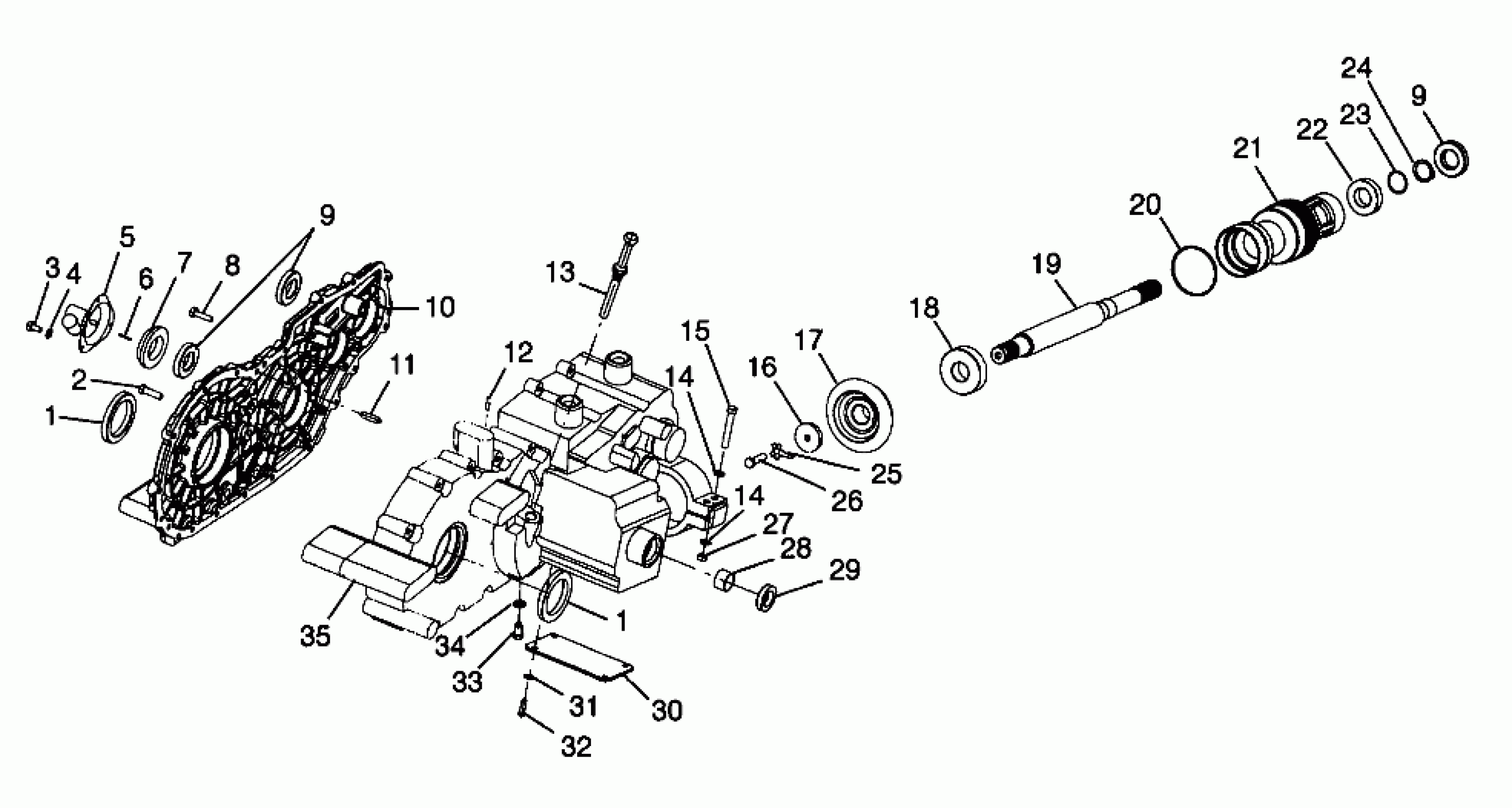

Polaris SPORTSMAN 500 - W98CH50AB GEARCASE (Cases and Snorkel) - W98CH50AB (4945714571d003) Diagram

#

Description
Price

-

Asm., Gearcase (See Footnote) (See Gearcase (Internal Components Page D2 for Details)

-------

Unavailable

1

Seal

3233256

Unavailable

1

Seal

3233256

Unavailable

2

Screw

3233252

$5.27

3

BOLT(10)

7515378

$1.98

4

WASHER(10)

7555725

Unavailable

5

ADAPTER,DRIVE(1:1.2)

3280219

Unavailable

6

KEY,SPEEDO.DRIVE

3280217

Unavailable

7

SEAL,ANGLE DRIVE

3280164

Unavailable

8

Screw

3233026

$6.46

8

NUT,FLEXLOCK

3233289

$9.59

9

Seal

3233248

$30.88

9

Seal

3233248

$30.88

10

GEARCASE,LH

3233473

Unavailable

11

PIN, DOWEL

3233247

$7.19

12

Vent

3233037

Unavailable

13

Dipstick

3233475

Unavailable

14

Washer (See Pg. D2, Ref. 10)

-------

Unavailable

14

Washer (See Pg. D2, Ref. 10)

-------

Unavailable

15

BOLT

3233442

$2.23

16

Washer

3233352

$1.83

17

GEAR,31T,SNORKEL

3233476

Unavailable

18

Ball Bearing (See Pg. D2, Ref. 35)

-------

Unavailable

19

SHAFT,SNORKEL

3233446

Unavailable

20

O-Ring

3233302

Unavailable

21

SNORKEL

3233303

Unavailable

22

BEARING,BALL

3233305

$31.99

23

SPACER (1.180x.995x.008) (See Footnote) NOTE: Ref. 23 indicates choices, may also be used in combinations.

3233357

$21.99

23

SPACER (1.180x.995x.040)

3233355

$2.63

23

SPACER (1.180x.995x.010)

3233353

$2.55

23

SPACER (1.180x.995x.025)

3233354

$2.55

23

SPACER (1.180x.995x.005)

3233356

$2.62

24

RING,RETAINING

3233306

$4.79

25

BOLT,LOCK SNORKEL GEAR

3233444

$2.39

26

Bolt

3233351

$1.99

27

NUT,FLEXLOCK

3233291

$3.03

28

Bushing

3233292

$31.99

29

Seal

3233293

Unavailable

30

PLATE,COVER

3233294

$11.59

31

WASHER,LOCK

3233295

$1.99

32

Screw

3233296

Unavailable

33

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

34

PLUG, WASHER

3233254

$7.99

35

GEARCASE,RH

3233487

Unavailable
