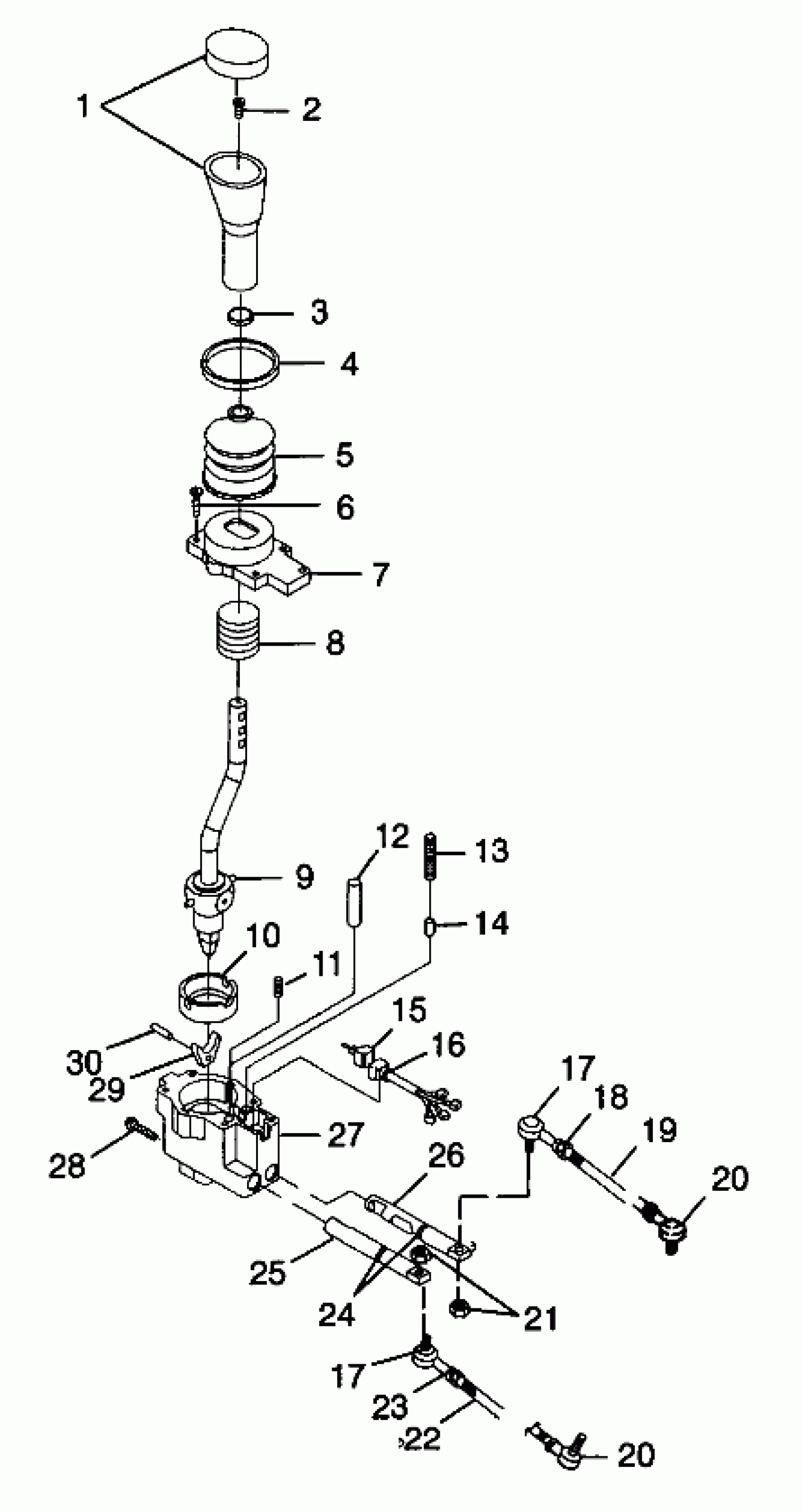

Polaris SPORTSMAN 500 - W98CH50AB GEAR SELECTOR - W98CH50A (4945714571c014) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR,500,LT (Incl. 1-16,24-27,29,30)

1341215

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

SCREW,MAGNIGARD COATED

3233498

Unavailable

7

COVER,GEAR SELECTOR

3233213

Unavailable

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE SUBASM,(GS MAGNUM)

3233227

Unavailable

10

CUP,BEARING

3233063

$15.99

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEARSELECT,DATA Substituted by 3233209

3233208

$309.99

16

STRAP, WIRE

3233090

$2.86

17

ROD END,RH,6MM.

7061014

$65.99

17

ROD END,RH,6MM.

7061014

$65.99

18

NUT(10)

7546702

$1.49

19

ROD-SHIFT LINKAGE,HI RANGE

5020823

$63.99

20

ROD END,LH,6MM.

7061013

$65.99

20

ROD END,LH,6MM.

7061013

$65.99

21

NUT(10) Substituted by 7546703

7546707

Unavailable

22

ROD,SHIFT LINKAGE,LOW RANGE

5020824

$63.99

23

NUT(10)

7546701

$3.99

24

O-RING

3233076

$6.39

25

SLIDE,LOW

3233500

Unavailable

26

SLIDE,HIGH/REV

3233499

Unavailable

27

BODY,GEAR SELECTOR

3233343

Unavailable

28

SCREW(10)

7515181

$2.39

29

INTERLOCK,BUTTERFLY

3233084

Unavailable

30

PIN,INTERLOCK

3233070

Unavailable
